Access steps with landing

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents
main product photo

Details

Stationary access to buildings and machines with platforms.

  • Different angles of inclination: 45° for comfortable access, 60° for confined spaces.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Steel gratings (R12) and perforated steel plates (R13) are also available for higher non-slip performance.
  • Individually adjustable platform lengths.
  • Support section mounting element for use as a free-standing work platform.
  • Customised guardrail configuration on the platform, with optional swing door or pole barrier.

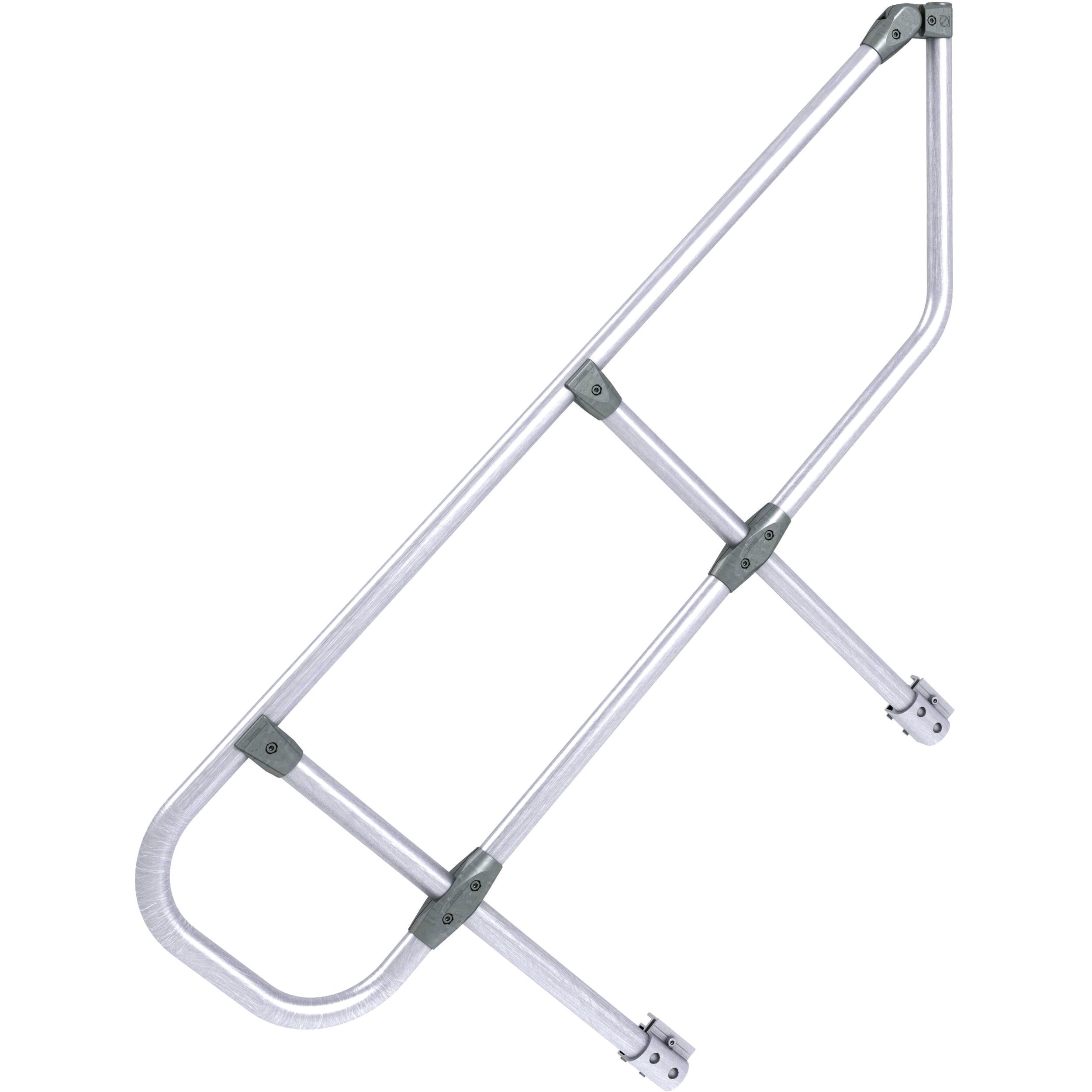

  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Stiles made from high-strength aluminium extrusions with screw channels for flexible assembly options.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40155424 45 ° 5 1810 mm 600 mm 1070 mm
40155426 45 ° 7 2240 mm 600 mm 1500 mm
40155428 45 ° 9 2645 mm 600 mm 1930 mm
40155430 45 ° 11 3100 mm 600 mm 2360 mm
40155432 45 ° 13 3511 mm 600 mm 2790 mm
40155434 45 ° 15 3940 mm 600 mm 3220 mm
40155436 45 ° 17 4371 mm 600 mm 3650 mm
40155438 45 ° 19 4780 mm 600 mm 4080 mm
40155444 45 ° 5 1810 mm 800 mm 1070 mm
40155446 45 ° 7 2240 mm 800 mm 1500 mm
40155448 45 ° 9 2645 mm 800 mm 1930 mm
40155450 45 ° 11 3100 mm 800 mm 2360 mm
40155452 45 ° 13 3511 mm 800 mm 2790 mm
40155454 45 ° 15 3940 mm 800 mm 3220 mm
40155456 45 ° 17 4371 mm 800 mm 3650 mm
40155458 45 ° 19 4780 mm 800 mm 4080 mm
40155464 45 ° 5 1728 mm 1000 mm 1070 mm
40155466 45 ° 7 2158 mm 1000 mm 1500 mm
40155468 45 ° 9 2645 mm 1000 mm 1930 mm
40155470 45 ° 11 3018 mm 1000 mm 2360 mm
40155472 45 ° 13 3511 mm 1000 mm 2790 mm
40155474 45 ° 15 3940 mm 1000 mm 3220 mm
40155476 45 ° 17 4371 mm 1000 mm 3650 mm
40155478 45 ° 19 4780 mm 1000 mm 4080 mm
40155364 60 ° 5 1398 mm 600 mm 1250 mm
40155366 60 ° 7 1687 mm 600 mm 1750 mm
40155368 60 ° 9 1975 mm 600 mm 2250 mm
40155370 60 ° 11 2264 mm 600 mm 2750 mm
40155372 60 ° 13 2553 mm 600 mm 3250 mm
40155374 60 ° 15 2841 mm 600 mm 3750 mm
40155376 60 ° 17 3180 mm 600 mm 4250 mm
40155378 60 ° 19 3468 mm 600 mm 4750 mm
40155384 60 ° 5 1398 mm 800 mm 1250 mm
40155386 60 ° 7 1687 mm 800 mm 1750 mm
40155388 60 ° 9 1975 mm 800 mm 2250 mm
40155390 60 ° 11 2314 mm 800 mm 2750 mm
40155392 60 ° 13 2602 mm 800 mm 3250 mm
40155394 60 ° 15 2841 mm 800 mm 3750 mm
40155396 60 ° 17 3180 mm 800 mm 4250 mm
40155398 60 ° 19 3468 mm 800 mm 4750 mm
40155404 60 ° 5 1975 mm 1000 mm 1250 mm
40155406 60 ° 7 2264 mm 1000 mm 1750 mm
40155408 60 ° 9 2553 mm 1000 mm 2250 mm
40155410 60 ° 11 2314 mm 1000 mm 2750 mm
40155412 60 ° 13 2602 mm 1000 mm 3250 mm
40155414 60 ° 15 2841 mm 1000 mm 3750 mm
40155416 60 ° 17 3180 mm 1000 mm 4250 mm
40155418 60 ° 19 3468 mm 1000 mm 4750 mm
