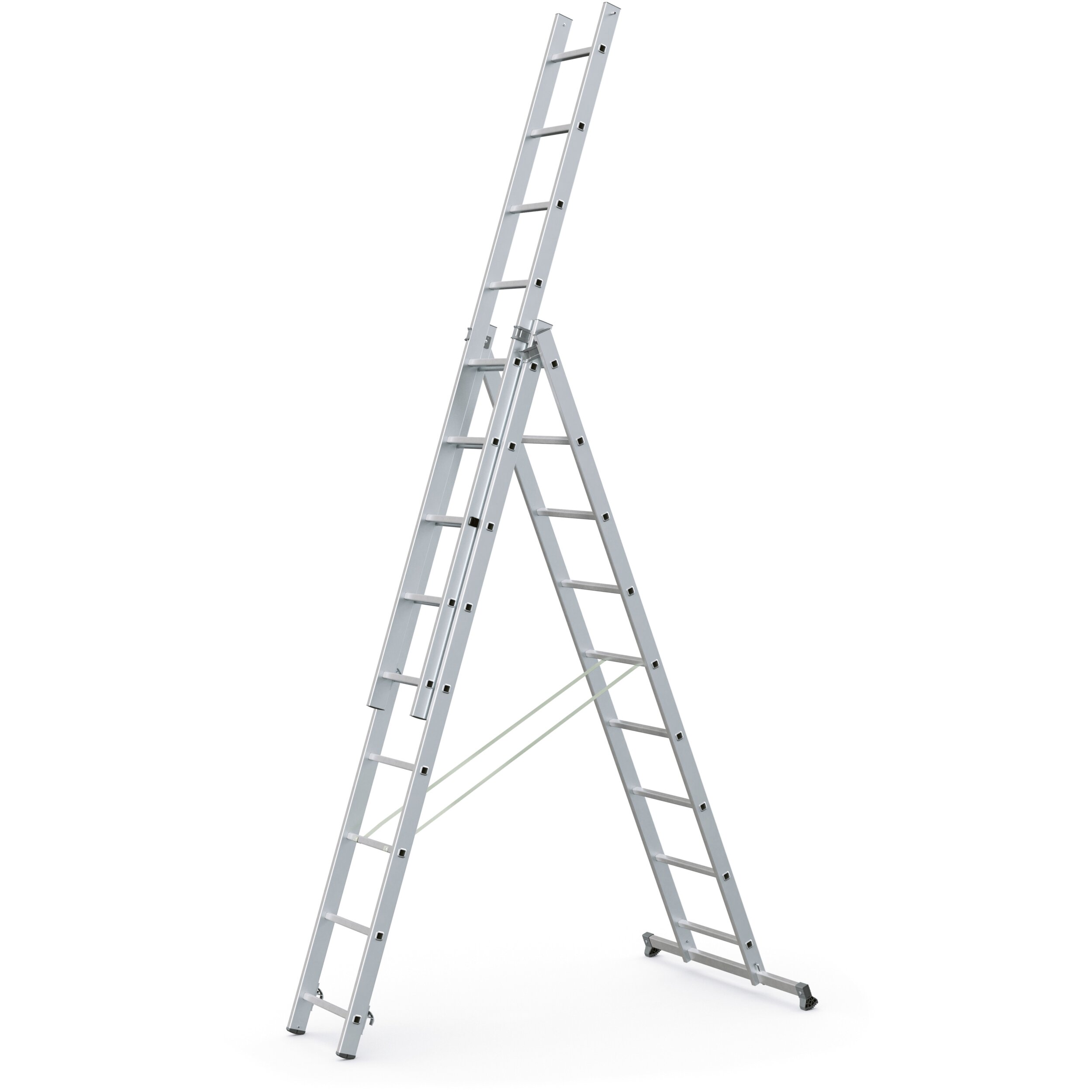

Combination ladder, 3 sections

Details

Our base model: lightweight and yet robust.

  • High-quality flange connection between rungs and stiles.
  • Stiles made from extruded aluminium sections for maximum stability.
  • High-strength Perlon straps prevent splay.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 24 mm
Load max. 150 kg
Material aluminium
Vertical distance between each rung/tread 265 mm
Type of rungs/treads serrated

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Number of rungs Overall length, retracted Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
48980 4 m 2,53 m 7 3 × 7 2,04 m approx. 2.038 mm × approx. 460 mm × approx. 135 mm 9,9 kg 0,74 m max. approx. 4,8 m
48981 5,12 m 3,37 m 8 3 × 8 2,32 m approx. 2.318 mm × approx. 460 mm × approx. 180 mm 13,3 kg 0,88 m max. approx. 5,9 m
48982 5,96 m 3,93 m 9 3 × 9 2,6 m approx. 2.598 mm × approx. 460 mm × approx. 190 mm 14,9 kg 0,99 m max. approx. 6,7 m
48983 6,52 m 4,49 m 10 3 × 10 2,88 m approx. 2.878 mm × approx. 460 mm × approx. 200 mm 16,9 kg 0,99 m max. approx. 7,2 m
48984 6,8 m 4,77 m 11 3 × 11 3,16 m approx. 3.158 mm × approx. 460 mm × approx. 220 mm 20,1 kg 1,2 m max. approx. 7,5 m
