Mobile access steps with platform, double-sided access, with steel open-grid treads and platform

Details

The flexible solution for wet-room applications, with open-grid treads for improved non-slip performance.

  • The flexible solution for wet-room applications, with open-grid treads for improved non-slip performance.
  • Quick and easy assembly thanks to the new connecting elements.

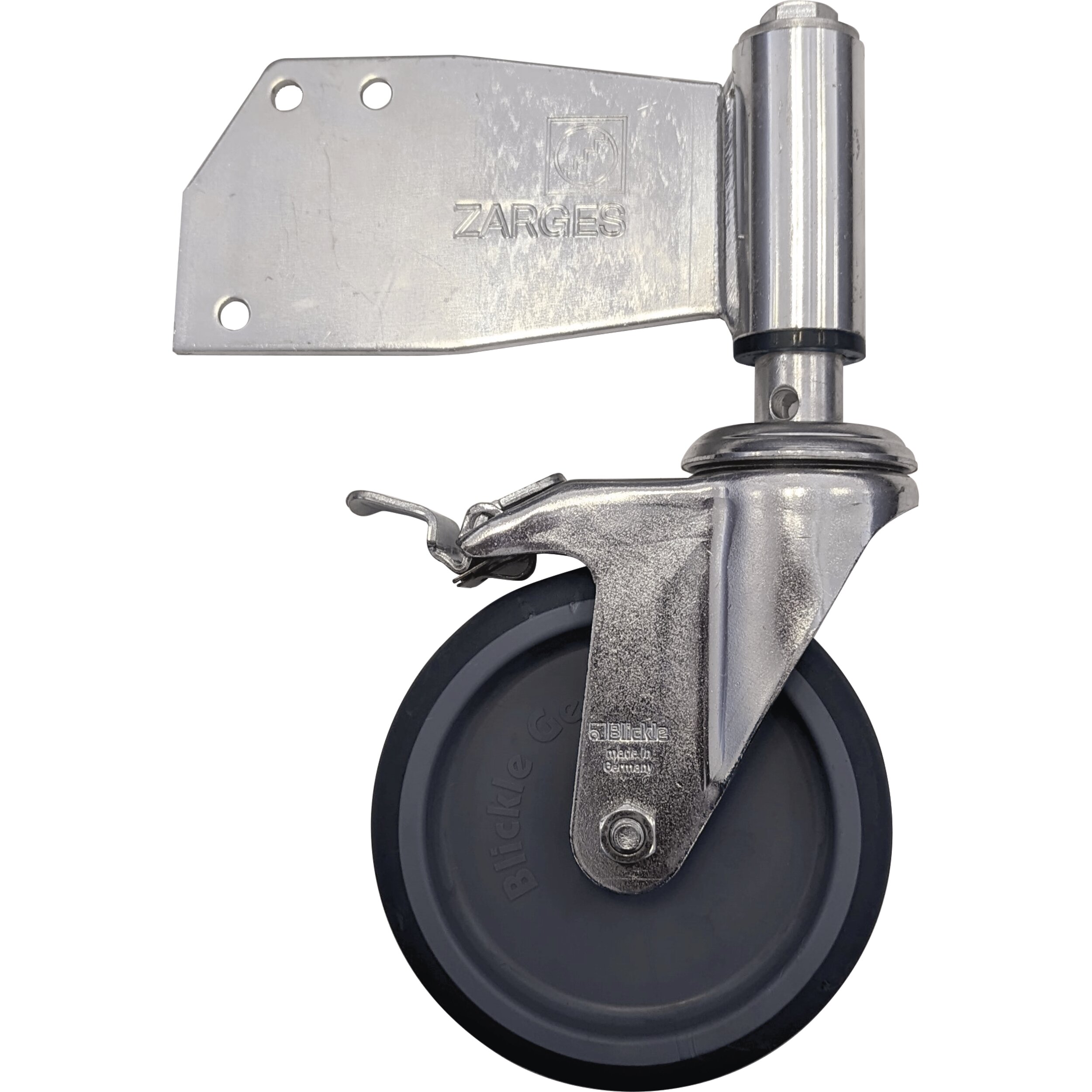

  • Mobile and quick to set up with four sprung swivel castors (two of which have brakes).
  • Maximum safety through double-sided platform guardrail at a height of 1.00 m.
  • Comfortable ascent thanks to 200 mm deep treads.
  • Large platform, 600 x 800 mm.
  • Maximum load 150 kg.

Hints and special features

  • Optional double-sided handrail in compliance with DIN EN 131-7 on the steps.
  • Complies with EN 131-7

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 800 mm
Platform width 600 mm
Load capacity max. 150 kg
Material Aluminum/steel, galvanised
Guardrail height 1000 mm
Coating natural
Connection between stiles and rungs/stiles welded
Tread depth 200 mm
Vertical distance between each rung/tread 240 mm
Type of rungs/treads Open-grid surface

Variants

Order number Base Number of rungs, incl. platform Number of treads Platform height Transport dimensions Weight Working height
41962 0,82 m × 1,79 m 2 × 4 4 0,96 m 1.960 mm × 830 mm × 300 mm 59,2 kg 2,95 m
41963 0,87 m × 2,06 m 2 × 5 5 1,2 m 1.850 mm × 890 mm × 460 mm 70,1 kg 3,2 m
41964 0,93 m × 2,34 m 2 × 6 6 1,44 m 2.140 mm × 930 mm × 380 mm 80,7 kg 3,45 m
