Mobile access steps with platform, single-sided access, with steel open-grid treads and platform

Details

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.

  • Quick and easy assembly thanks to the new connecting elements.
  • Comfortable ascent thanks to 200 mm deep treads.
  • Large platform, 600 x 800 mm.

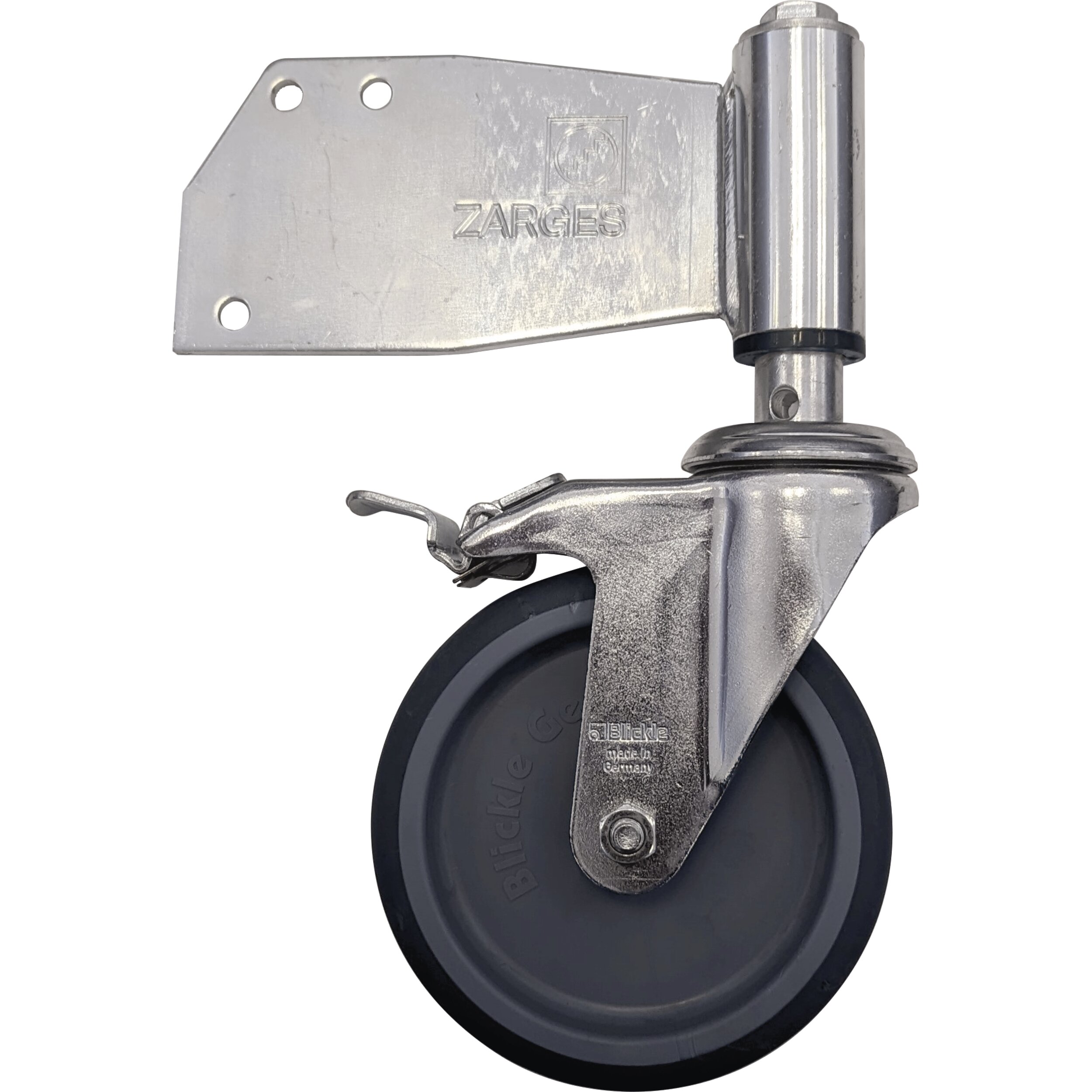

  • Mobile and quick to set up with four sprung swivel castors (two of which have brakes).
  • Maximum safety through platform guardrail at a height of 1.00 m on three sides.
  • Maximum load 150 kg.

Hints and special features

  • Optional double-sided handrail in compliance with DIN EN 131-7 on the steps.
  • Complies with EN 131-7

More Information

More Information
Guardrail height 1000 m
Platform width 600 mm
Platform length 800 mm
Coating natural
Connection between stiles and rungs/stiles welded
Tread depth 200 mm
Load max. 150 kg
Material Aluminum/steel, galvanised
Vertical distance between each rung/tread 240 mm
Type of rungs/treads Open-grid surface

Variants

Order number Base Number of rungs, incl. platform Platform height Transport dimensions Weight Working height
41951 0,77 m × 1,27 m 3 0,72 m 1.150 mm × 780 mm × 350 mm 41,5 kg 1,7 m
41952 0,82 m × 1,45 m 4 0,96 m 1.350 mm × 830 mm × 410 mm 47,5 kg 2,95 m
41953 0,87 m × 1,63 m 5 1,2 m 1.500 mm × 890 mm × 410 mm 53,6 kg 3,2 m
41954 0,93 m × 1,81 m 6 1,44 m 1.820 mm × 930 mm × 350 mm 59,7 kg 3,45 m
41955 0,98 m × 1,99 m 7 1,68 m 1.920 mm × 990 mm × 350 mm 66 kg 3,7 m
41956 1,03 m × 2,17 m 8 1,92 m 2.220 mm × 1.130 mm × 350 mm 72,9 kg 3,9 m
