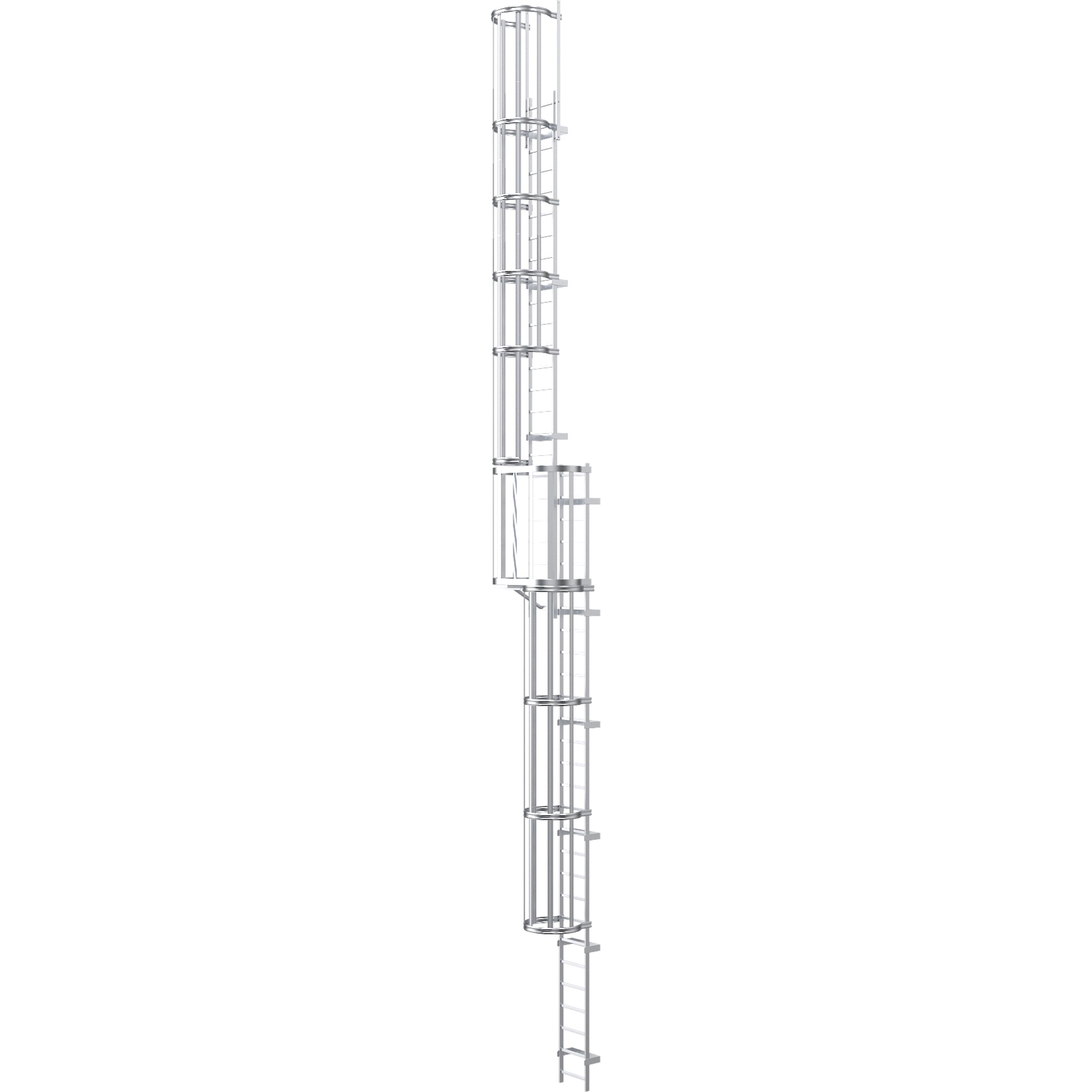

Multi-section fixed ladder systems, natural aluminium


Multi-section access solution with crossover platform for buildings and machinery.

  • For permanent mounting on buildings either for maintenance in accordance with DIN 18 799-1 or as an emergency ladder system in accordance with DIN 14 094-1 or as machine access steps in accordance with DIN EN ISO 14 122-4.
  • With safety cage.
  • Ladder width: 520 mm.
  • Wall brackets with various wall clearances of up to 600 mm can be selected.
  • The maximum permissible distance between two wall brackets is 2.00 m. But each ladder section must be mounted with at least two wall brackets.
  • Safety barriers, access protection and platforms can be selected to suit individual requirements.
  • We can also produce fixed-ladder designs that differ from the standard specification on request.

Hints and special features

  • Dowels and screws/bolts for wall mounting are not included in the scope of delivery.
  • The prices for double-section systems listed below are calculated as follows: Wall bracket in the form of a U-bar, 200 mm rigid, straight stile extensions on both sides, crossover platform, incl. back cage in accordance with DIN 18 799-1.In the case of other requirements, please use our planning system for fixed ladders.

More Information

More Information
Warranty 10 years


Order number Overall length incl. stile access height
58607 11,8 m 10,7 m
58618 12,9 m 11,8 m
58626 13,7 m 12,6 m
58638 14,9 m 13,8 m
58649 16 m 14,9 m
58657 16,8 m 15,7 m
58668 17,9 m 16,8 m
58680 19,1 m 18 m
58691 20,2 m 19,1 m
