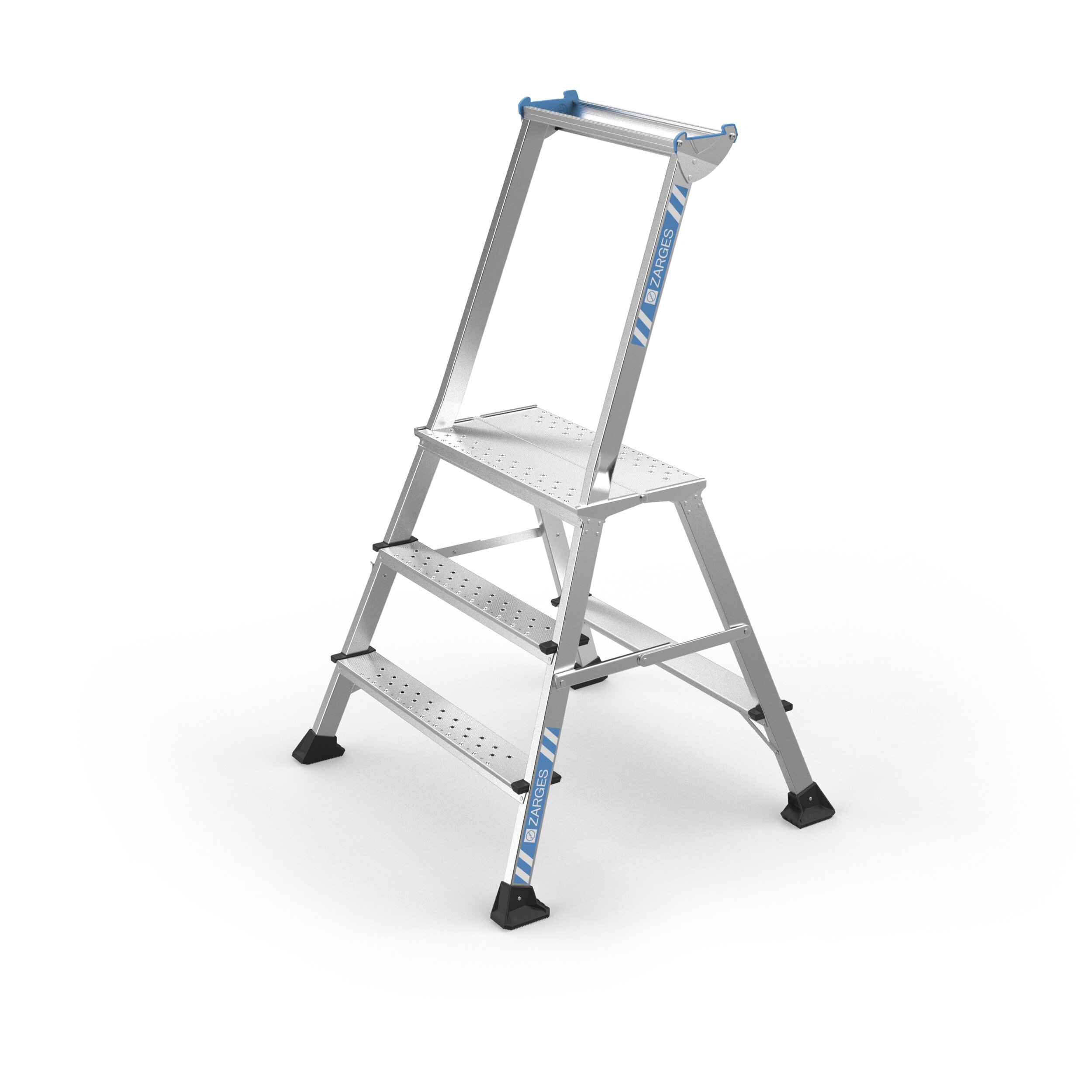

RCstep SP

Details

Treads and platform with a unique texture for maximum slip resistance (R13).
Platform size approx. 600 x 300 mm
Optimal stability thanks to a rigid connection on both sides with pressure reinforcement.
Extra-deep treads (92 mm) for comfortable and safe standing.
Single-sided access.
The specially shaped stiles enable full use of the entire platform area.
Extra-wide safety bar with a practical storage tray.
Clean hands thanks to wear-resistant anodised stiles.
New design - high-quality 2-component plastic ladder shoe - also suitable for working on gratings.

More Information
Product type	Work platform
Coating	anodised
Connection between stiles and rungs/stiles	riveted
Tread depth	92 mm
Platform length	300 mm
Storage tray	aluminium
Vertical distance between each rung/tread	250 mm
Type of rungs/treads	RC tread
Stile depth	48 mm
Warranty	10 years
Standards	EN 14183, AFS 2023:9, VNA205/2009
Platform width	600 mm
Material	Anodised aluminium
Load capacity	150 kg
Certification	TÜV-SÜD

Order number	Base	Number of rungs, incl. platform	Overall base width	Platform height	Transport dimensions	Weight	Working height
40278	0,82 m × 0,88 m	3	0,88 m	0,74 m	approx. 1.550 mm × approx. 880 mm × approx. 290 mm	8,4 kg	2,74 m
40279	1 m × 0,96 m	4	0,96 m	0,99 m	approx. 1.810 mm × approx. 960 mm × approx. 290 mm	9,6 kg	2,99 m
