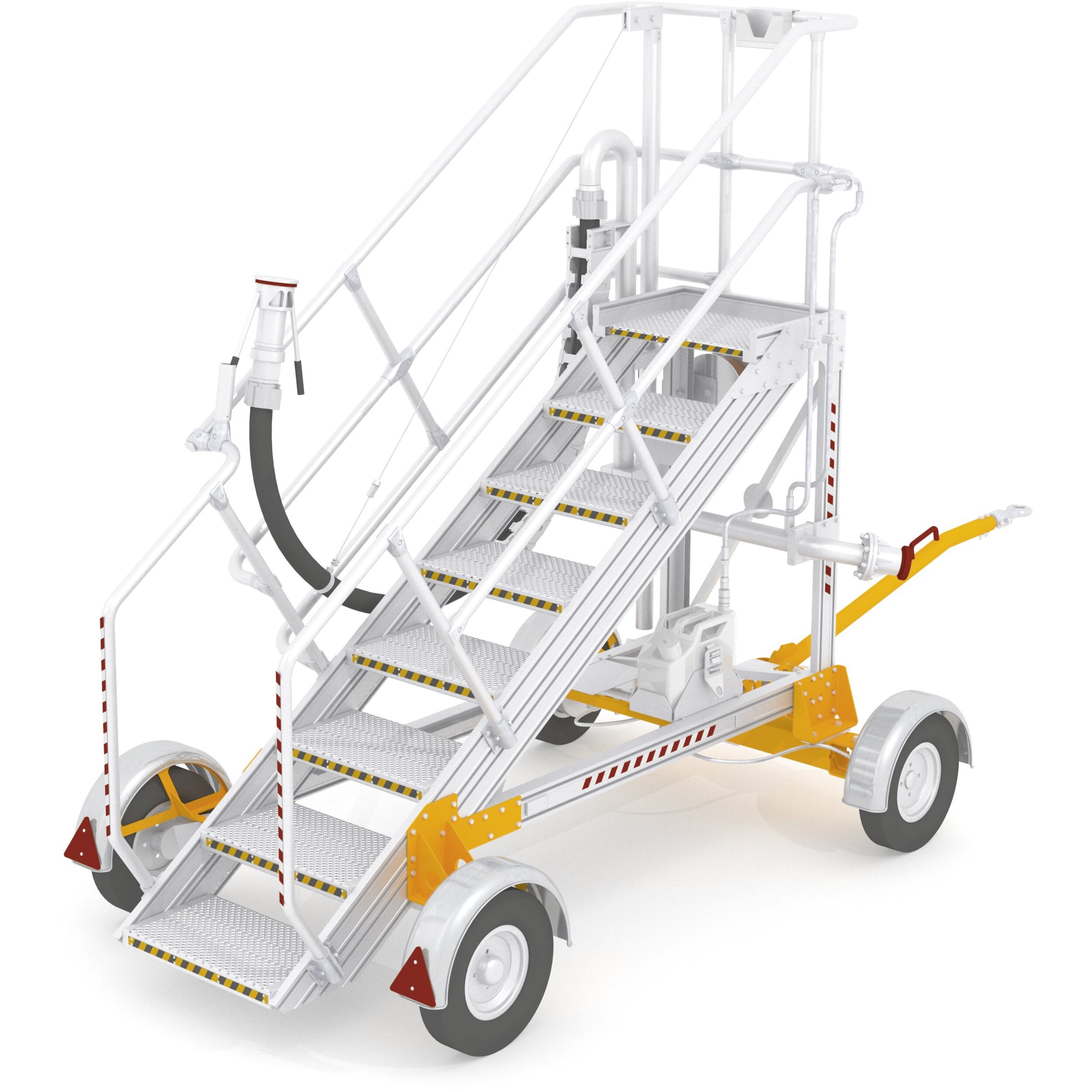

Two-axle fuelling platform without fuelling equipment


Thanks to its gentle ascent, the two-axle fuelling platform makes it possible to carry out refuelling from any tread.

  • Platform height: 1.60 metres
  • This product can be ordered with towing eye or ball coupling on its tow bar depending on the towing vehicle used.
  • This product allows personnel to work at heights from approx. 2.90 to 3.50 m.
  • A platform (450 x 650 mm) optimised for secure footing offers enough space for refuelling to be performed ergonomically.
  • The treads and platform are fitted with R13 anti-slip safety panels that allow water to drain easily, offering an extremely high level of safety.
  • The 415 mm pneumatic tyres in combination with a tow bar allow for towing speeds of up to 30 km/h.
  • Our platforms comply with the European standards EN 12312-5 and EN 1915-1.

Hints and special features

  • No fuelling equipment is included for this product variant. However, the same product is also available with fuelling equipment, either already or not yet primed.
  • Standards used:DIN EN 1915 - General requirementsPart 1 - Basic safety requirementsPart 2 - Stability and strength requirementsDIN EN 12312 - Aircraft ground support equipmentPart 5 - Aircraft fuelling equipmentPart 8 - Maintenance stairs and platforms
