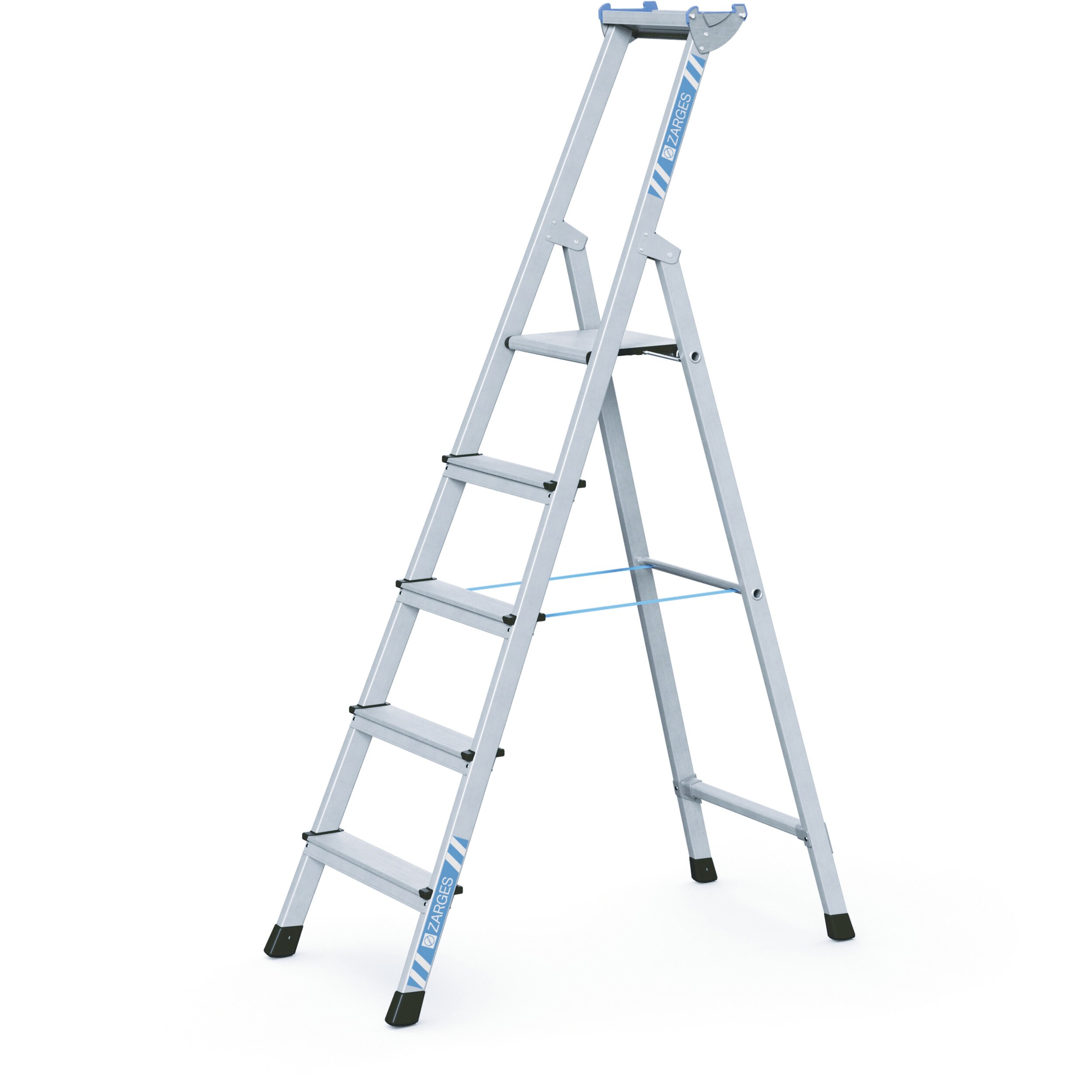

XLstep S

Details

Light weight and easy to handle, as well as great value.

Light weight and easy to handle, as well as great value.
Stand without fatigue on deep treads.
Large platform that allows personnel to stand safely and comfortably even when working for extended periods.
Stand without fatigue on 80 mm deep treads.
Wear-resistant, anodised stiles.
Platform made from extruded aluminium (300 mm × 250 mm) for safe and comfortable standing even when working for longer periods of time.
Spacious aluminium storage tray for material and tools.
High-strength Perlon straps prevent splay, from 4 treads.
Triple-riveted connection between rung and stile.
Non-slip plastic end caps.
Treads and stiles made from extruded aluminium sections.

More Information
Material	aluminium
Standards	EN 131 professional
Warranty	10 years
Platform length	250 mm
Platform width	300 mm
Load capacity	max. 150 kg
Anti-splay mechanism	Belt strap
Coating	anodised
Connection between stiles and rungs/stiles	riveted
Tread depth	80 mm
Storage tray	aluminium
Vertical distance between each rung/tread	250 mm
Product type	Riveted stepladder with treads
Type of rungs/treads	serrated
Stile depth	42 mm

Order number	Anti-splay mechanism	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Stile depth	Stile depth steps/back stay	Transport dimensions	Vertical ladder height	Weight	Working height
41223		0,74 m × 0,49 m	3	0,49 m	1,56 m	0,74 m	42 mm	42mm / 42mm	approx. 1.560 mm × approx. 490 mm × approx. 155 mm	1,42 m	6 kg	2,75 m
41224	Belt strap	0,91 m × 0,52 m	4	0,52 m	1,83 m	0,99 m	42 mm	42mm / 42mm	approx. 1.830 mm × approx. 520 mm × approx. 155 mm	1,67 m	6,9 kg	3 m
41225	Belt strap	1,08 m × 0,55 m	5	0,55 m	2,1 m	1,24 m	42 mm	42mm / 42mm	approx. 2.100 mm × approx. 550 mm × approx. 155 mm	1,92 m	7,7 kg	3,25 m
41226	Belt strap	1,25 m × 0,57 m	6	0,57 m	2,37 m	1,49 m	48 mm	48mm / 42mm	approx. 2.370 mm × approx. 570 mm × approx. 155 mm	2,17 m	9,1 kg	3,5 m
41227	Belt strap	1,42 m × 0,61 m	7	0,61 m	2,64 m	1,74 m	48 mm	48mm / 42mm	approx. 2.640 mm × approx. 610 mm × approx. 155 mm	2,42 m	10,2 kg	3,75 m
41228	Belt strap	1,59 m × 0,63 m	8	0,63 m	2,91 m	1,99 m	48 mm	48mm / 42mm	approx. 2.910 mm × approx. 630 mm × approx. 155 mm	2,67 m	11,7 kg	4 m
41230	Belt strap	1,93 m × 0,69 m	10	0,69 m	3,45 m	2,49 m	48 mm	48mm / 42mm	approx. 3.450 mm × approx. 690 mm × approx. 155 mm	3,17 m	14,1 kg	4,5 m
