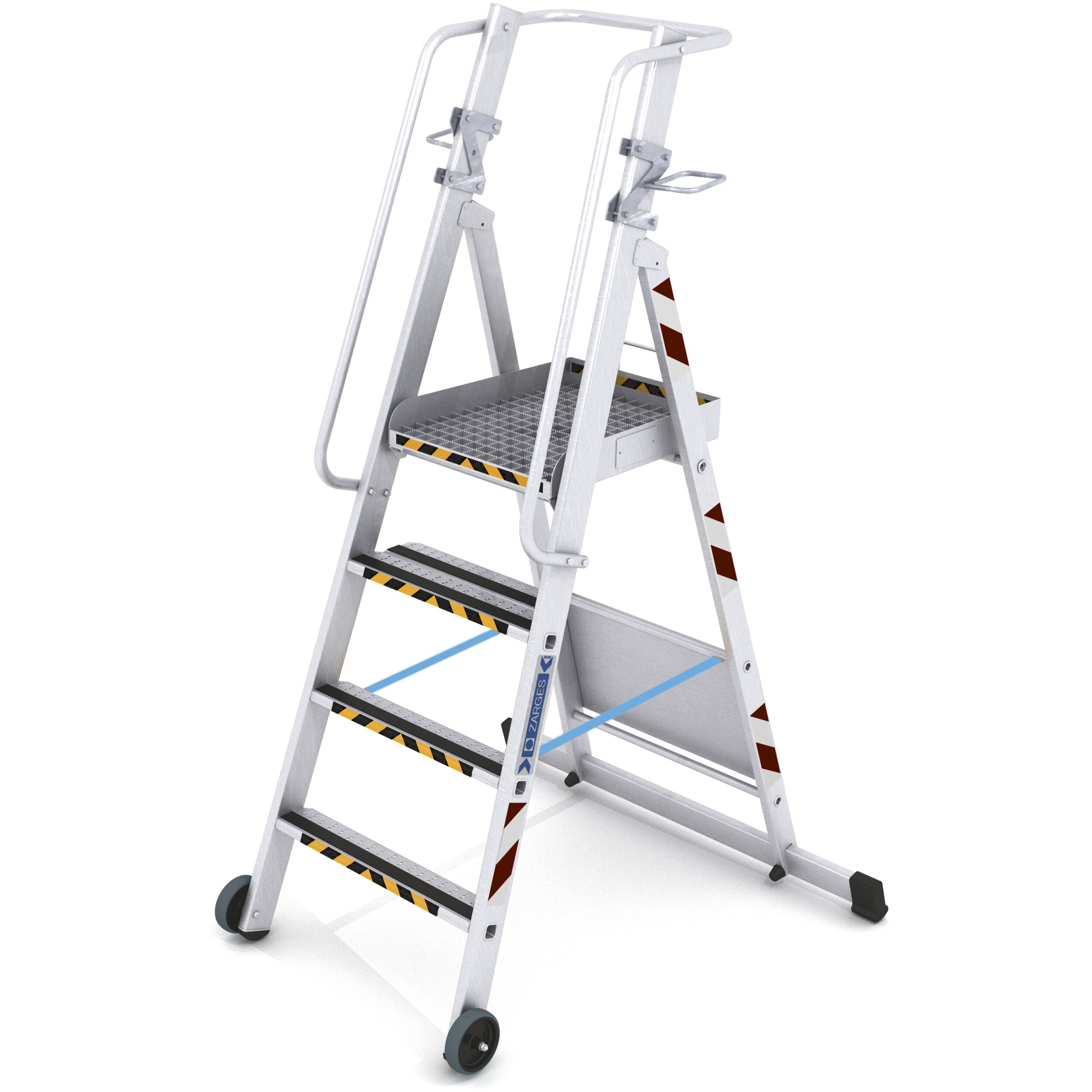

ZAP R13master S

Details

The universal platform ladder for any heavy-duty application! Or specifically as a refuelling ladder.

  • The universal platform ladder for any heavy-duty application! Or specifically as a refuelling ladder.
  • Our ladder is equipped with two removable mounts for securely holding underwing refuelling nozzles on the ladder's access section.
  • The crossbar on the ladder's support section ensures stability.
  • The spacious platform (450 x 500 mm), made of steel grating with a slip resistance rating of R13, ensures maximum stability.
  • Two electrically conductive rollers on the riser provide a simple method for moving the conductors.
  • 80 mm deep treads with R13 tread and grooves, as well as perforations to allow liquids to drain, for noticeably better traction in any situation.

More Information

More Information
Product type Flanged mobile platform ladder
Anti-splay mechanism Belt strap
Coating natural
Connection between stiles and rungs/stiles flanged
Type of rungs/treads R13 tread
Vertical distance between each rung/tread 265 mm
Tread depth 80 mm
non-static
Warranty 10 years
Stile depth 73 mm
Platform width 450 mm
Platform length 500 mm
Load capacity max. 150 kg
Material aluminium

Variants

Order number Number of rungs, incl. platform Overall base width Platform height Transport dimensions Weight Wide crosspiece Working height
40098 4 1100 mm 1,07 m 2.050 mm × 1.200 mm × 400 mm 17 kg 1,1 m 3 m
40099 5 1200 mm 1,35 m 2.350 mm × 1.250 mm × 400 mm 18 kg 1,2 m 3,35 m
40051 6 1200 mm 1,6 m 2.550 mm × 1.450 mm × 400 mm 20 kg 1,4 m 3,6 m
