De-icing platform: Second stair module

SKU: 43027

Details

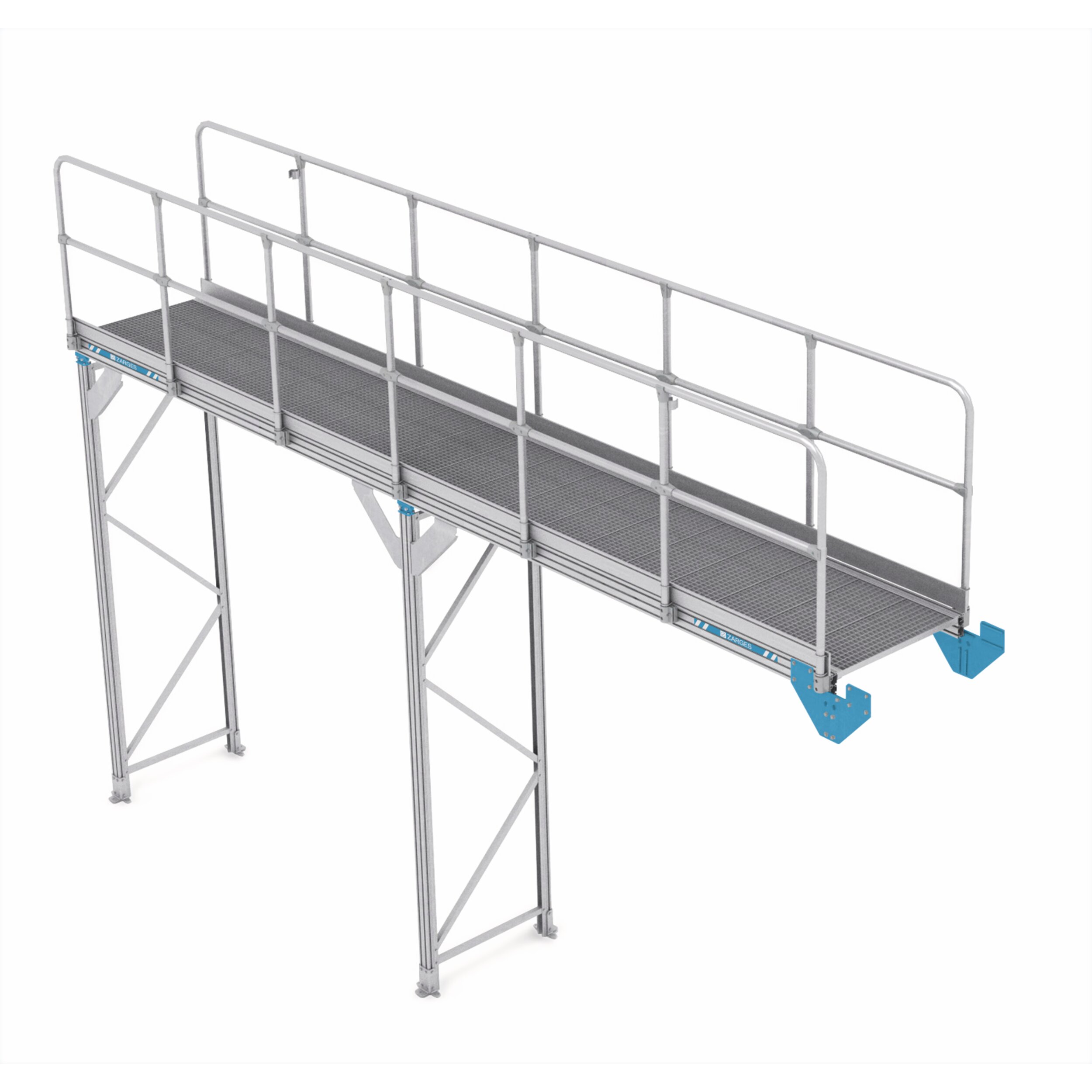

The extension modules for the ZARGES de-icing platform add a second access ladder to the platform.

  • The many different ways of combining the various modules make our de-icing platform exceptionally versatile. You can create the platform you want by simply combining several base modules with expansion modules as required.
  • Easy to construct thanks to its high level of pre-assembly.
  • Version with steel open-grid treads and platform.
  • The platform height of 3.0 metres allows work to be performed at approx. 4.80 metres.
  • The base module (item no. 43025) can be combined with an additional extension module (item no. 43026) to add 2 meters, or with item no. 43030 to add 6 meters. A second stair module (item no. 43027) is also available.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Warranty 10 years
Overall span 3091 mm
Tread width 800 mm
Platform height 3.000mm -
Platform width 800 mm
Version Zweites Treppenmodul
Load capacity max. 150 kg

Variants

Order number Load capacity Overall span Platform height Platform width Tread width Version
43026 - Extension module 2,000 mm
43027 max. 150 kg 3091 mm 3.000mm - 800 mm 800 mm Second stair module
43030 - Extension module 6,000 mm
