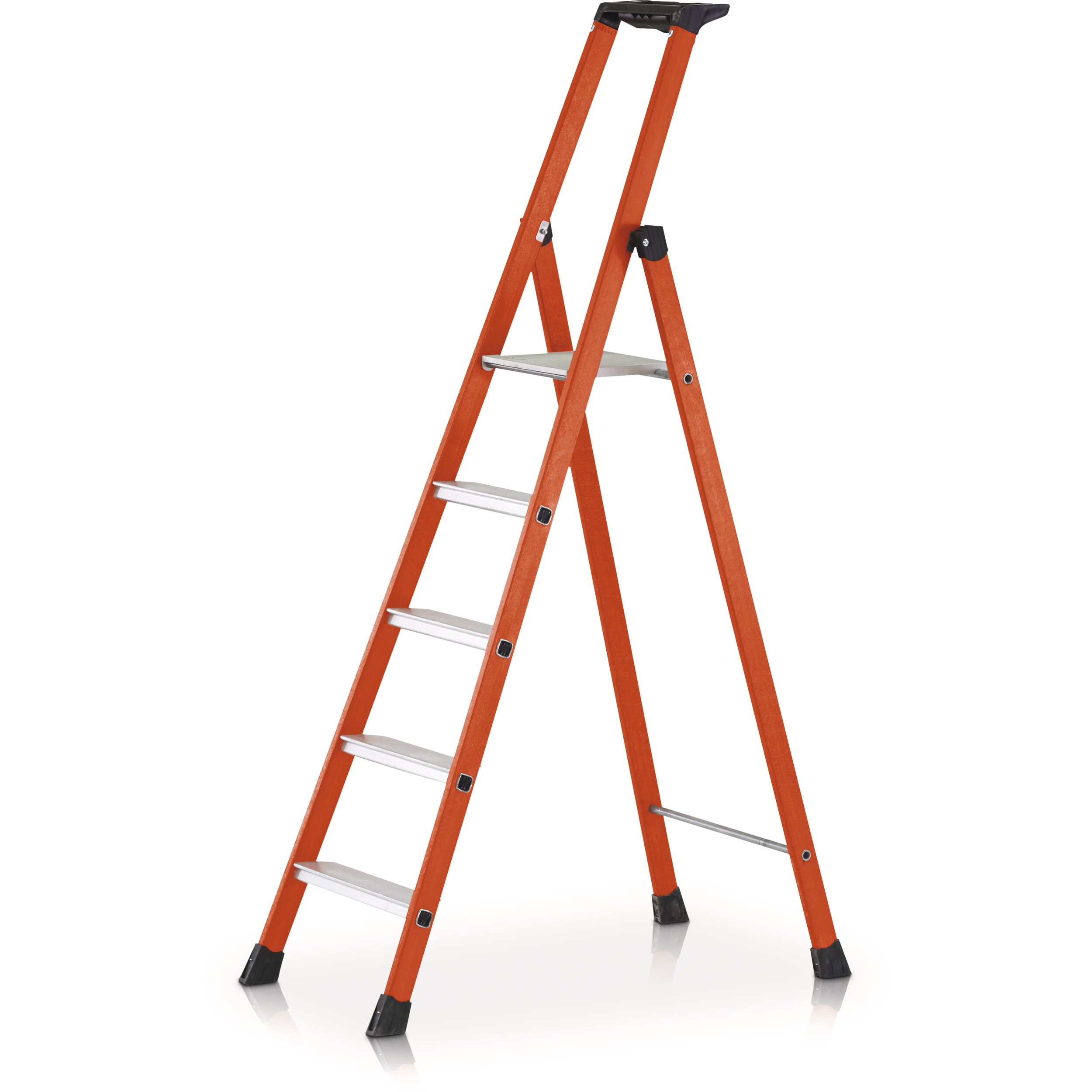

EFAmix S

SKU: 40433

Details

The solution for work in an electrical environment.

  • The solution for work in an electrical environment.
  • Suitable for working on electrical installations thanks to insulated stiles made from glass-fibre-reinforced plastic.
  • Meets the requirements of the high-voltage test for ladders made of insulting material in accordance with DIN EN 61 478.
  • Aluminium treads, 80 mm deep, with non-slip ribbing.
  • Safety platform (250 x 250 mm).
  • Safe storage of accessories and tools in plastic storage tray.
  • Only 88 mm wide when folded.
  • Treads made of aluminium extrusion.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Material Aluminium / plastic
Standards EN 131 professional
Warranty 10 years
Platform length 250 mm
Platform height 1.14 m
Load capacity max. 150 kg
Platform width 250 mm
Anti-splay mechanism Belt strap
Base 1,07 m × 0,57 m
Connection between stiles and rungs/stiles flanged
Tread depth 80 mm
Transport dimensions 1.890 mm × approx. 570 mm × 100 mm
Stile depth steps/back stay 50mm / 50mm
Working height 3.15 m
Overall length 1.9 m
Storage tray Plastic
Number of rungs, incl. platform 5
Vertical distance between each rung/tread 230 mm
Product type GRP composite stepladder with treads
Type of rungs/treads serrated
Weight 8 kg
Overall base width 0.57 m
Stile depth 50 mm
Stile depth 50 mm
length-area-base-td-met 1.07 m
width-area-base-td-met 0.57 m

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
40431 0,75 m × 0,52 m 3 0,52 m 1,4 m 0,68 m 1.390 mm × approx. 520 mm × 100 mm 6 kg 2,7 m
40432 0,91 m × 0,55 m 4 0,55 m 1,65 m 0,91 m 1.640 mm × approx. 550 mm × 100 mm 7 kg 2,9 m
40433 1,07 m × 0,57 m 5 0,57 m 1,9 m 1,14 m 1.890 mm × approx. 570 mm × 100 mm 8 kg 3,15 m
40434 1,24 m × 0,6 m 6 0,6 m 2,15 m 1,37 m 2.140 mm × approx. 600 mm × 100 mm 9 kg 3,35 m
40435 1,4 m × 0,62 m 7 0,62 m 2,4 m 1,6 m 2.390 mm × approx. 620 mm × 100 mm 10 kg 3,6 m
