GRP platform ladder

SKU: 300810

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

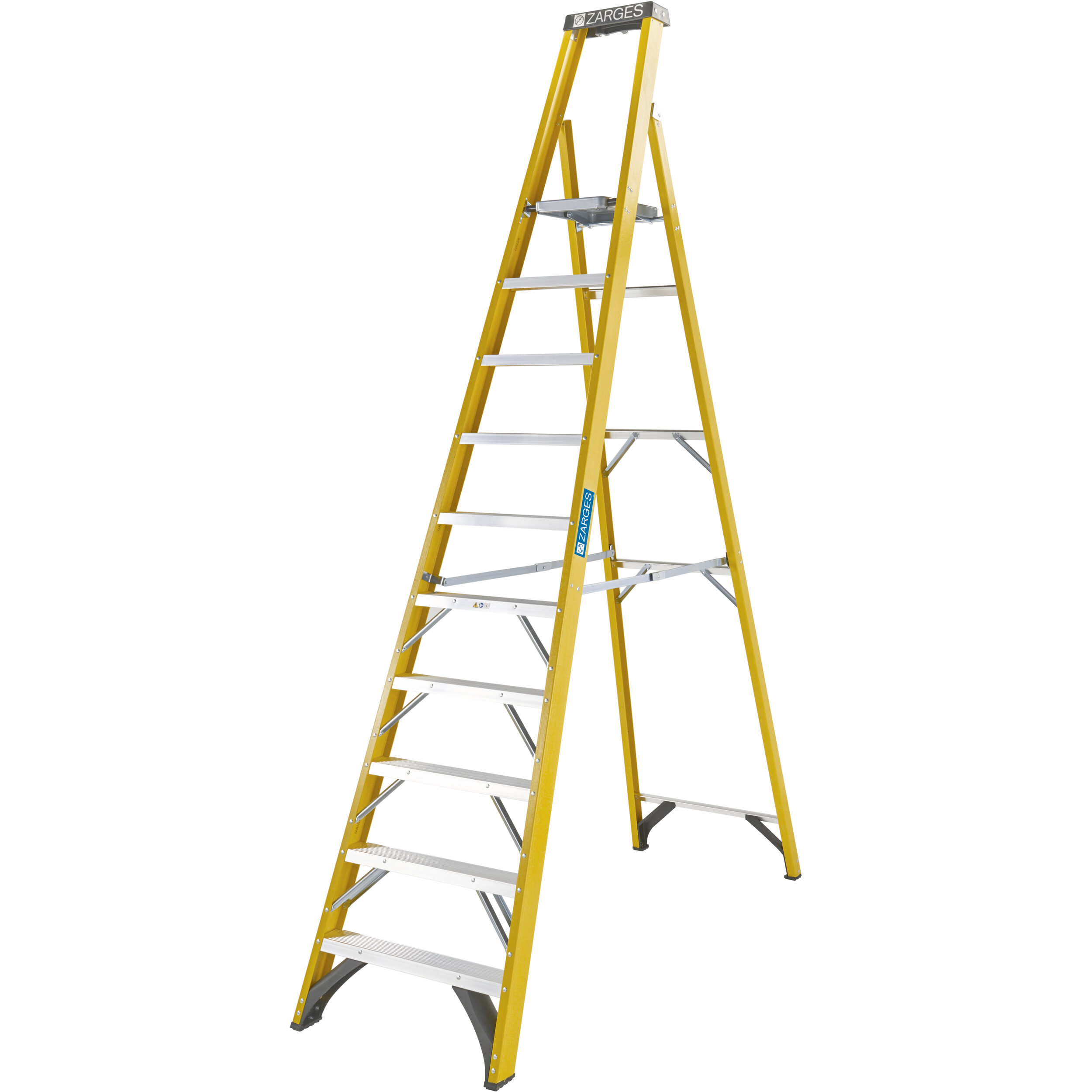

main product photo

Details

Constructed from strong and resilient fibreglass, the ZARGES Fibreglass Platform Stepladder is long-lasting and capable of withstanding heavy use. Ideal for use near electrical hazards.

  • Non-conductive fibreglass stiles ideal for working around electricity.
  • Large platform provides secure and comfortable work area.
  • Integral tool tray for holding tools and equipment.
  • Heavy-duty internal spreaders increase usability and ease of stowage.
  • Generous 250mm tread pitch gives excellent working heights.
  • Heavy-duty slip-resistant tread profile for added strength and security.
  • Heavy-duty bracing at the foot for extra support.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti-splay mechanism Rigid locking bar
Storage tray Plastic
Connection between stiles and rungs/stiles riveted
Type of rungs/treads serrated
Vertical distance between each rung/tread 250 mm
Tread depth 80 mm
Warranty 10 years
Transport dimensions approx. 3.180 mm × approx. 700 mm × approx. 150 mm
Stile depth steps/back stay /
Standards EN 131 professional
Weight 18.03 kg
Base 1,92 m × 0,7 m
Platform width 250 mm
Platform length 320 mm
Load capacity max. 150 kg
Number of rungs, incl. platform 10
Overall base width 0.7 m
Working height 4.35 m
Overall length 3.18 m
Platform height 2.34 m
Material Aluminium / plastic
Number of rungs / treads 10

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
300803 0,81 m × 0,48 m 3 0,48 m 1,43 m 0,7 m approx. 1.430 mm × approx. 480 mm × approx. 150 mm 6,63 kg 2,7 m
300804 0,97 m × 0,51 m 4 0,51 m 1,68 m 0,94 m approx. 1.680 mm × approx. 510 mm × approx. 150 mm 9,05 kg 2,95 m
300805 1,13 m × 0,55 m 5 0,55 m 1,93 m 1,17 m approx. 1.930 mm × approx. 550 mm × approx. 150 mm 10,27 kg 3,2 m
300806 1,29 m × 0,58 m 6 0,58 m 2,18 m 1,4 m approx. 2.180 mm × approx. 580 mm × approx. 150 mm 11,65 kg 3,4 m
300808 1,61 m × 0,64 m 8 0,64 m 2,68 m 1,87 m approx. 2.680 mm × approx. 640 mm × approx. 150 mm 15,07 kg 3,9 m
300810 1,92 m × 0,7 m 10 0,7 m 3,18 m 2,34 m approx. 3.180 mm × approx. 700 mm × approx. 150 mm 18,03 kg 4,35 m
