Industrial Swingback Step

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

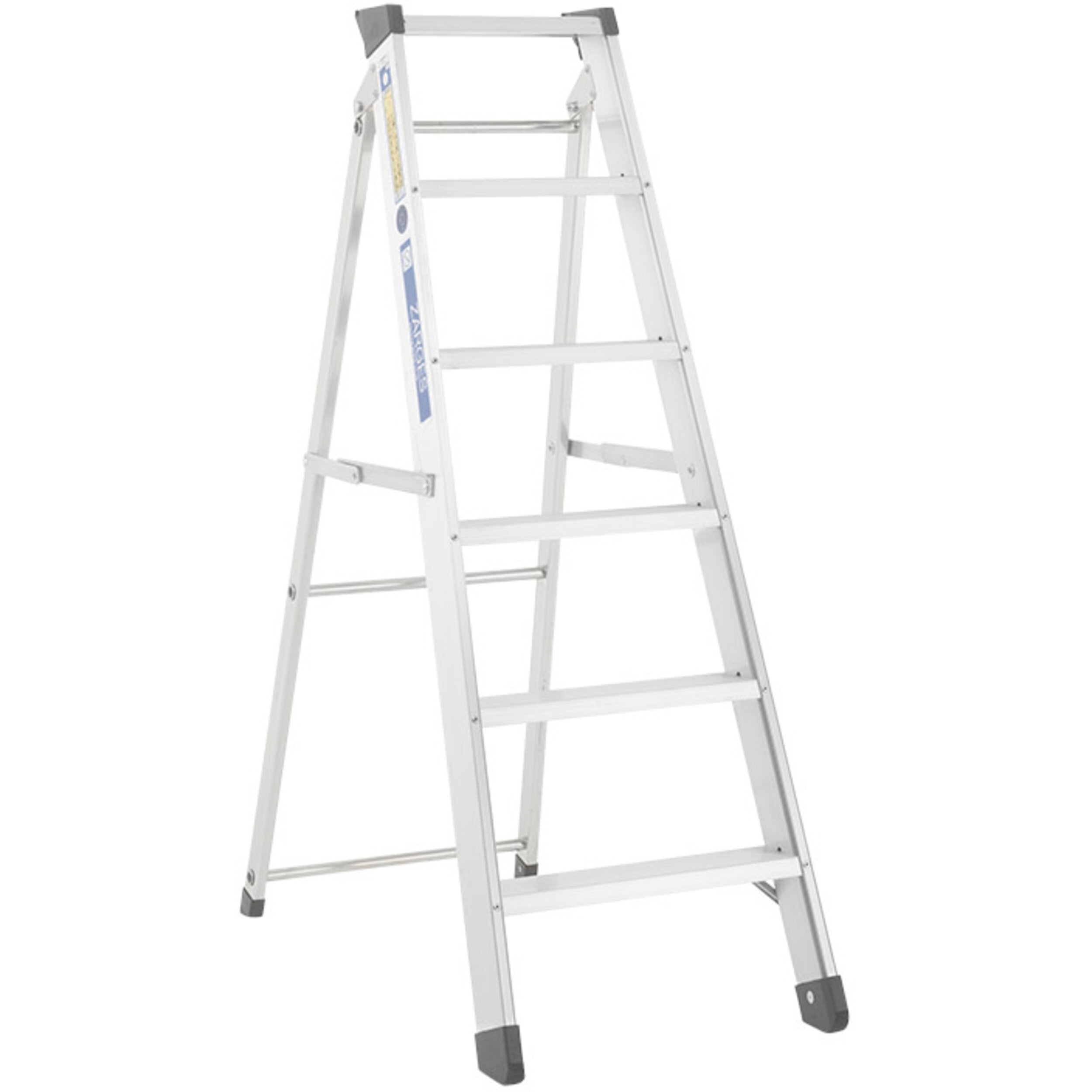

main product photo

Details

The ultimate builders step - built to meet the demands of day to day use

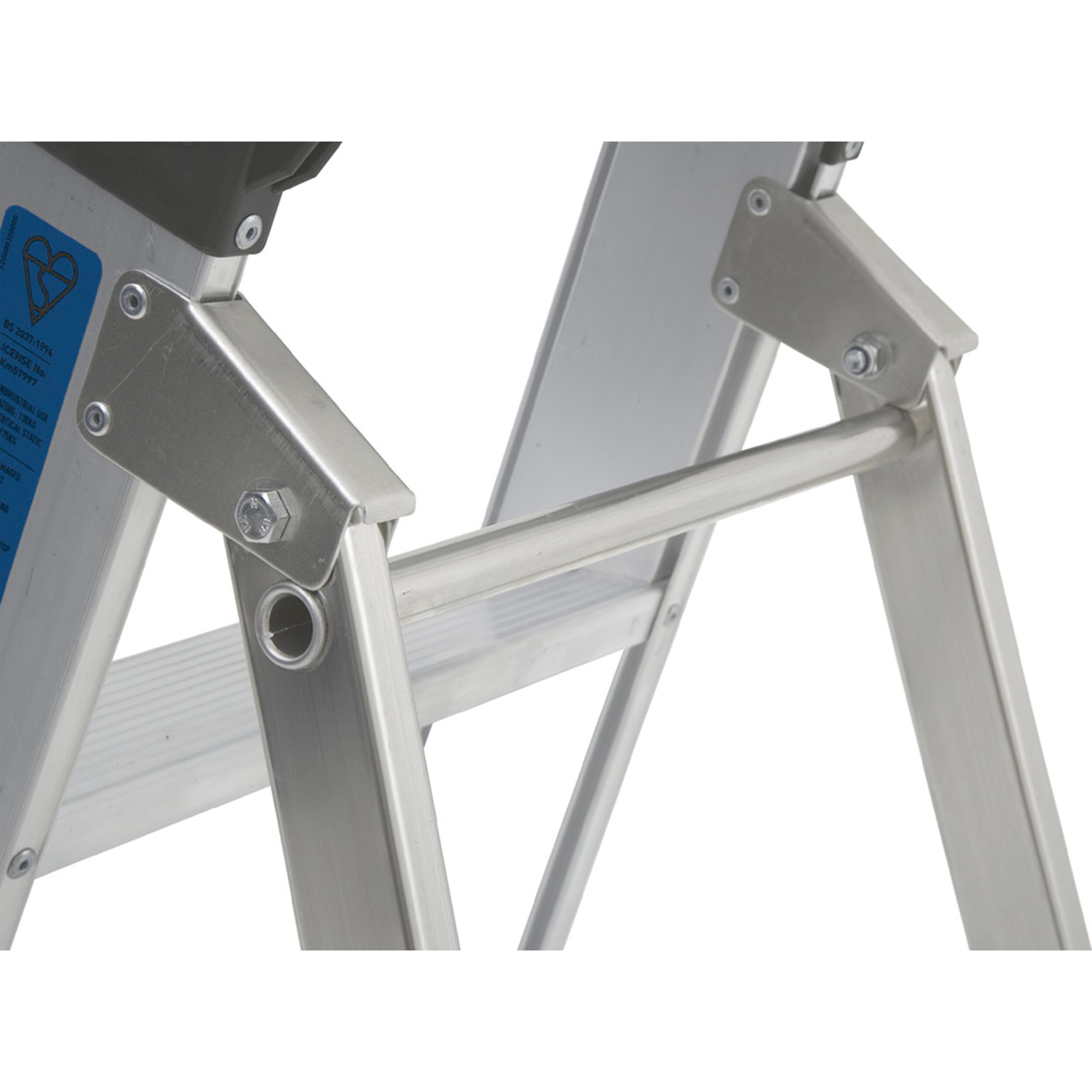

  • Reinforced with a patented 7-point connection system and a central steel rod that runs right through the tread.

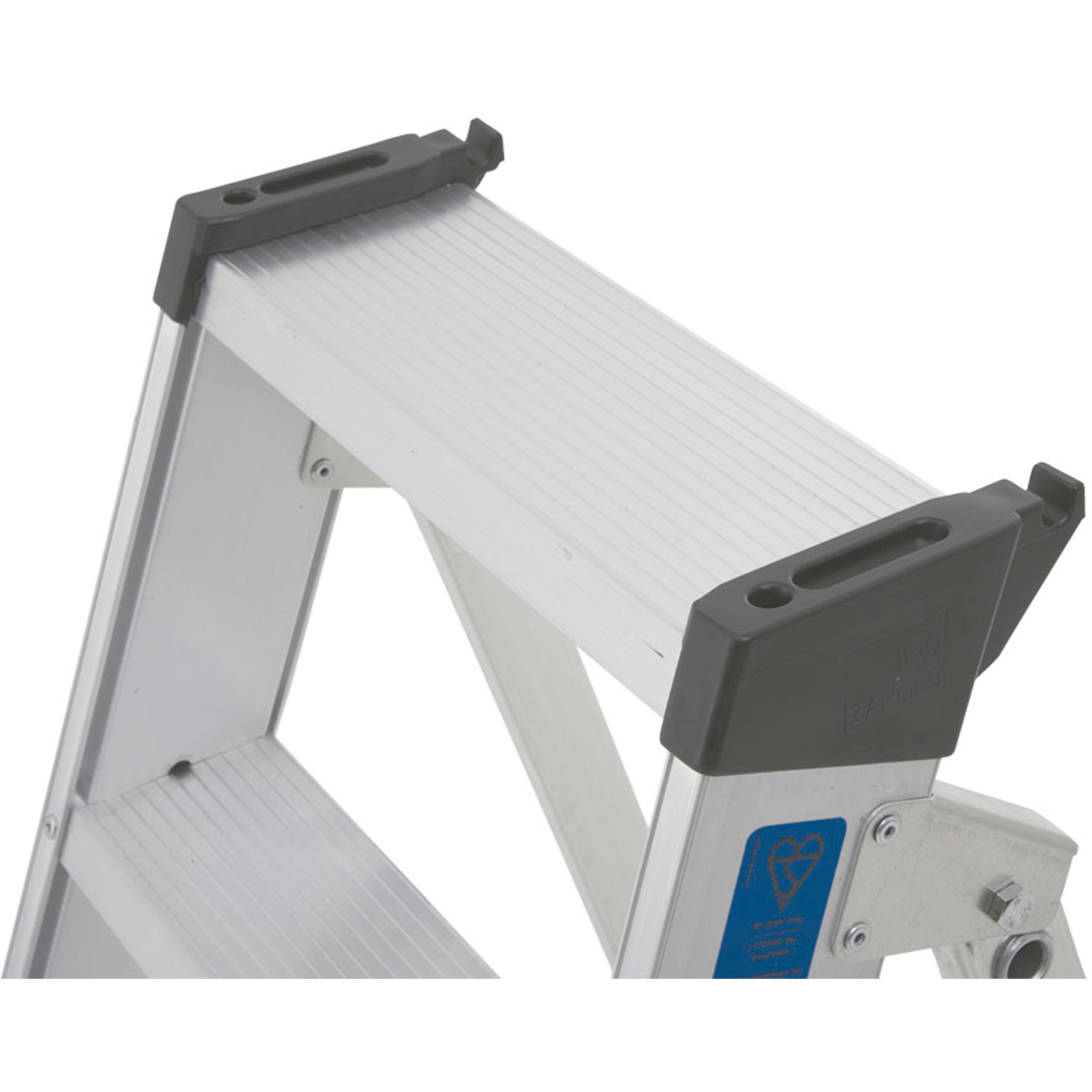

  • Two integrated bucket hooks.

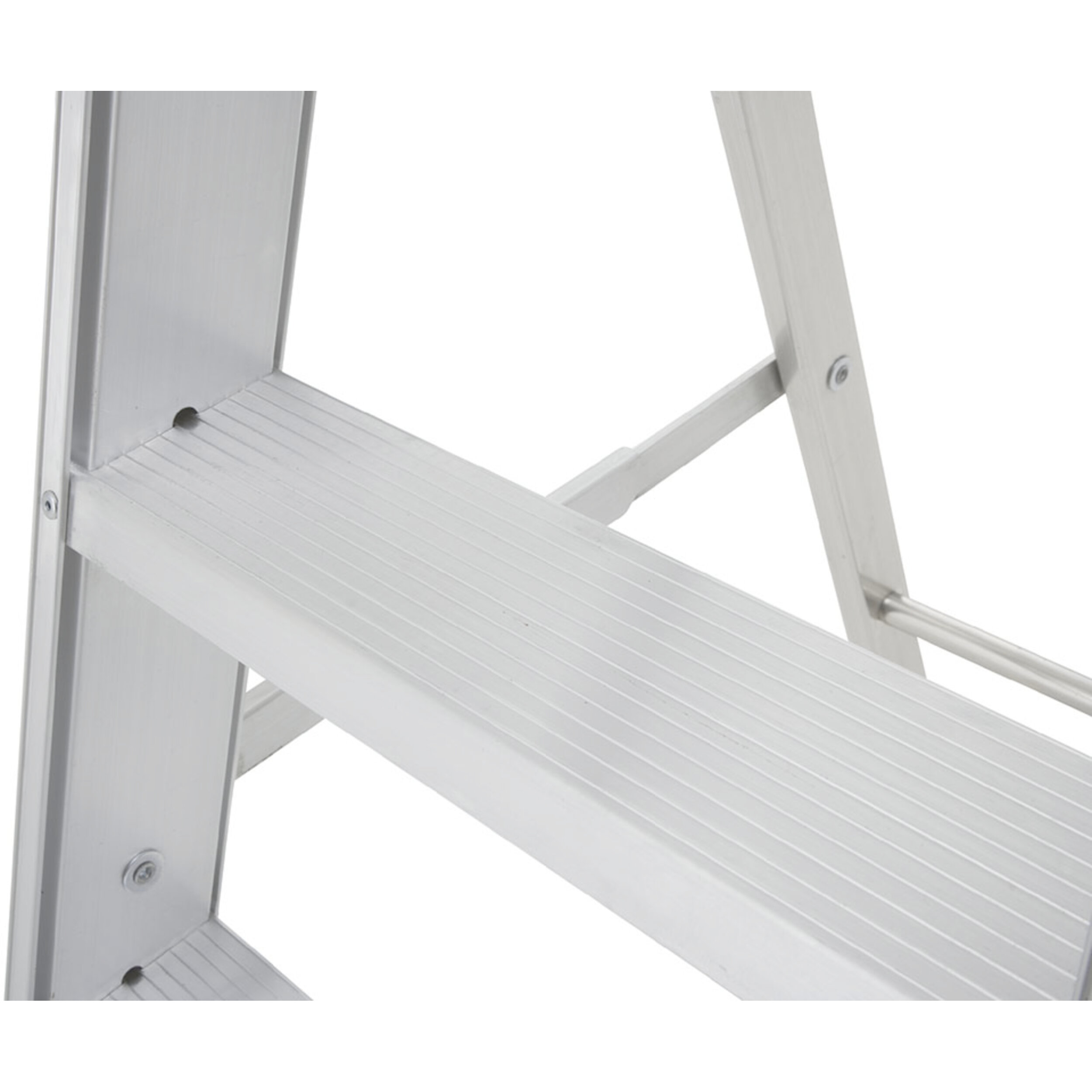

  • Treads 85 mm deep for safe standing.
  • Smooth, grip-friendly external stile surfaces.
  • Stability through slip-resistant plastic end caps.

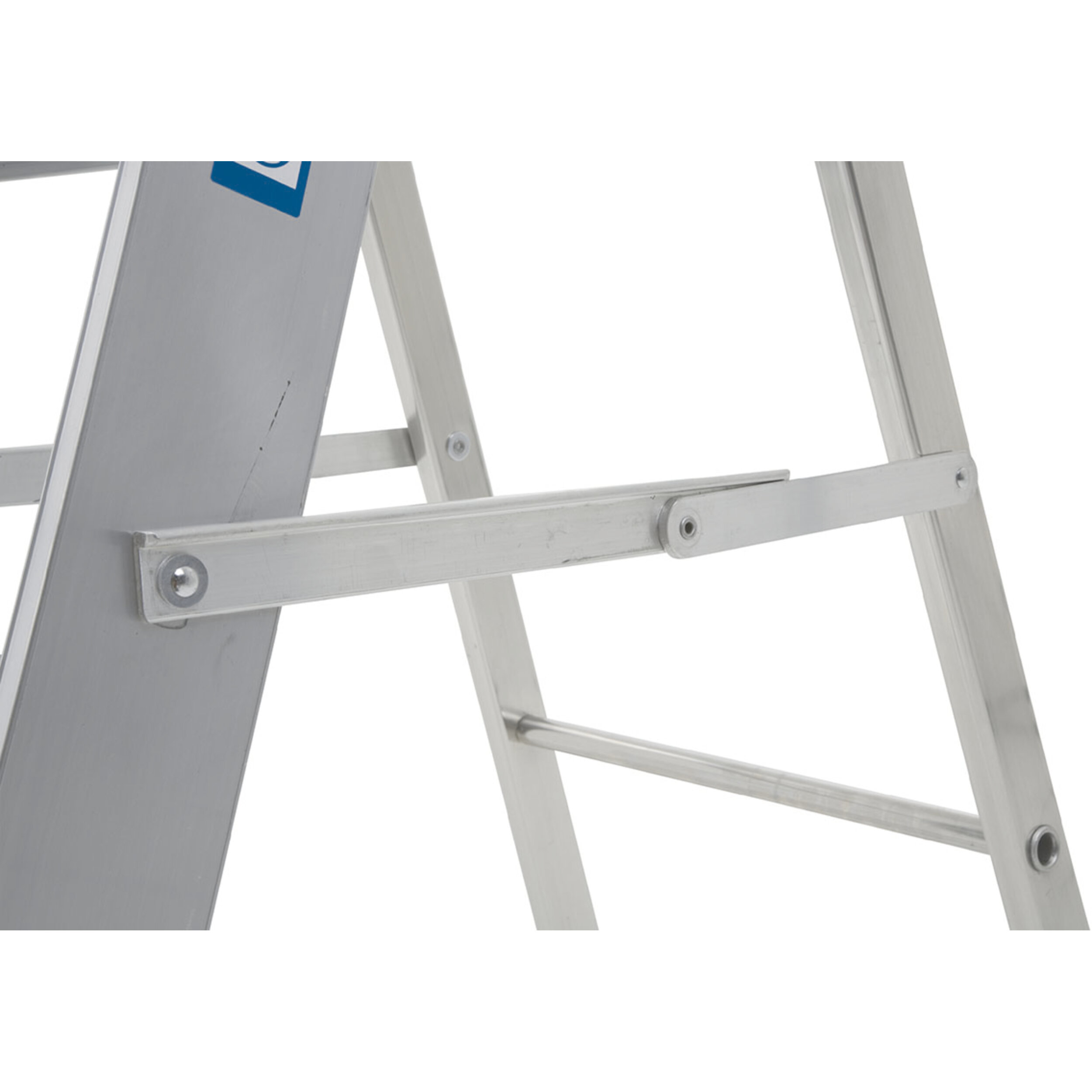

  • High stability thanks to fold-down locking bar on both sides.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti-splay mechanism Rigid locking bar
Coating natural
Connection between stiles and rungs/stiles riveted
Type of rungs/treads serrated
Vertical distance between each rung/tread 218 mm
Tread depth 85 mm
Warranty 10 years
Stile depth 87 mm
Stile depth 40 mm
Load capacity max. 150 kg

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Stile depth Stile depth steps/back stay Transport dimensions Vertical ladder height Working height
49604 0,66 m × 0,43 m 4 0,43 m 0,98 m 40 mm 87mm / 40mm approx. 980 mm × approx. 430 mm × approx. 160 mm 0,87 m 2,45 m
49605 0,8 m × 0,45 m 5 0,45 m 1,21 m 40 mm 87mm / 40mm approx. 1.210 mm × approx. 450 mm × approx. 160 mm 1,08 m 2,65 m
49606 0,95 m × 0,48 m 6 0,48 m 1,44 m 40 mm 87mm / 40mm approx. 1.440 mm × approx. 475 mm × approx. 160 mm 1,3 m 2,85 m
49607 1,1 m × 0,5 m 7 0,5 m 1,67 m 40 mm 87mm / 40mm approx. 1.670 mm × approx. 505 mm × approx. 160 mm 1,51 m 3,1 m
49608 1,24 m × 0,52 m 8 0,52 m 1,89 m 40 mm 87mm / 40mm approx. 1.895 mm × approx. 525 mm × approx. 160 mm 1,73 m 3,25 m
49610 1,53 m × 0,57 m 10 0,57 m 2,36 m 55 mm 87mm / 55mm approx. 2.360 mm × approx. 575 mm × approx. 160 mm 2,16 m 3,75 m
49612 1,82 m × 0,62 m 12 0,62 m 2,82 m 55 mm 87mm / 55mm approx. 2.820 mm × approx. 620 mm × approx. 160 mm 2,6 m 4,25 m
