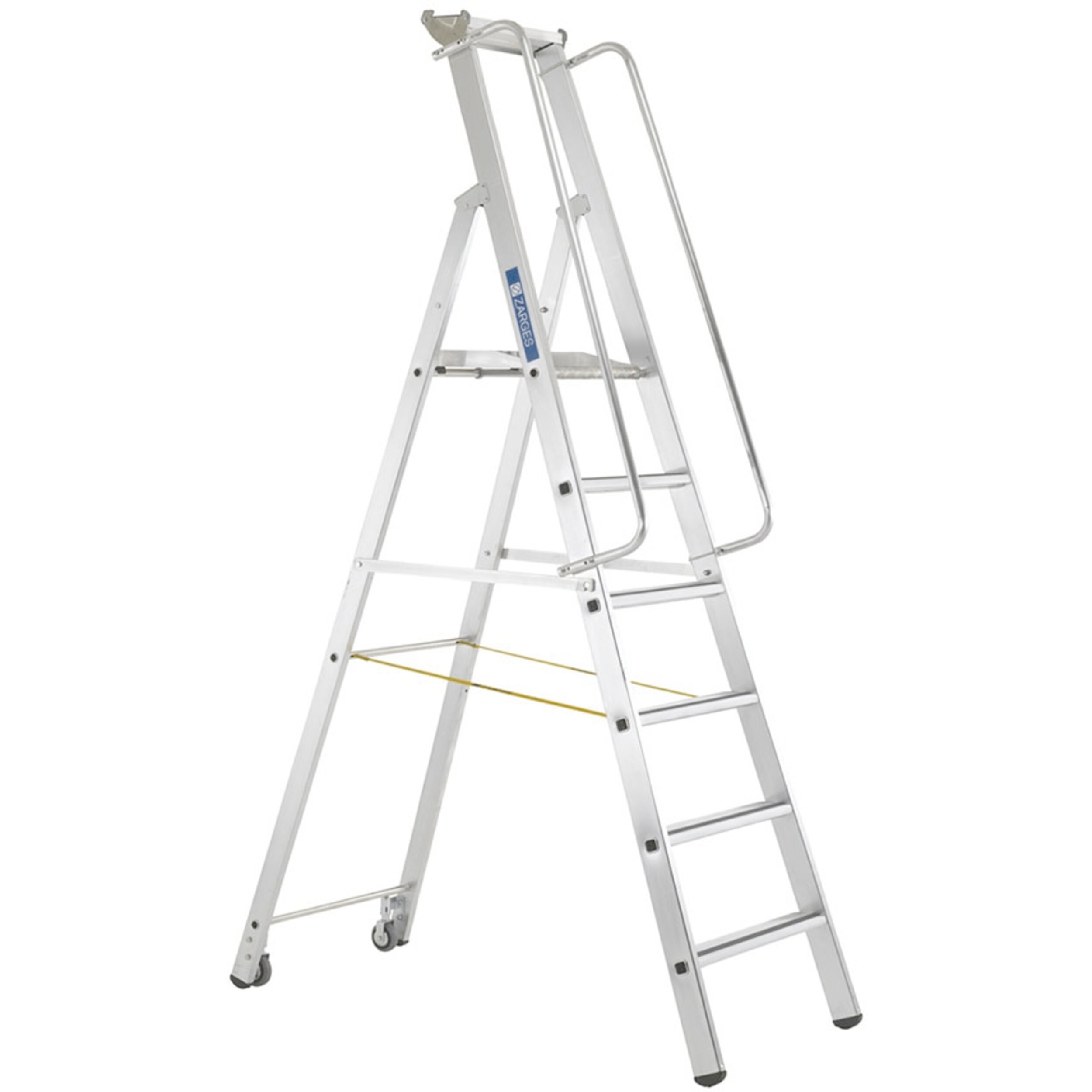

Meistertritt Trec S

Details

Putting the roll into the Rolls Royce of stepladders - the ultimate in comfort and safety.

  • 80 mm deep treads with ZARGES Safer Step Technology for fatigue-free standing.
  • Particularly large work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
  • Practical aluminium storage tray for small items and tools.
  • With two handrails as standard for safe access.
  • Optimum stability due to the use of two high-strength Perlon belts to prevent splay, from 5 treads.
  • Height of the retaining bracket 1,000 mm.
  • Treads and stiles made from extruded aluminium sections.
  • With sprung castors on the support section for mobility.
  • Sturdy, rigid locking bar with a high level of operator comfort and a locking mechanism for transporting.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Platform width 250 mm
Type of rungs/treads Safer Step
Anti-splay mechanism Belt strap
Tread depth 80 mm
Connection between stiles and rungs/stiles flanged
Coating natural
Load max. 150 kg
Length as work platform 250 mm
Storage tray aluminium
Stile depth 73 mm
Stile depth 58 mm

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
341632 0,91 m × 0,59 m 3 0,59 m 1,92 m 0,77 m 1.920 mm × 590 mm × 155 mm 1,77 m 9,5 kg 2,8 m
341633 1,08 m × 0,62 m 4 0,62 m 2,2 m 1,03 m 2.200 mm × 620 mm × 155 mm 2,03 m 10,7 kg 3 m
341634 1,26 m × 0,65 m 5 0,65 m 2,48 m 1,29 m 2.480 mm × 650 mm × 155 mm 2,29 m 12,1 kg 3,3 m
340477 1,43 m × 0,68 m 6 0,68 m 2,75 m 1,55 m 2.750 mm × 680 mm × 155 mm 2,55 m 13,8 kg 3,55 m
340478 1,76 m × 0,74 m 8 0,74 m 3,32 m 2,07 m 3.320 mm × 740 mm × 155 mm 3,07 m 16,7 kg 4,1 m
340479 2,11 m × 0,8 m 10 0,8 m 3,88 m 2,59 m 3.388 mm × 800 mm × 155 mm 3,59 m 20,3 kg 4,6 m
341635 2,46 m × 0,86 m 12 0,86 m 4,44 m 3,11 m 4.440 mm × 860 mm × 155 mm 4,11 m 23,3 kg 5,1 m
