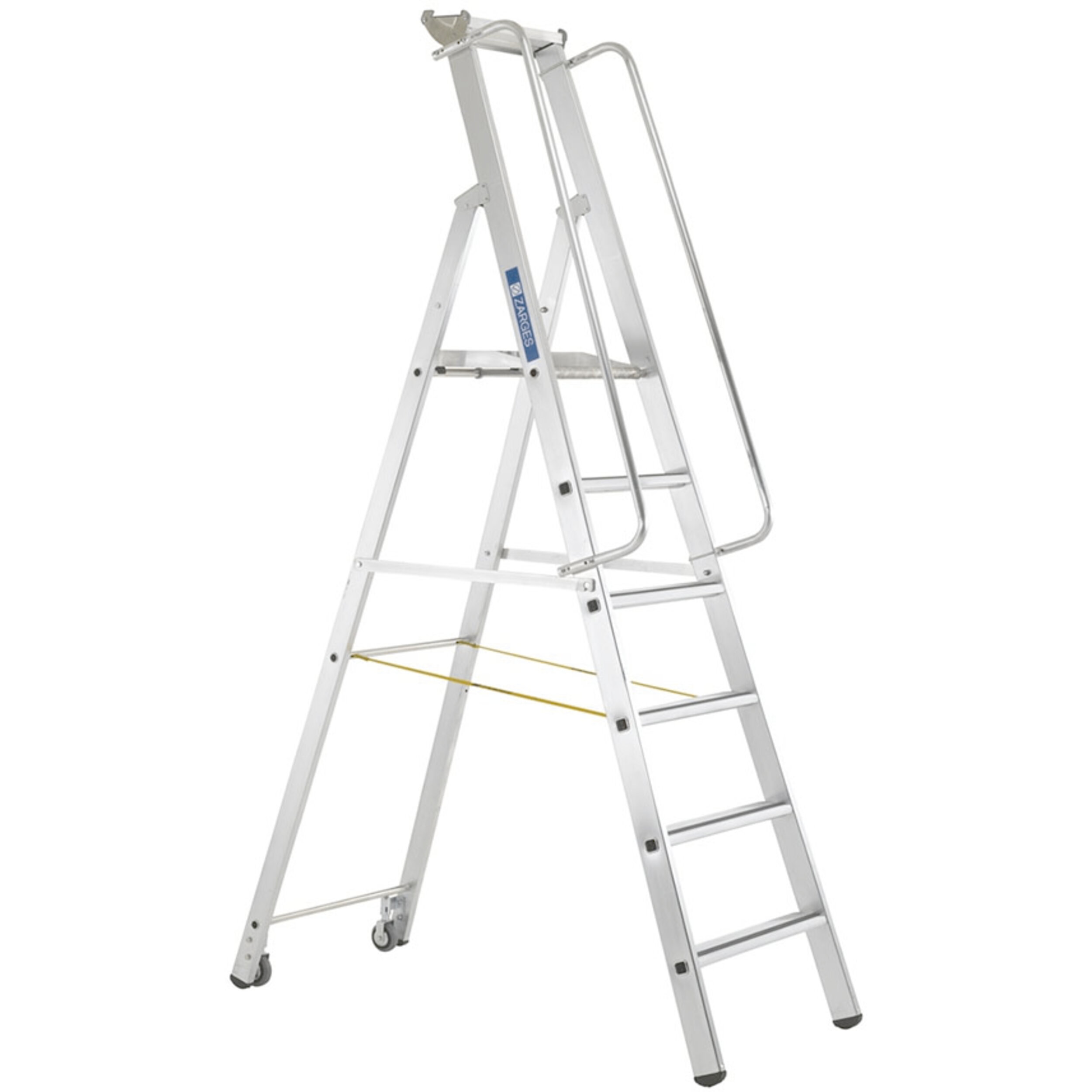

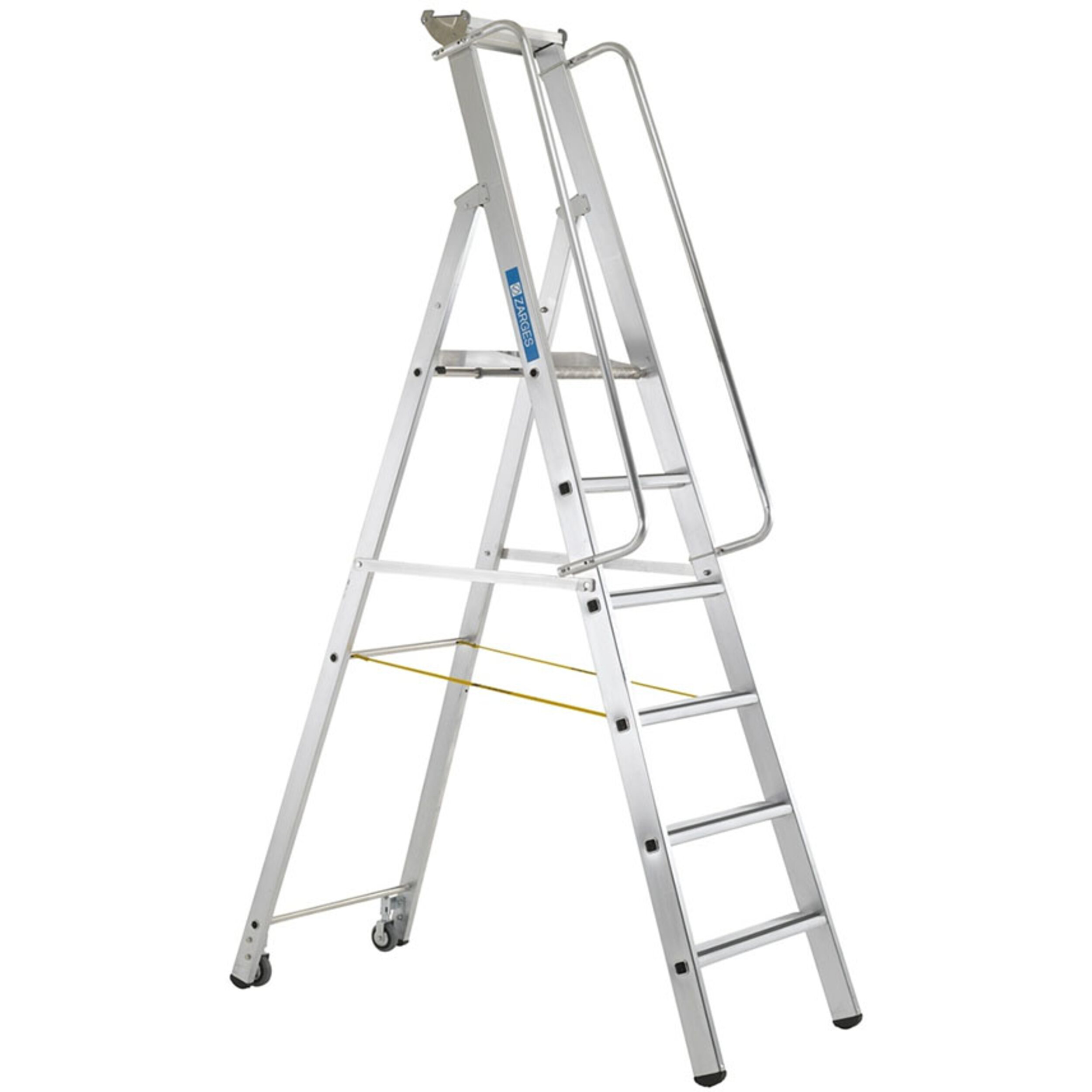

Stepladder with flanged treads, and large platform and storage tray

SKU: 341635

Details

Putting the roll into the Rolls Royce of stepladders - the ultimate in comfort and safety.

  • 80 mm deep treads with ZARGES Safer Step Technology for fatigue-free standing.
  • Particularly large work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
  • Practical aluminium storage tray for small items and tools.
  • With two handrails as standard for safe access.
  • High-strength Perlon straps prevent splay.
  • Height of the retaining bracket 1,000 mm.
  • Treads and stiles made from extruded aluminium sections.

Hints and special features

  • Mobile version from 5 steps possible.
  • Complies with EN 131 Professional.

More Information

More Information
Warranty 10 years
Platform length 250 mm
Platform height 3.11 m
Load capacity max. 150 kg
Platform width 250 mm
Anti-splay mechanism Belt strap
Base 2,46 m × 0,86 m
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 80 mm
Transport dimensions 4.440 mm × 860 mm × 155 mm
Vertical ladder height 4.11 m
Stile depth steps/back stay 73mm / 58mm
Working height 5.1 m
Overall length 4.44 m
Storage tray aluminium
Number of rungs, incl. platform 12
Type of rungs/treads Safer Step
Weight 23.3 kg
Overall base width 0.86 m
Stile depth 73 mm
Stile depth 58 mm
length-area-base-td-met 2.46 m
width-area-base-td-met 0.86 m

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Working height
341632 0,91 m × 0,59 m 3 0,59 m 1,92 m 0,77 m 1.920 mm × 590 mm × 155 mm 1,77 m 2,8 m
341633 1,08 m × 0,62 m 4 0,62 m 2,2 m 1,03 m 2.200 mm × 620 mm × 155 mm 2,03 m 3 m
341634 1,26 m × 0,65 m 5 0,65 m 2,48 m 1,29 m 2.480 mm × 650 mm × 155 mm 2,29 m 3,3 m
340477 1,43 m × 0,68 m 6 0,68 m 2,75 m 1,55 m 2.750 mm × 680 mm × 155 mm 2,55 m 3,55 m
340478 1,76 m × 0,74 m 8 0,74 m 3,32 m 2,07 m 3.320 mm × 740 mm × 155 mm 3,07 m 4,1 m
340479 2,11 m × 0,8 m 10 0,8 m 3,88 m 2,59 m 3.388 mm × 800 mm × 155 mm 3,59 m 4,6 m
341635 2,46 m × 0,86 m 12 0,86 m 4,44 m 3,11 m 4.440 mm × 860 mm × 155 mm 4,11 m 5,1 m
