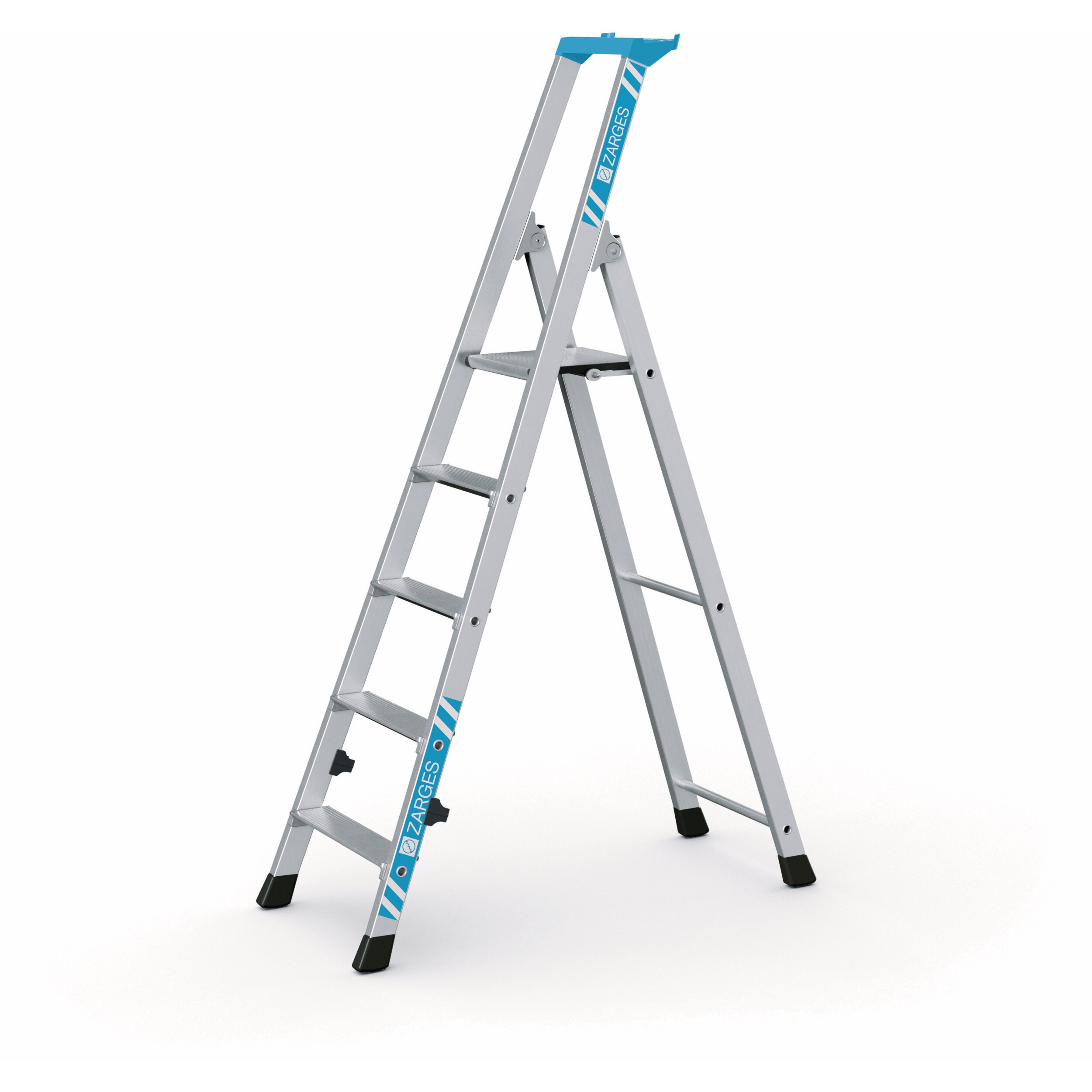

Nova S

Details

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.

  • 80 mm deep surfaces to stand on.

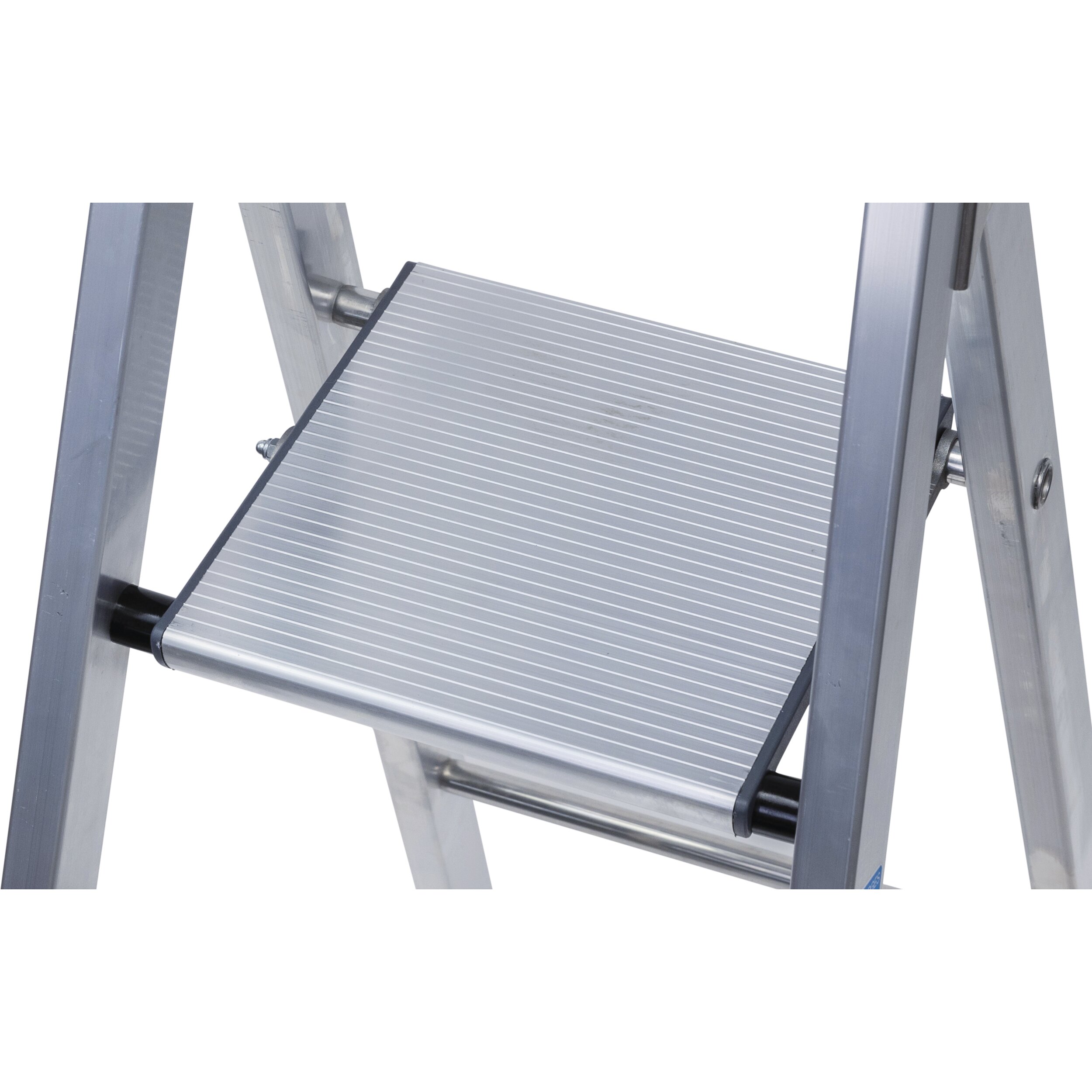

  • Large standing platform with anti-slip serrated surface.

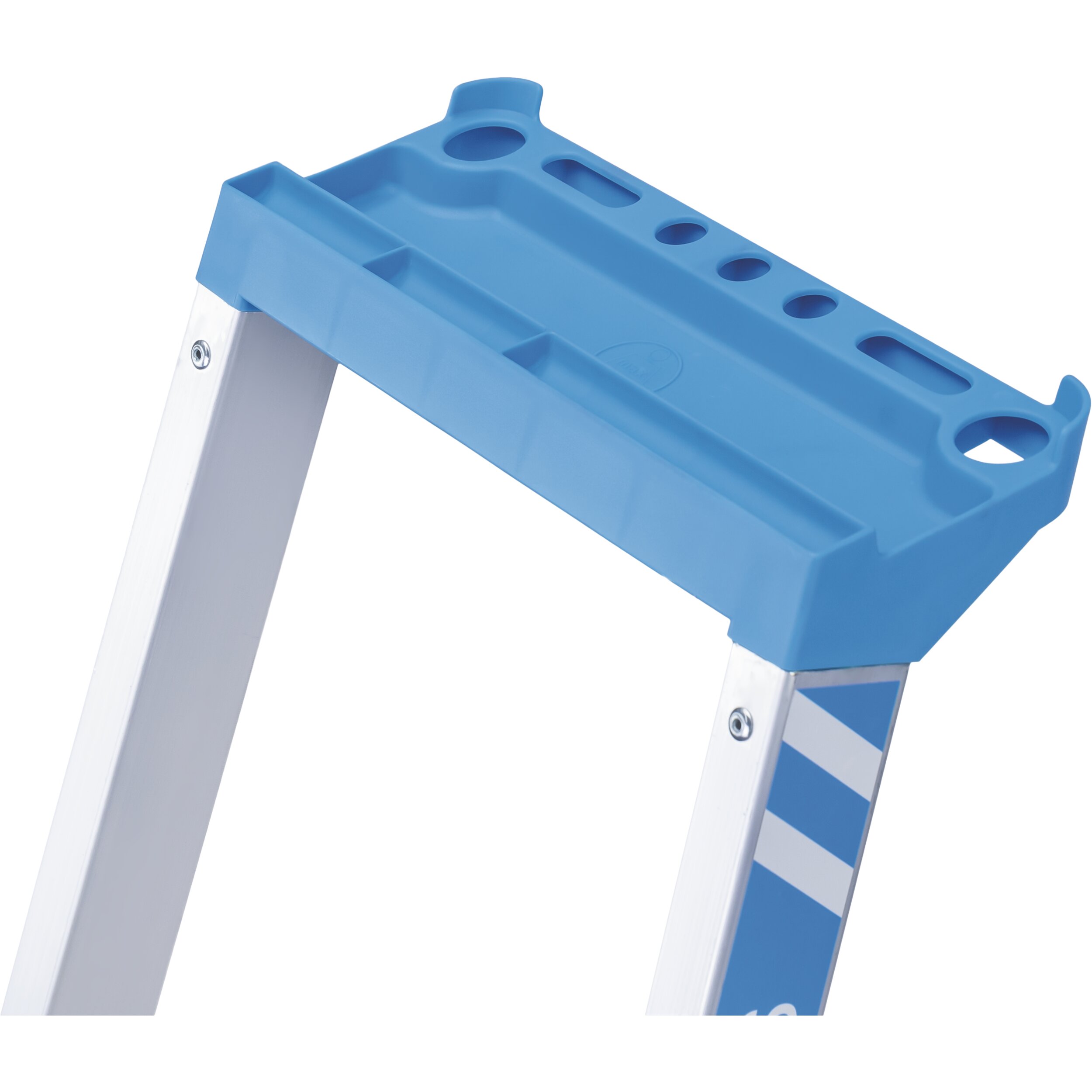

  • Practical storage tray with plenty of space for tools and small parts.
  • High-strength Perlon belts with sewn-in fixing straps prevent splay, from 7 rungs.
  • Patented tread design: sturdy, stable and durable with high-strength, rung-stile connection.
  • Optimal platform stability thanks to extruded aluminium sections.
  • Two plastic locating guides lock steps together when it's closed.
  • Stability through slip-resistant plastic end caps.
  • Enclosed rung profile and integrated guide tube.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Platform width 250 mm
Platform length 250 mm
Anti-splay mechanism Belt strap
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 80 mm
Load max. 150 kg
Material aluminium
Storage tray Plastic
Vertical distance between each rung/tread 216 mm
Product type Stepladder with flanged treads
Type of rungs/treads serrated
Stile depth 48 mm
Stile depth 48 mm

Variants

Order number Anti-splay mechanism Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
42453 0,69 m × 0,42 m 3 0,42 m 1,34 m 0,61 m 1.350 mm × 420 mm × 120 mm 1,22 m 4,8 kg 2,6 m
42454 0,84 m × 0,44 m 4 0,44 m 1,57 m 0,83 m 1.580 mm × 440 mm × 120 mm 1,43 m 5,8 kg 2,85 m
42455 0,99 m × 0,46 m 5 0,46 m 1,8 m 1,05 m 1.810 mm × 470 mm × 120 mm 1,65 m 6,9 kg 3,05 m
42456 1,14 m × 0,49 m 6 0,49 m 2,03 m 1,26 m 2.060 mm × 490 mm × 120 mm 1,86 m 8 kg 3,25 m
42457 Belt strap 1,28 m × 0,51 m 7 0,51 m 2,26 m 1,48 m 2.270 mm × 520 mm × 120 mm 2,08 m 9,1 kg 3,5 m
42458 Belt strap 1,44 m × 0,54 m 8 0,54 m 2,49 m 1,7 m 2.500 mm × 540 mm × 120 mm 2,29 m 10,2 kg 3,7 m
42460 Belt strap 1,76 m × 0,58 m 10 0,58 m 2,95 m 2,13 m 2.960 mm × 590 mm × 120 mm 2,73 m 4,15 m
