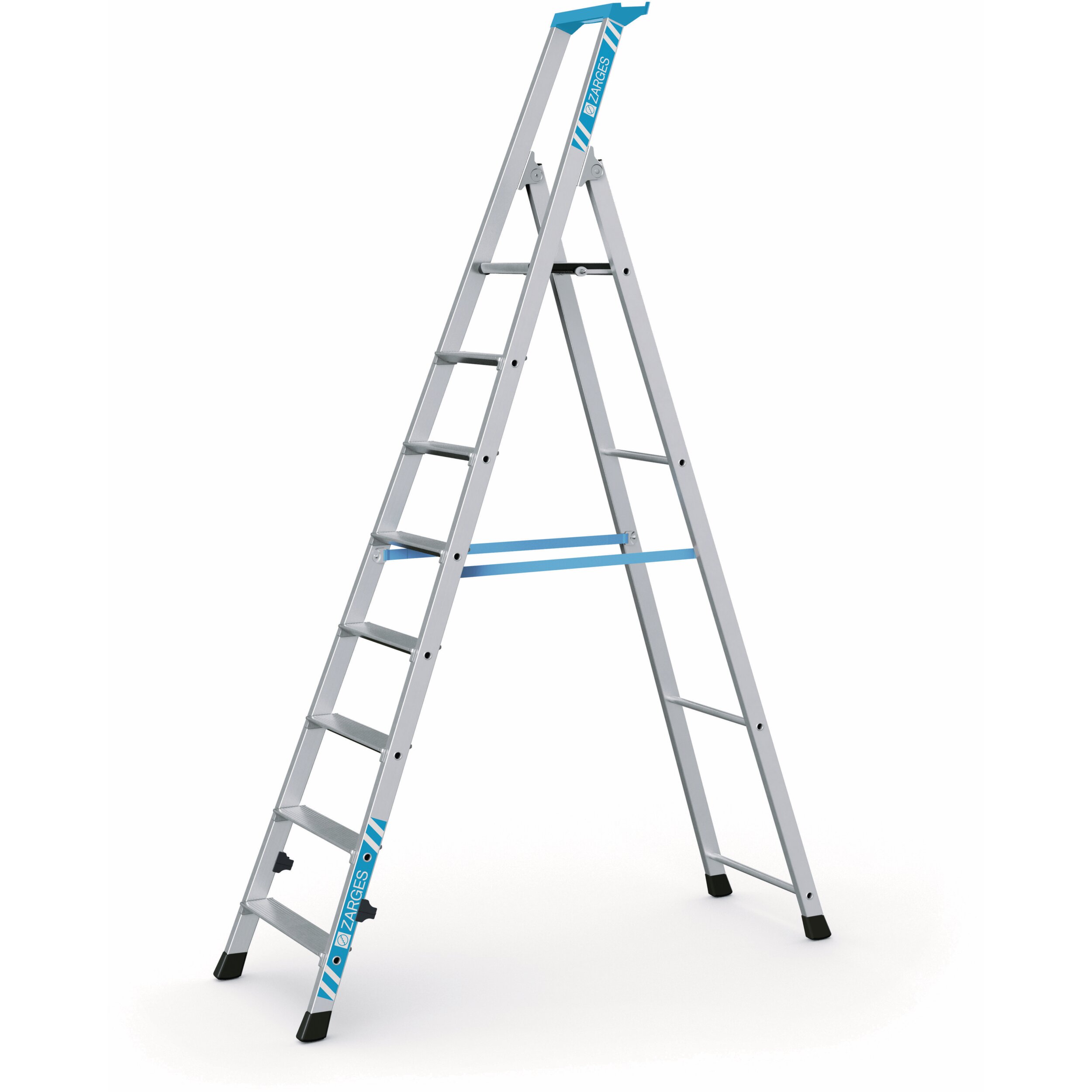

Nova S

SKU: 42458

Details

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.
Large standing platform with anti-slip serrated surface.
Practical storage tray with plenty of space for tools and small parts.
80 mm deep surfaces to stand on.

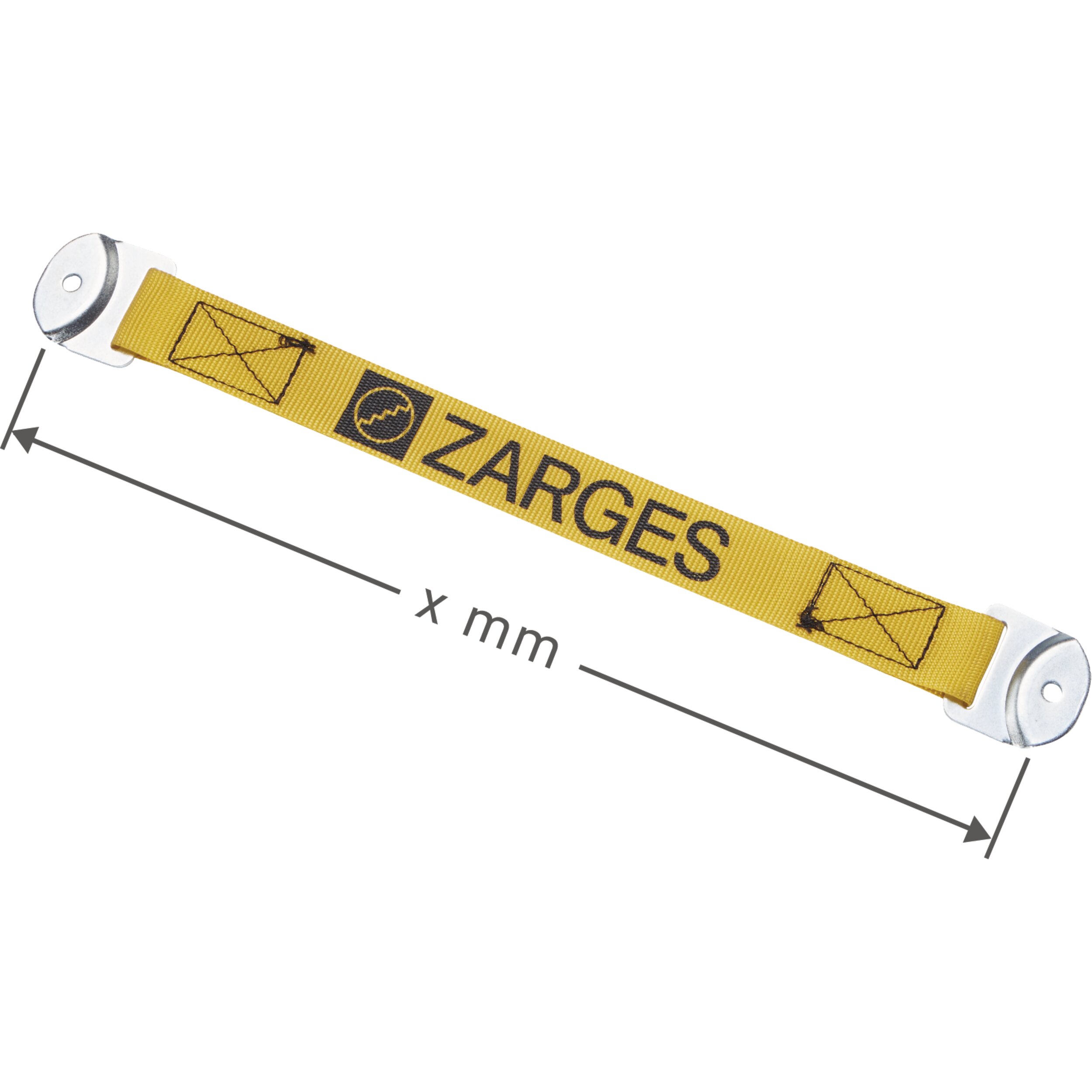

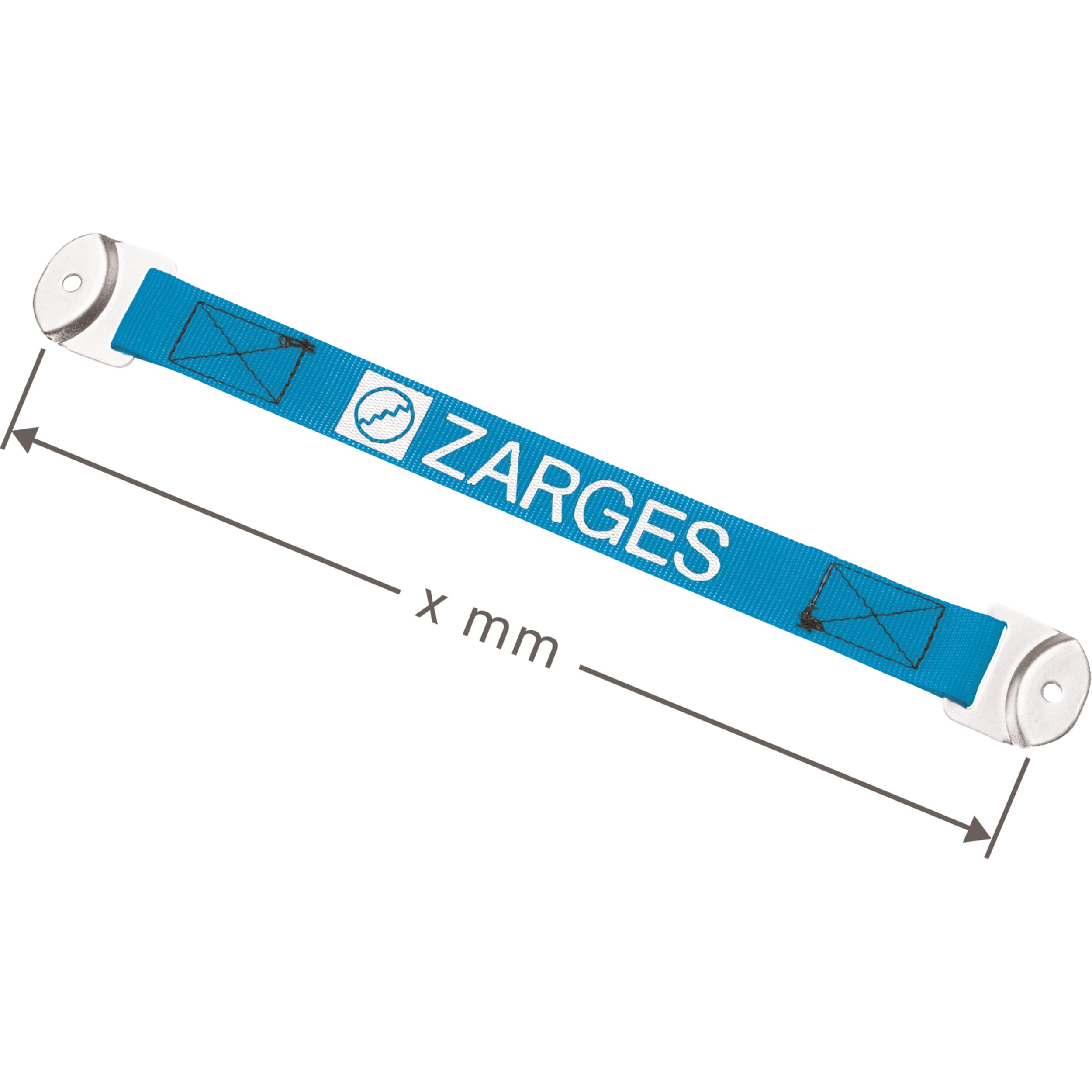

High-strength Perlon straps prevent splay.
Patented tread design: sturdy, stable and durable with high-strength, rung-stile connection.
Optimal platform stability thanks to extruded aluminium sections.
Two plastic locating guides lock steps together when it's closed.
Stability through slip-resistant plastic end caps.
Enclosed rung profile and integrated guide tube.

More Information
Material	aluminium
Standards	EN 131 professional
Warranty	10 years
Platform length	250 mm
Platform height	1.7 m
Load capacity	max. 150 kg
Platform width	250 mm
Anti-splay mechanism	Belt strap
Base	1,44 m × 0,54 m
Coating	natural
Connection between stiles and rungs/stiles	flanged
Tread depth	80 mm
Transport dimensions	2.500 mm × 540 mm × 120 mm
Vertical ladder height	2.29 m
Stile depth steps/back stay	48mm / 48mm
Working height	3.7 m
Overall length	2.49 m
Storage tray	Plastic
Number of rungs, incl. platform	8
Vertical distance between each rung/tread	216 mm
Product type	Stepladder with flanged treads
Type of rungs/treads	serrated
Weight	10.2 kg
Overall base width	0.54 m
Stile depth	48 mm
Stile depth	48 mm

Order number	Anti-splay mechanism	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Vertical ladder height	Weight	Working height
42453		0,69 m × 0,42 m	3	0,42 m	1,34 m	0,61 m	1.350 mm × 420 mm × 120 mm	1,22 m	4,8 kg	2,6 m
42454		0,84 m × 0,44 m	4	0,44 m	1,57 m	0,83 m	1.580 mm × 440 mm × 120 mm	1,43 m	5,8 kg	2,85 m
42455		0,99 m × 0,46 m	5	0,46 m	1,8 m	1,05 m	1.810 mm × 470 mm × 120 mm	1,65 m	6,9 kg	3,05 m
42456		1,14 m × 0,49 m	6	0,49 m	2,03 m	1,26 m	2.060 mm × 490 mm × 120 mm	1,86 m	8 kg	3,25 m
42457	Belt strap	1,28 m × 0,51 m	7	0,51 m	2,26 m	1,48 m	2.270 mm × 520 mm × 120 mm	2,08 m	9,1 kg	3,5 m
42458	Belt strap	1,44 m × 0,54 m	8	0,54 m	2,49 m	1,7 m	2.500 mm × 540 mm × 120 mm	2,29 m	10,2 kg	3,7 m
42460	Belt strap	1,76 m × 0,58 m	10	0,58 m	2,95 m	2,13 m	2.960 mm × 590 mm × 120 mm	2,73 m	12,4 kg	4,15 m
