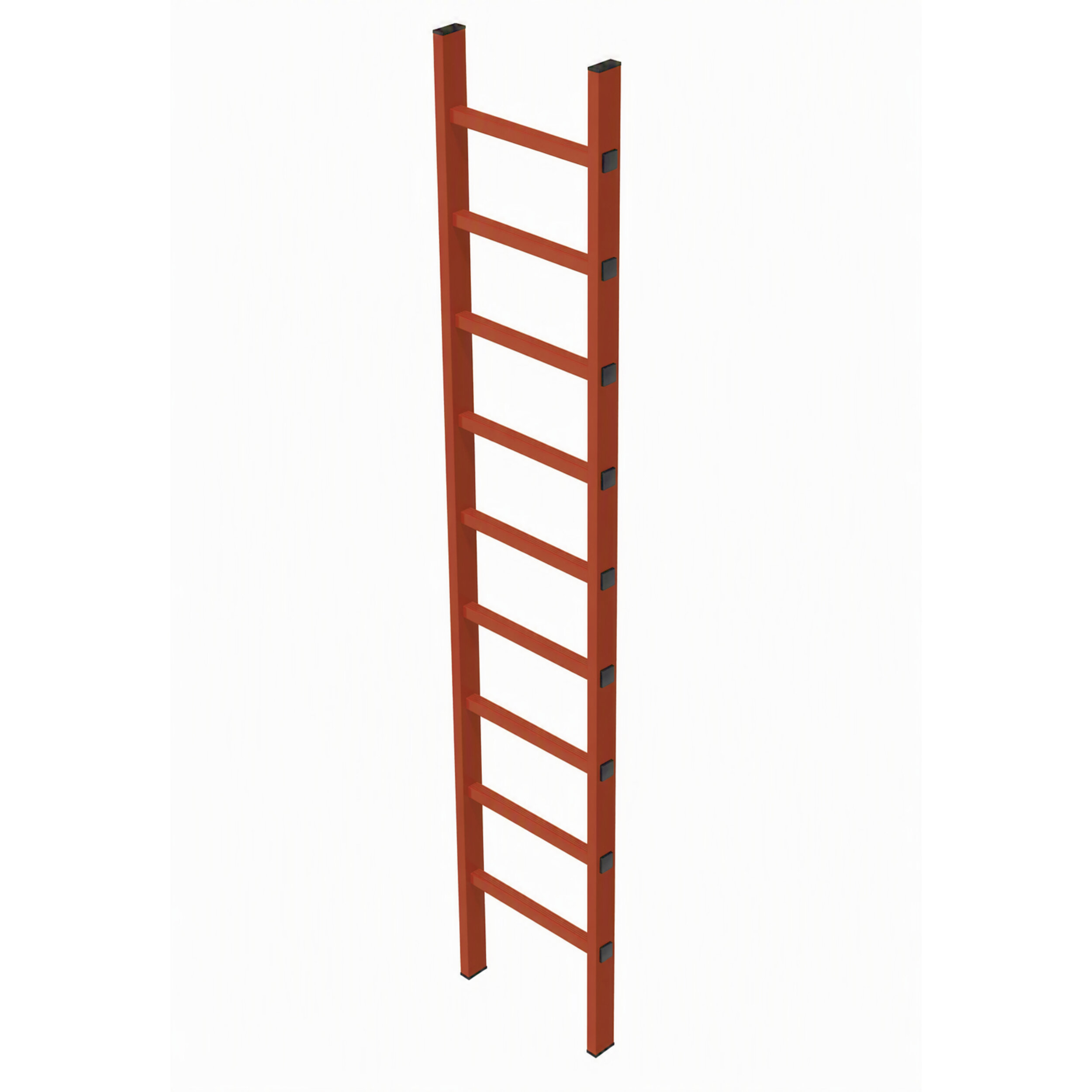

Shaft ladder, GRP, internal width 300 mm

SKU: 47366

Details

  • Inside width of ladder: 300 mm.
  • Outer width of ladder: 340 mm.
  • Rung spacing: 280 mm.
  • Dimensions of stile: 58 x 25 mm.
  • Dimensions of non-slip GRP rung: 30 x 30 mm.
  • Material: glass-fibre-reinforced plastic (GRP).

Hints and special features

  • A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.,assembly combination for further lengths on request.

More Information

More Information
Weight 6.4 kg
Order number 47366
Length 2.52 m
Number of rungs 9
Material Glass-fibre reinforced plastic

Variants

Order number Length Number of rungs Weight
47361 1,12 m 4 2,9 kg
47362 1,4 m 5 3,6 kg
47363 1,68 m 6 4,3 kg
47364 1,96 m 7 5 kg
47365 2,24 m 8 5,7 kg
47366 2,52 m 9 6,4 kg
47367 2,8 m 10 7,1 kg
47368 3,08 m 11 7,8 kg
47369 3,36 m 12 8,5 kg
47663 3,64 m 13 9,2 kg
47664 3,92 m 14 9,9 kg
47665 4,2 m 15 10,6 kg
