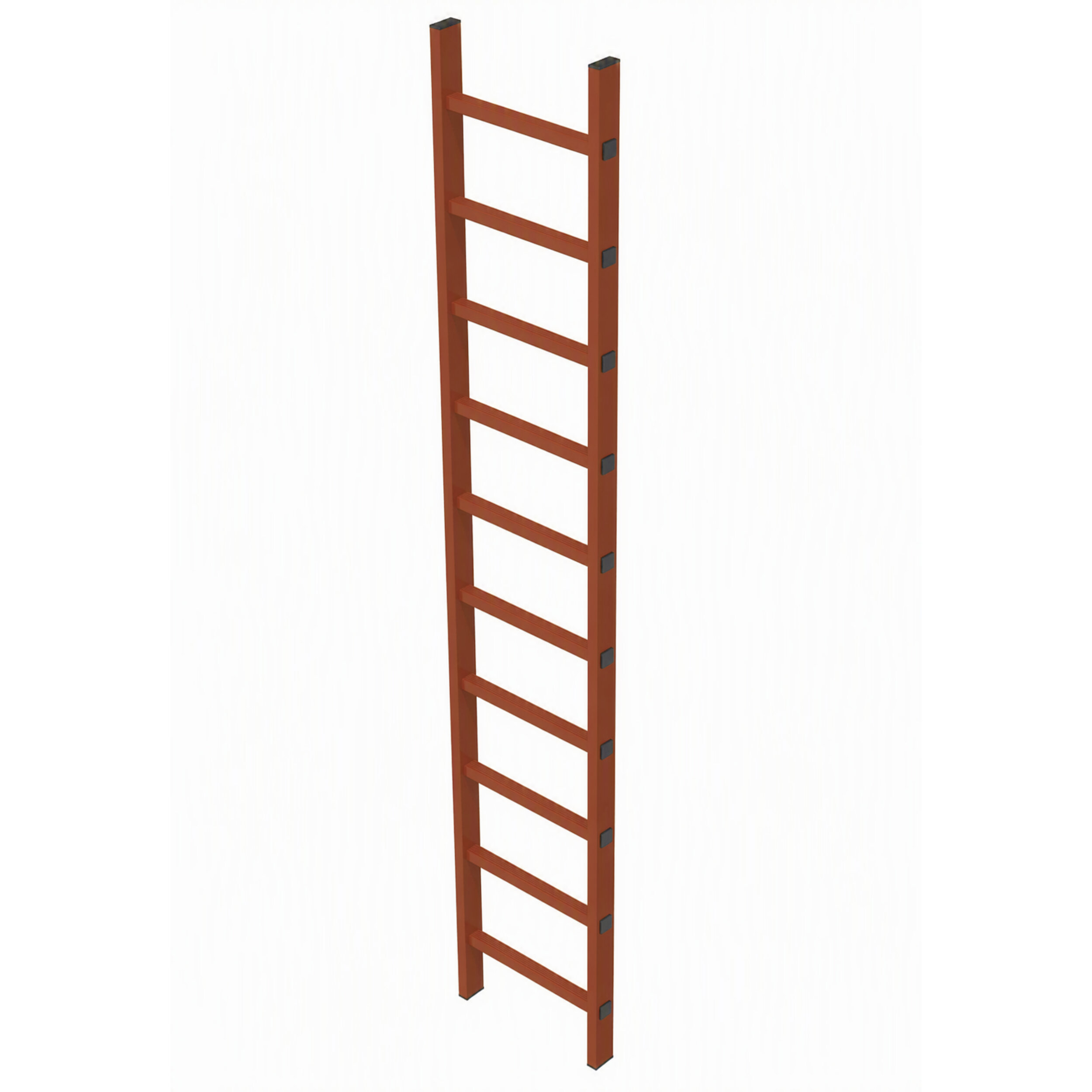

Shaft ladder, GRP, internal width 400 mm

SKU: 47377

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

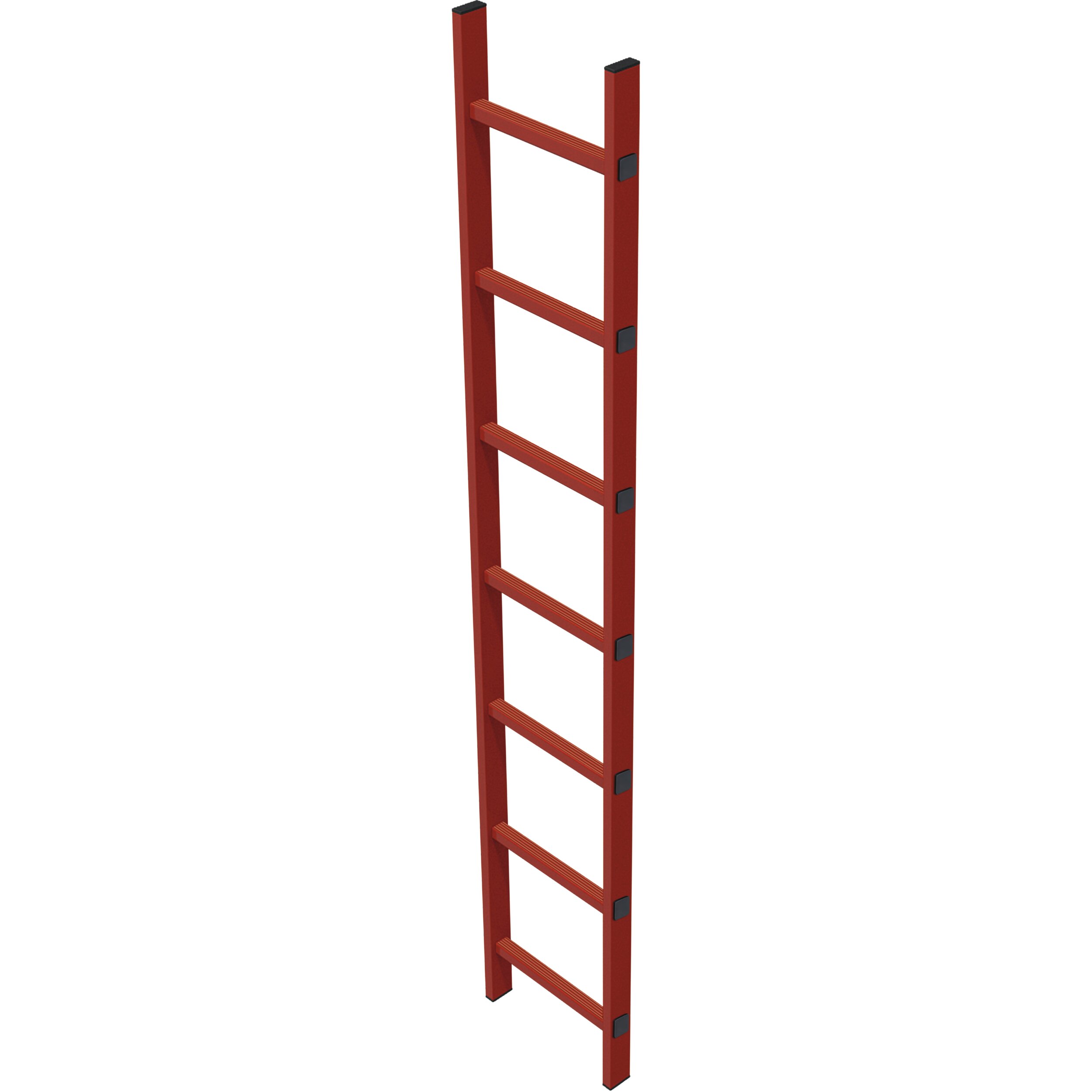

main product photo

Details

  • Inside width of ladder: 400 mm.
  • Outer width of ladder: 440 mm.
  • Rung spacing: 280 mm.
  • Dimensions of stile: 58 x 25 mm.
  • Dimensions of non-slip GRP rung: 30 x 30 mm.
  • Material: glass-fibre-reinforced plastic (GRP).

Hints and special features

  • If the clear width is 300 mm, the arrester rail is installed on the ladder rail. If the clear width is 400 mm, the arrester rail is installed in the center of the rungs.
  • assembly combination for further lengths on request.

More Information

More Information
Vertical distance between each rung/tread 280 mm
Tread depth 30 mm
Warranty 10 years
Weight 15.3 kg
Number of rungs 10
Stile depth 58 mm
Ladder width 450 mm
Length 2.8 m
Material Glass-fibre reinforced plastic
Order number 47377
Number of rungs / treads 10

Variants

Order number Length Number of rungs Weight
47371 1,12 m 4 5,7 kg
47372 1,4 m 5 7,3 kg
47373 1,68 m 6 8,9 kg
47374 1,96 m 7 10,5 kg
47375 2,24 m 8 12,1 kg
47376 2,52 m 9 13,7 kg
47377 2,8 m 10 15,3 kg
47378 3,08 m 11 16,9 kg
47379 3,36 m 12 18,5 kg
47673 3,64 m 13 20,1 kg
47674 3,92 m 14 21,7 kg
47675 4,2 m 15 23,3 kg
