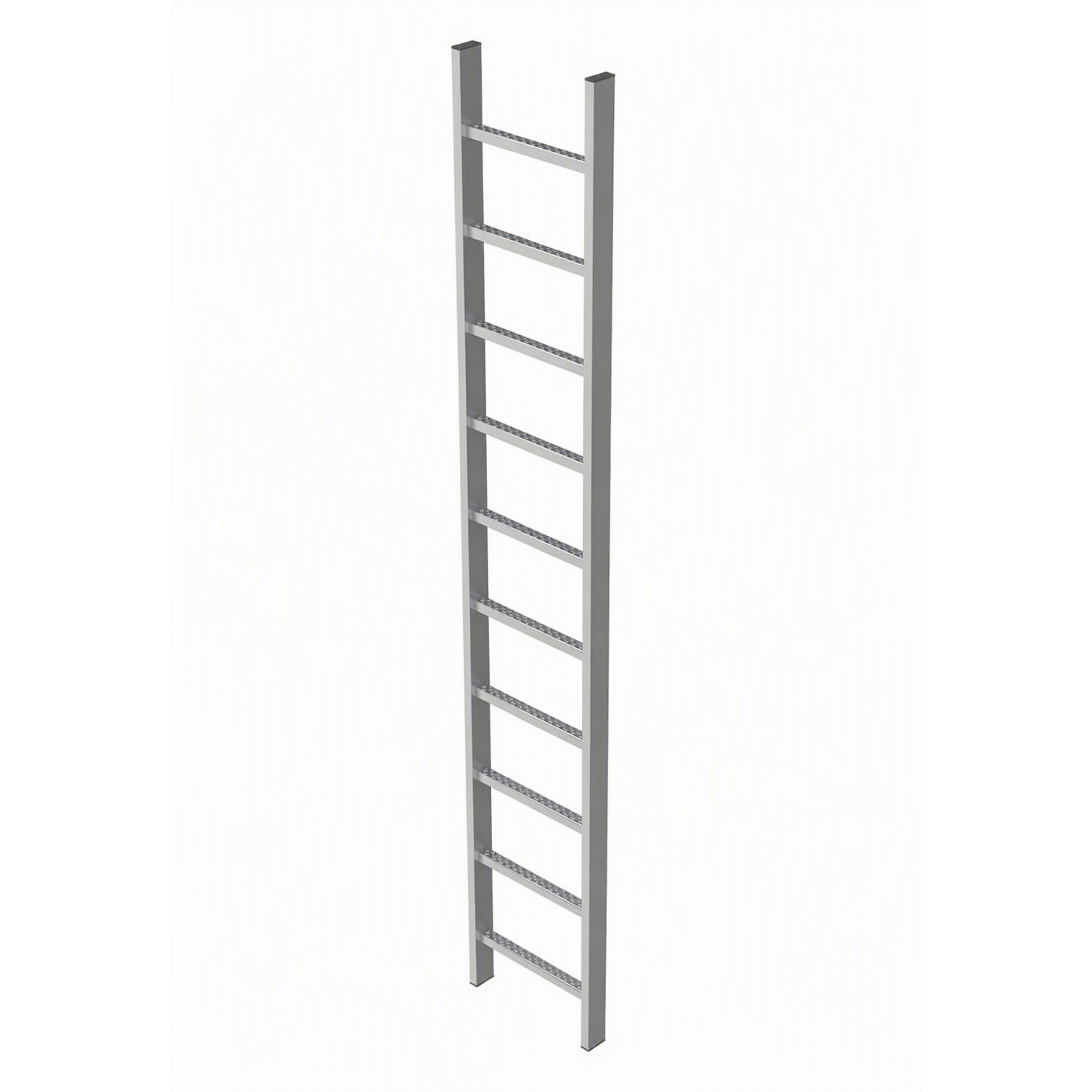

Shaft ladder, steel, internal width 300 mm

• Inside width of ladder: 300 mm.
• Overall ladder width: 340 mm.
• Rung spacing: 280 mm.
• Stile dimensions: 50 × 20 mm.
• Dimensions of perforated rung: 29 x 29 mm.
• Material: hot-dip galvanised steel.

Hints and special features

• If the clear width is 300 mm, the arrester rail is installed on the ladder rail. If the clear width is 400 mm, the arrester rail is installed in the center of the rungs.
• assembly combination for further lengths on request.
