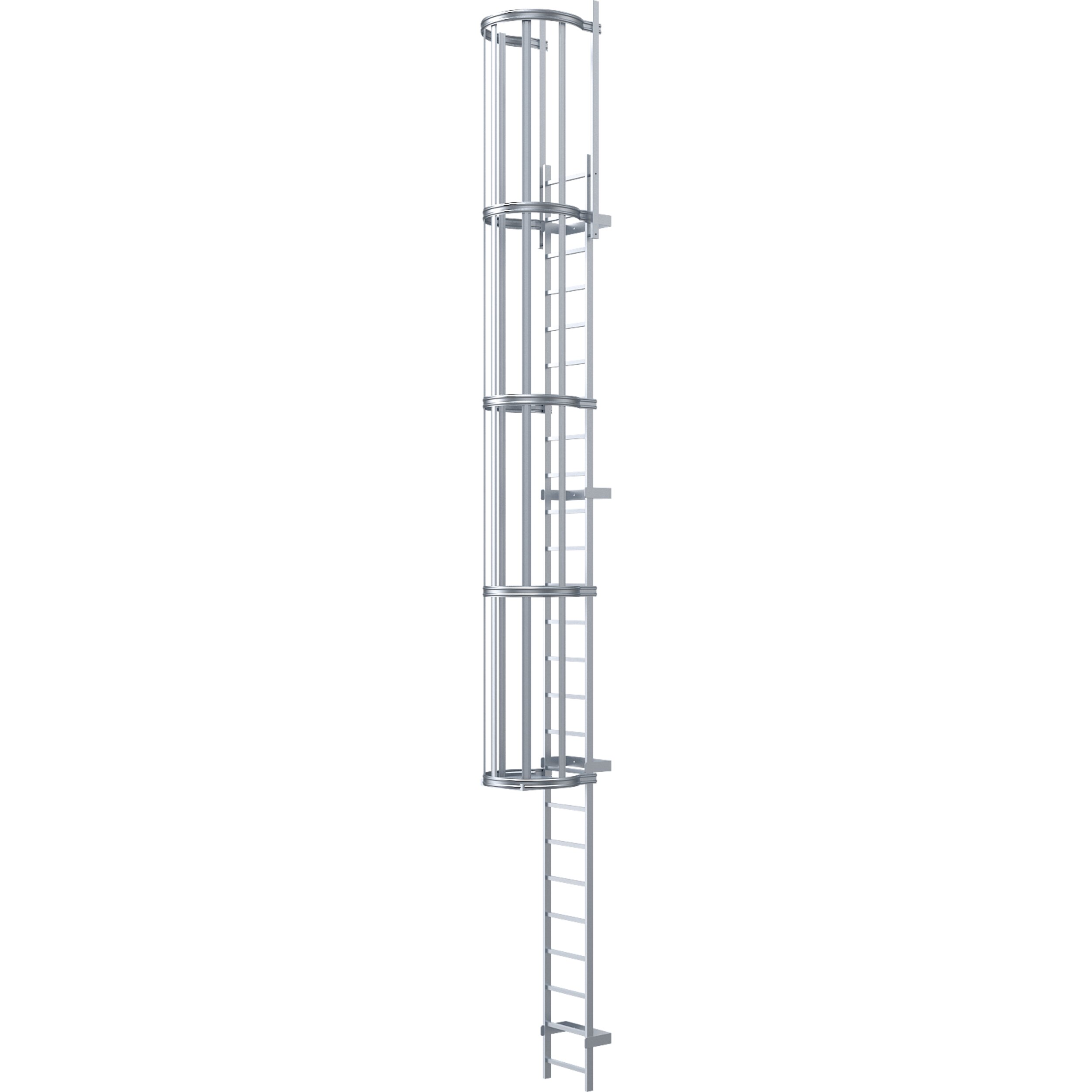

Single-section fixed ladder systems up to a height of 10 m, stainless steel V4A

Details

Stationary access to buildings and machinery up to a height of 10 m, also suitable and approved for use as an escape route.

  • For stationary mounting, on buildings either for maintenance in accordance with DIN 18 799-1 or as an emergency ladder system in accordance with DIN 14 094-1 or as machine access steps in accordance with DIN EN ISO 14 122-4.
  • Safety cage as safety system, complies with any standard.
  • Arrester rail as a safety system in accordance with DIN EN 353-1, DIN 18 799-1 and DIN EN ISO 14 122-4, can be supplied as a single-section fixed ladder even with climbing heights of over 10 m.
  • Ladder width: 520 mm.
  • Wall brackets with various wall clearances of up to 600 mm can be selected.
  • The maximum permissible distance between two wall brackets is 2.00 m. But each ladder section must be mounted with at least two wall brackets.
  • Safety barriers, access protection and platforms can be selected to suit individual requirements.
  • We can also produce fixed-ladder designs that differ from the standard specification on request.

Hints and special features

  • Dowels and screws/bolts for wall mounting are not included in the scope of delivery.
  • The prices for single-section systems listed below are calculated as follows: Wall bracket in the form of a U-bar, 200 mm rigid, straight stile extensions on both sides, incl. back cage in accordance with DIN 18 799-1.In the case of other requirements, please use our planning system for fixed ladders.

Variants

Order number Overall length incl. stile access height
58448 5,9 m 4,8 m
58457 6,7 m 5,6 m
58465 7,6 m 6,5 m
58474 8,5 m 7,4 m
58485 9,6 m 8,5 m
58496 10,7 m 9,6 m
