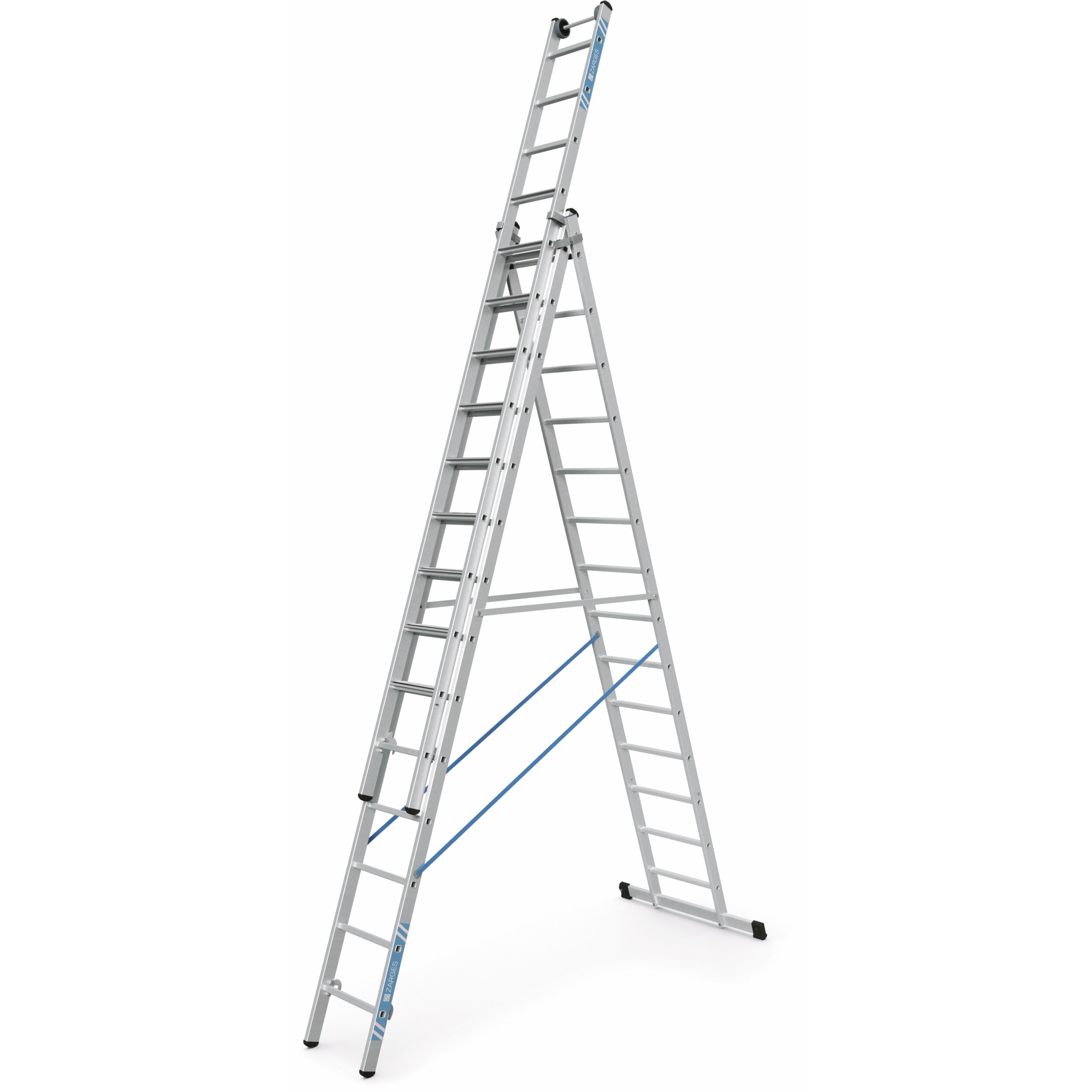

Skymaster Plus X

SKU: 41581

Details

One ladder, many functions: the flexible solution for accessing higher places safely and providing extra stability. The ladder is particularly safe and comfortable to use due to the 80 mm deep treads on the upper ladder.

  • One ladder, many functions: the flexible solution for accessing higher places safely and providing extra stability. The ladder is particularly safe and comfortable to use due to the 80 mm deep treads on the upper ladder.
  • Particularly light thanks to the combination of stepladder and rung ladder (hybrid design).
  • Maximum stability thanks to rigid locking bars on both sides.
  • The horizontal stabiliser bar is fitted with castors for ergonomic transport.
  • Upper ladder equipped with top wheel assembly.
  • Upper ladder can also be used separately as single ladders for Order Nos. 41578-41579.
  • High-strength Perlon straps with sewn-in fixing tab to prevent splaying.
  • Optimum wrap-around stile guide that encompasses the whole rung.
  • Rung hook and stile guides are bolted in and can therefore be replaced.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Product type Flanged multipurpose ladder, 3 sections
Castors Rubber
Coating natural
Connection between stiles and rungs/stiles flanged
Type of rungs/treads serrated
Vertical distance between each rung/tread 265 mm
Rigid locking bar on both sides
Warranty 10 years
Transport dimensions approx. 4.145 mm × approx. 500 mm × approx. 245 mm
Number of rungs 3 × 14
Standards EN 131 professional
Overall length, retracted 4.14 m
Weight 36.6 kg
Number of rungs 14
Stile depth 98 mm
Load capacity max. 150 kg
Wide crosspiece 1.2 m
Working height as 3-part single ladder max. approx. 10.2 m
Length as 2-part single ladder and as stepladder with push-on section 6.94 m
Ladder length as 3-part single ladder 9.73 m
Material aluminium
certification-mark-pf TÜV-SÜD
Number of rungs / treads 3 × 14

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
41578 5,81 m 4,13 m 3 × 8 2,45 m 73 mm approx. 2.450 mm × approx. 500 mm × approx. 220 mm 18,8 kg 1 m max. approx. 6,55 m
41579 6,88 m 4,94 m 3 × 10 3,01 m 85 mm approx. 3.015 mm × approx. 500 mm × approx. 230 mm 26,2 kg 1,185 m max. approx. 7,6 m
41580 8,61 m 6,1 m 3 × 12 3,58 m 98 mm approx. 3.585 mm × approx. 500 mm × approx. 245 mm 32,1 kg 1,2 m max. approx. 9,15 m
41581 9,73 m 6,94 m 3 × 14 4,14 m 98 mm approx. 4.145 mm × approx. 500 mm × approx. 245 mm 36,6 kg 1,2 m max. approx. 10,2 m
