Stainless steel shaft covers with cover plate

SKU: 47096

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

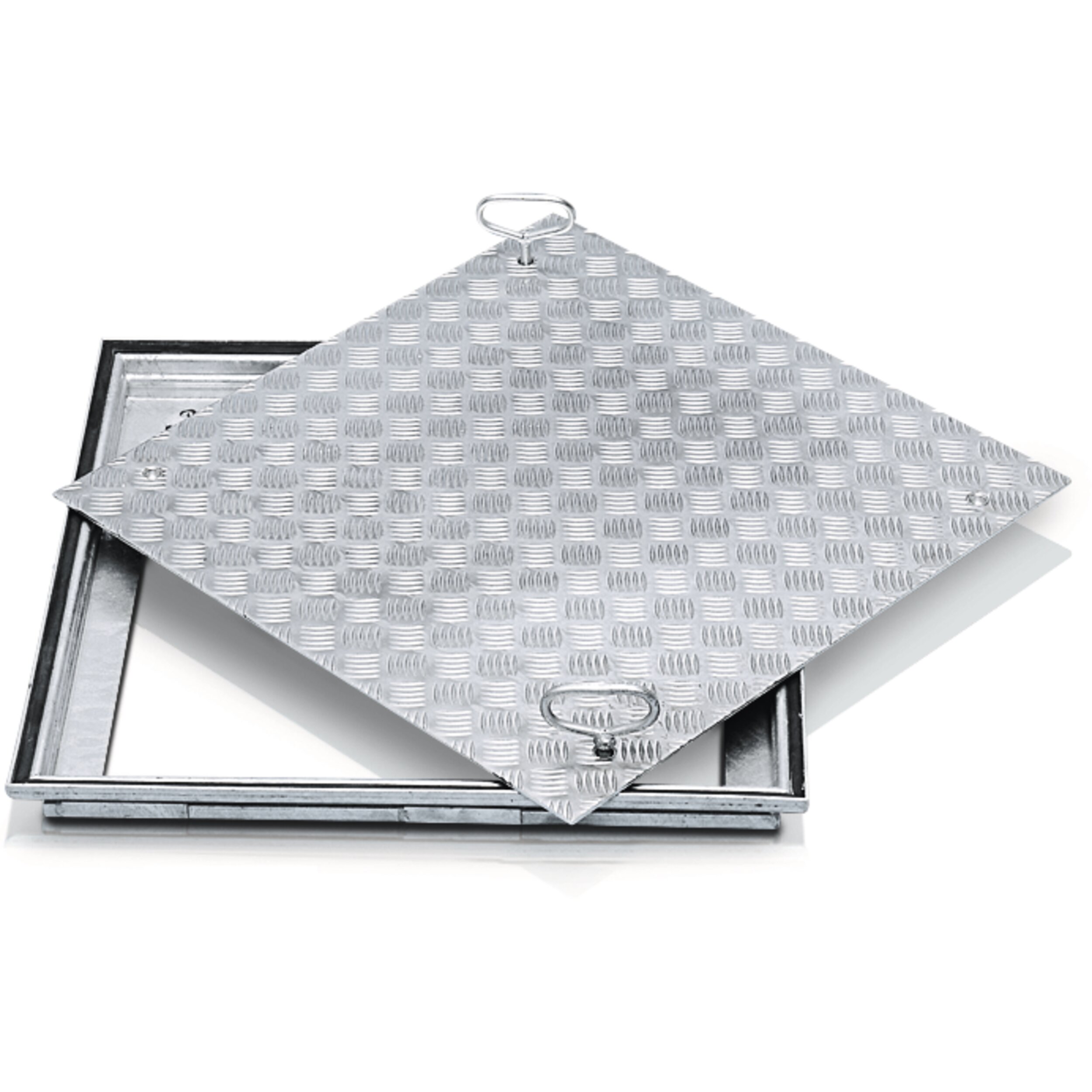

main product photo

Details

Walkable shaft covers with cover plate for indoor use.

  • Compliant with DIN EN 124 in conjunction with DIN 1229.
  • Tapered profile-section construction with multiple bolted joints.
  • Easy to open, no jamming.
  • EPDM seal (petrol-resistant seal available on request).
  • Odour-tight and impervious to surface water.
  • Load capacity of shaft cover with cover plate: test force 15 kN (= 1.5 t).
  • Incl. lift-out handles (pair) made from stainless steel, comprising one self-lifting opening handle and one lift-out handle.

More Information

More Information
Transport dimensions 760 mm × 760 mm × 70 mm
Outside dimensions max. L x W x H 760 mm × 760 mm
Inside shaft size 600mm × 600mm
Inside shaft width 600 mm
Inside shaft length 600 mm
Design height 63 mm
Order number 47096

Variants

Order number Inside shaft length Inside shaft size Inside shaft width Outside dimensions max. L x W x H Transport dimensions
47096 600 mm 600mm × 600mm 600 mm 760 mm × 760 mm 760 mm × 760 mm × 70 mm
47098 800 mm 800mm × 800mm 800 mm 960 mm × 960 mm 960 mm × 960 mm × 70 mm
47099 1000 mm 1.000mm × 1.000mm 1000 mm 1.160 mm × 1.160 mm 1.160 mm × 1.160 mm × 70 mm
