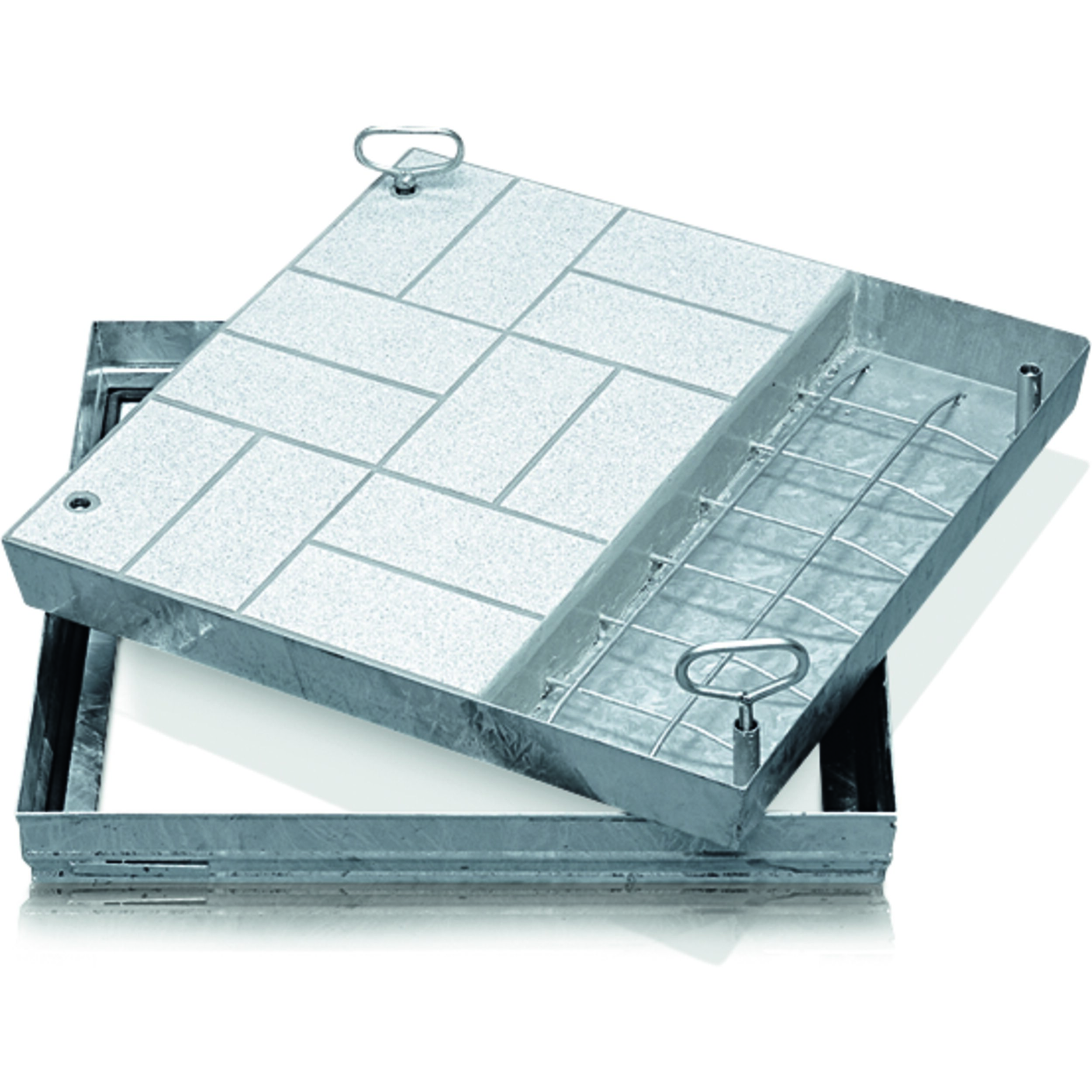

Stainless steel shaft covers with trough

SKU: 47062

Details

Walkable or drivable shaft covers with choice of surface for indoor and outdoor use.

  • Compliant with DIN EN 124 in conjunction with DIN 1229.
  • Tapered profile-section construction with multiple bolted joints.
  • Easy to open, no jamming.
  • Odour-tight and impervious to surface water.
  • Load capacity for shaft cover with cover trough: test force 125 kN (= 12.5 t), only after the cover trough has been filled with B 45 concrete (grain 0-8).
  • Incl. lift-out handles (pair) made from stainless steel, comprising one self-lifting opening handle and one lift-out handle.
  • Trough depth 80 mm (of which 40 mm covered with construction steel grating and 40 mm free area)

More Information

More Information
Order number 47062
Trough depth 80 mm
Outside dimensions L x W x H 620 mm × 620 mm
Transport dimensions 620 mm × 620 mm × 90 mm
Design height 90 mm
Inside shaft length 500 mm
Inside shaft size 500mm × 500mm
Inside shaft width 500 mm

Variants

Order number Inside shaft length Inside shaft size Inside shaft width Outside dimensions L x W x H Transport dimensions
47060 300 mm 300mm × 300mm 300 mm 420 mm × 420 mm 420 mm × 420 mm × 90 mm
47061 450 mm 450mm × 450mm 450 mm 570 mm × 570 mm 570 mm × 570 mm × 90 mm
47062 500 mm 500mm × 500mm 500 mm 620 mm × 620 mm 620 mm × 620 mm × 90 mm
47064 600 mm 600mm × 600mm 600 mm 720 mm × 720 mm 720 mm × 720 mm × 90 mm
47065 635 mm 635mm × 635mm 635 mm 755 mm × 755 mm 750 mm × 750 mm × 90 mm
47067 800 mm 800mm × 800mm 800 mm 920 mm × 920 mm 920 mm × 920 mm × 90 mm
47070 1000 mm 1.000mm × 1.000mm 1000 mm 1.120 mm × 1.120 mm 1.120 mm × 1.120 mm × 90 mm
