Trade swingback step

Details

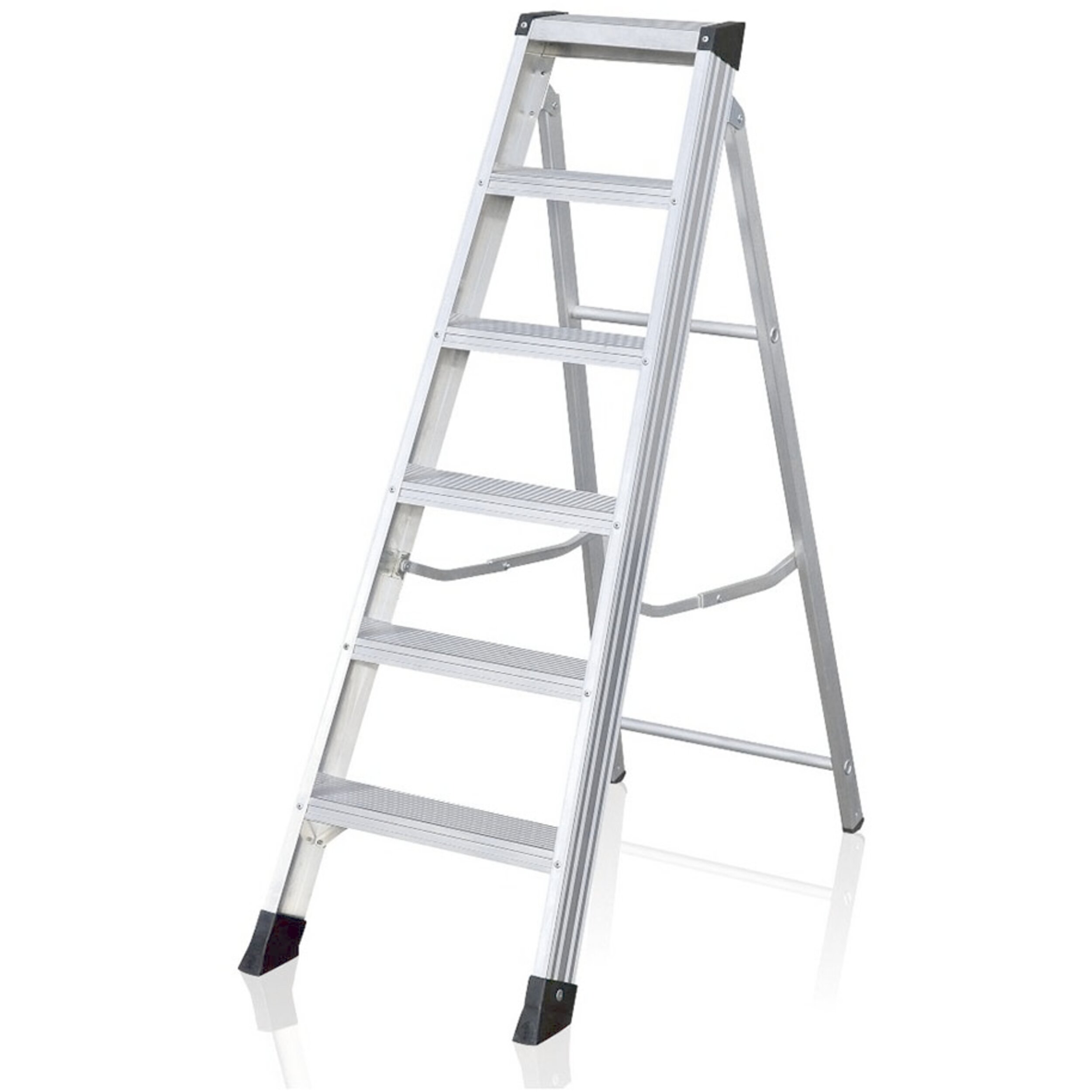

Economy range of Class 1 swingback steps.

  • Treads 85 mm deep for safe standing.
  • Rigid locking bar on both sides.
  • Non-slip plastic end caps.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Type of rungs/treads serrated
Anti-splay mechanism Rigid locking bar
Tread depth 85 mm
Connection between stiles and rungs/stiles riveted
Coating natural
Load max. 150 kg
Stile depth 82 mm
Stile depth 40 mm

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Stile depth Stile depth steps/back stay Vertical ladder height Weight
100505 0,85 m × 0,51 m 5 0,51 m 1,22 m 40 mm 82mm / 40mm 1,06 m 4,7 kg
100506 1 m × 0,51 m 6 0,51 m 1,45 m 40 mm 82mm / 40mm 1,27 m 5,5 kg
100508 1,31 m × 0,54 m 8 0,54 m 1,91 m 40 mm 82mm / 40mm 1,69 m 7,3 kg
100510 1,62 m × 0,59 m 10 0,59 m 2,37 m 40 mm 82mm / 40mm 2,11 m 9,5 kg
100512 1,92 m × 0,64 m 12 0,64 m 2,83 m 50 mm 82mm / 50mm 2,53 m 12 kg
