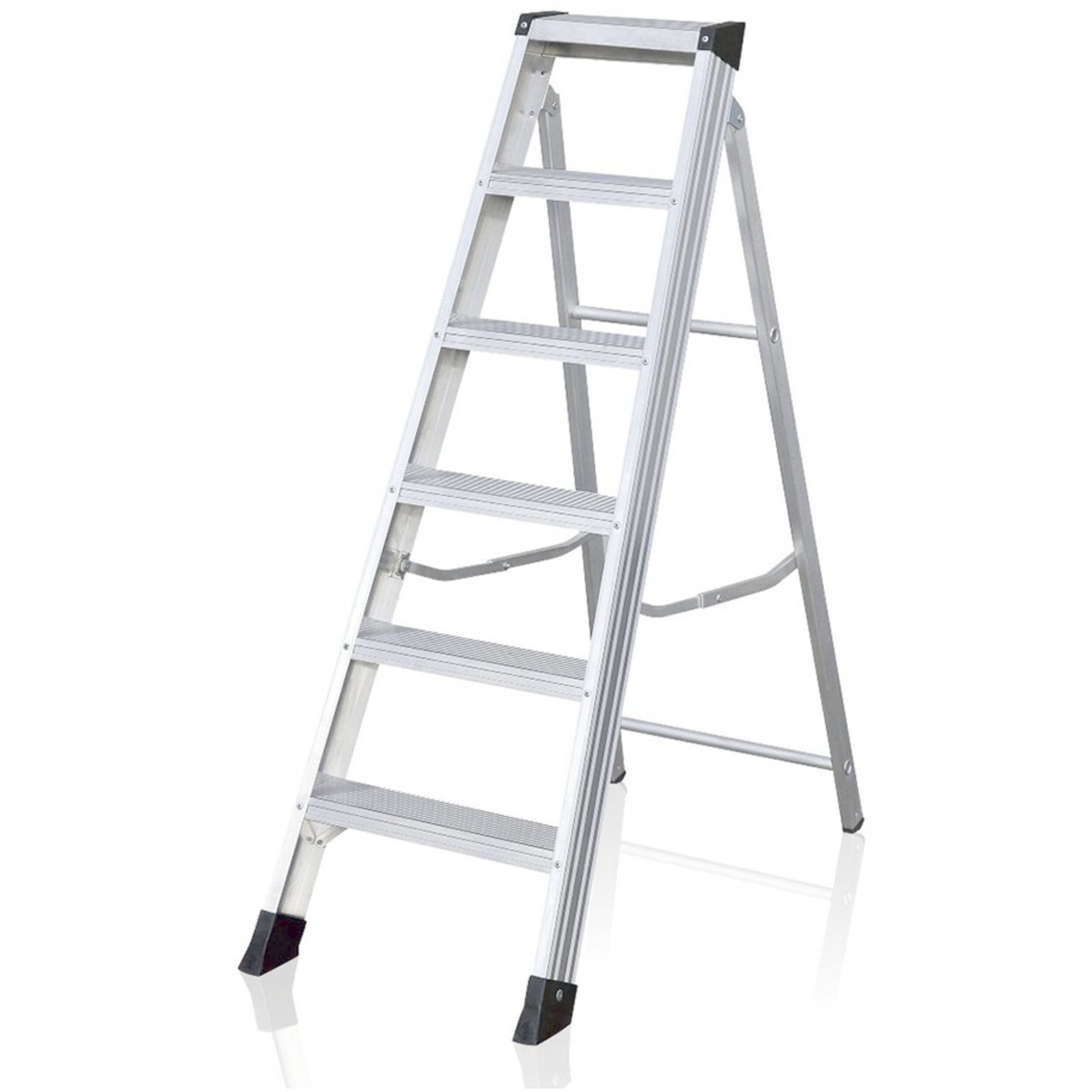

Trade swingback step

SKU: 100512

Details

Economy range of Class 1 swingback steps.

  • Treads 85 mm deep for safe standing.
  • Rigid locking bar on both sides.
  • Non-slip plastic end caps.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Warranty 10 years
Load capacity max. 150 kg
Anti-splay mechanism Rigid locking bar
Base 1,92 m × 0,64 m
Coating natural
Connection between stiles and rungs/stiles riveted
Tread depth 85 mm
Vertical ladder height 2.53 m
Stile depth steps/back stay 82mm / 50mm
Overall length 2.83 m
Number of rungs, incl. platform 12
Type of rungs/treads serrated
Weight 12 kg
Overall base width 0.64 m
Stile depth 82 mm
Stile depth 50 mm
length-area-base-td-met 1.92 m
width-area-base-td-met 0.64 m

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Stile depth Stile depth steps/back stay Vertical ladder height
100510 1,62 m × 0,59 m 10 0,59 m 2,37 m 40 mm 82mm / 40mm 2,11 m
100512 1,92 m × 0,64 m 12 0,64 m 2,83 m 50 mm 82mm / 50mm 2,53 m
