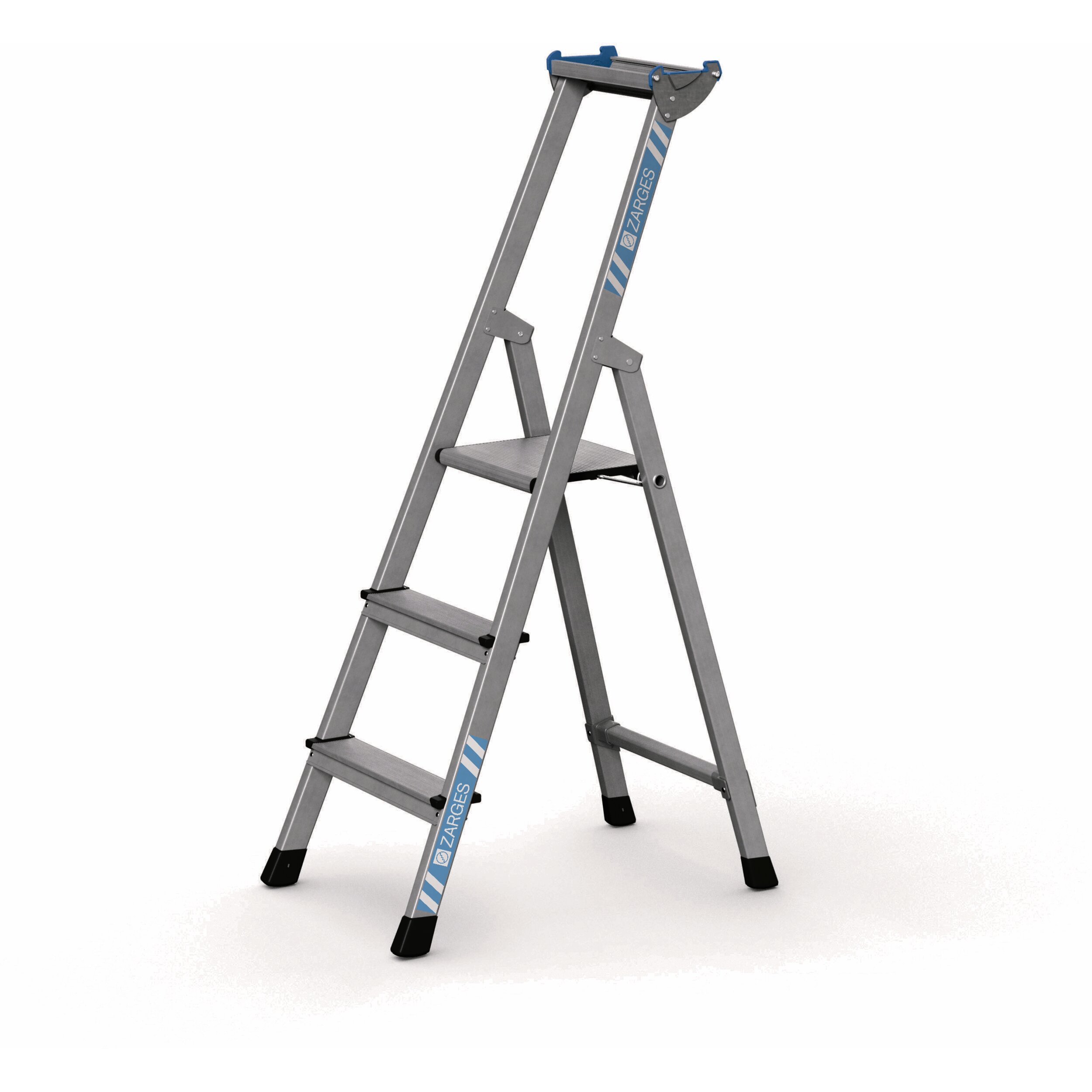

XLstep S

SKU: 41223

Details

Designed for frequent relocation: lightweight and durable, with a wide platform, a storage tray, and sturdy ladder end caps.

Designed for frequent relocation: lightweight and durable, with a wide platform, a storage tray, and sturdy ladder end caps.
Large platform that allows personnel to stand safely and comfortably even when working for extended periods.
Non-slip two-component ladder feet with a large contact surface.
Platform made from extruded aluminium (300 mm × 250 mm) for safe and comfortable standing even when working for longer periods of time.
Clean hands thanks to wear-resistant anodised stiles.
Spacious aluminum storage tray with plenty of room for tools and small parts.
Easy access up and down via sturdy 80-mm-deep treads.
Triple-riveted connection between rung and stile.
Sturdy design for daily use: platform and profiles made of extruded aluminum.

More Information
Product type	Riveted stepladder with treads
Anti-splay mechanism	Belt strap
Storage tray	aluminium
Coating	anodised
Connection between stiles and rungs/stiles	riveted
Type of rungs/treads	serrated
Vertical distance between each rung/tread	250 mm
Tread depth	80 mm
Warranty	10 years
Transport dimensions	approx. 1.560 mm × approx. 500 mm × approx. 155 mm
Stile depth steps/back stay	42mm / 42mm
Standards	EN 131 professional
Weight	6 kg
Stile depth	42 mm
Base	0,75 m × 0,5 m
Stile depth	42 mm
Platform width	300 mm
Platform length	250 mm
Vertical ladder height	1.42 m
Number of rungs, incl. platform	3
Overall base width	0.5 m
Working height	2.75 m
Overall length	1.56 m
Platform height	0.74 m
Certification	TÜV-SÜD
Load capacity	max. 150 kg
Material	aluminium
Number of rungs / treads	3

Order number	Anti-splay mechanism	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Stile depth	Stile depth steps/back stay	Transport dimensions	Vertical ladder height	Weight	Working height
41223		0,75 m × 0,5 m	3	0,5 m	1,56 m	0,74 m	42 mm	42mm / 42mm	approx. 1.560 mm × approx. 500 mm × approx. 155 mm	1,42 m	6 kg	2,75 m
41224	Belt strap	0,92 m × 0,53 m	4	0,53 m	1,83 m	0,99 m	42 mm	42mm / 42mm	approx. 1.830 mm × approx. 530 mm × approx. 155 mm	1,67 m	6,9 kg	3 m
41225	Belt strap	1,08 m × 0,56 m	5	0,56 m	2,1 m	1,24 m	42 mm	42mm / 42mm	approx. 2.100 mm × approx. 560 mm × approx. 155 mm	1,92 m	7,7 kg	3,25 m
41226	Belt strap	1,26 m × 0,59 m	6	0,59 m	2,37 m	1,49 m	48 mm	48mm / 42mm	approx. 2.370 mm × approx. 590 mm × approx. 155 mm	2,17 m	9,1 kg	3,5 m
41227	Belt strap	1,43 m × 0,62 m	7	0,62 m	2,64 m	1,74 m	48 mm	48mm / 42mm	approx. 2.640 mm × approx. 620 mm × approx. 155 mm	2,42 m	10,2 kg	3,75 m
41228	Belt strap	1,6 m × 0,65 m	8	0,65 m	2,91 m	1,99 m	48 mm	48mm / 42mm	approx. 2.910 mm × approx. 650 mm × approx. 155 mm	2,67 m	11,7 kg	4 m
41230	Belt strap	1,94 m × 0,7 m	10	0,7 m	3,45 m	2,49 m	48 mm	48mm / 42mm	approx. 3.450 mm × approx. 700 mm × approx. 155 mm	3,17 m	14,1 kg	4,5 m
