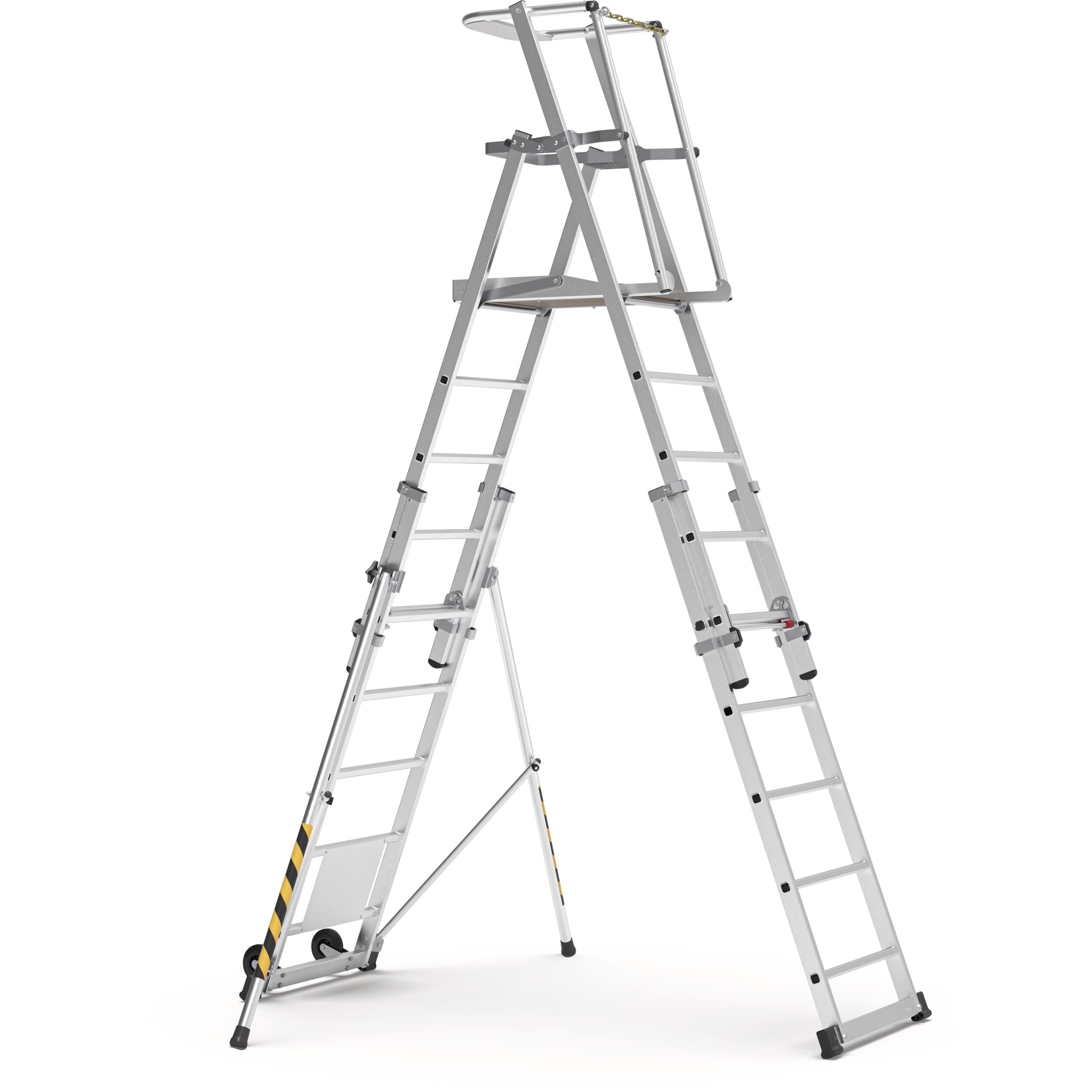

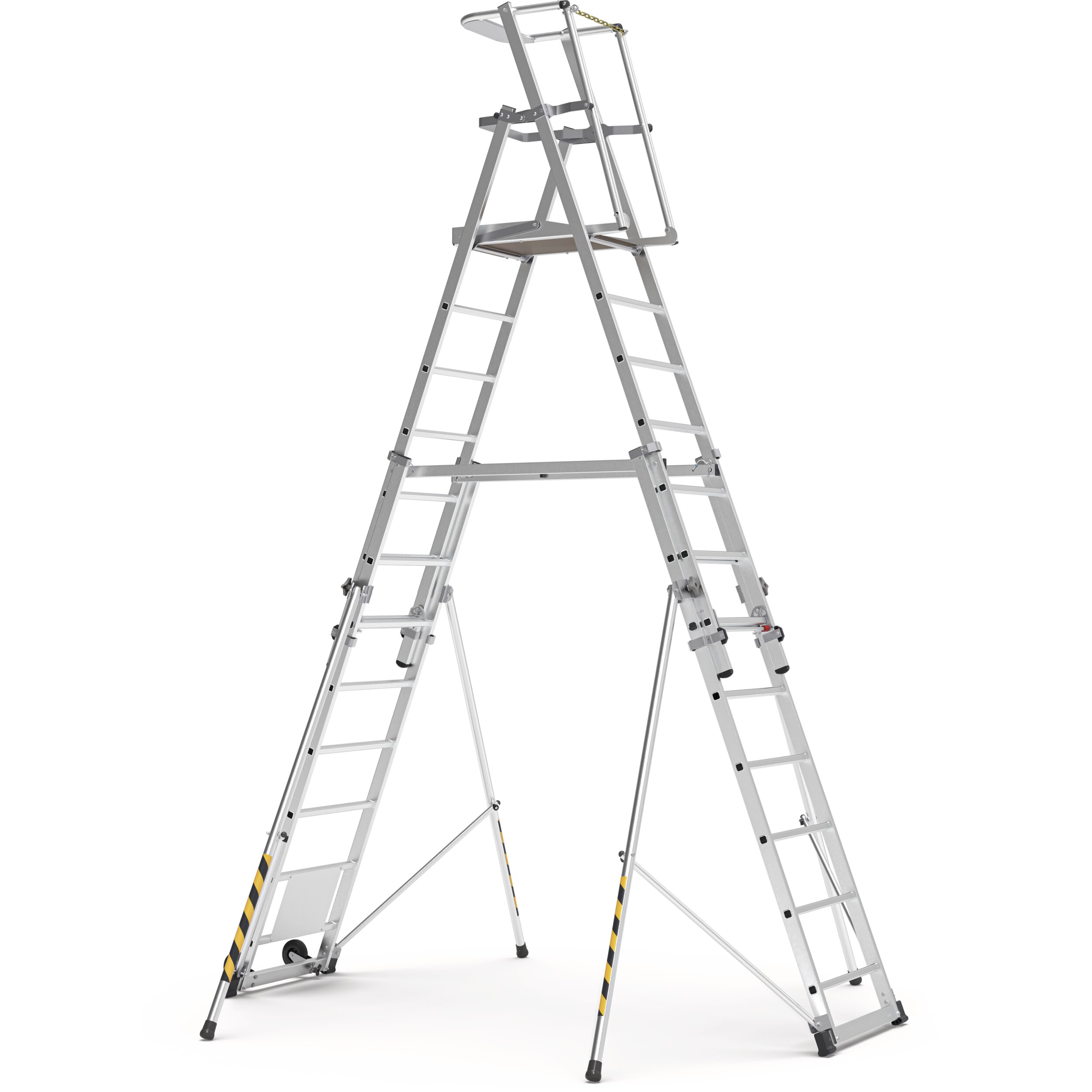

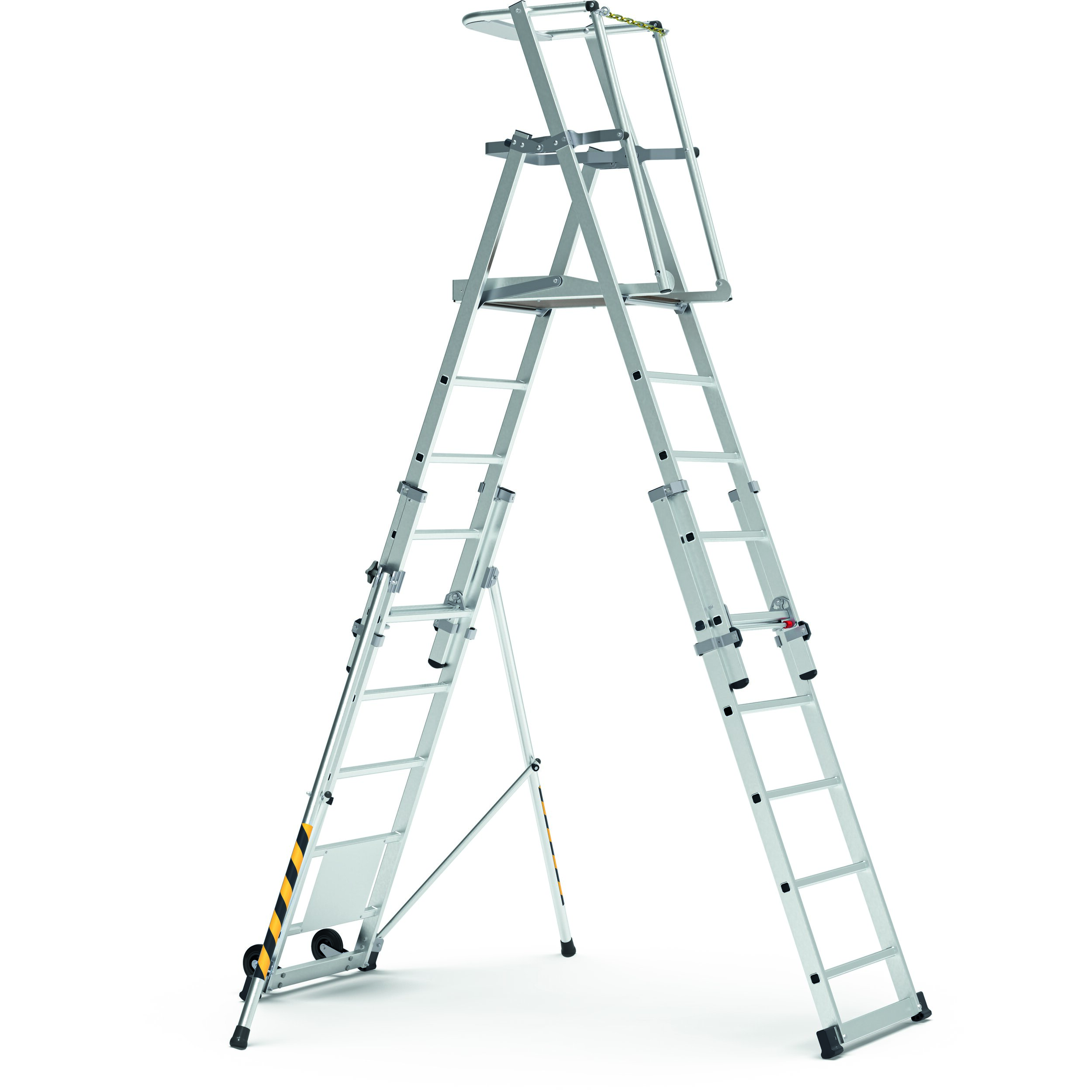

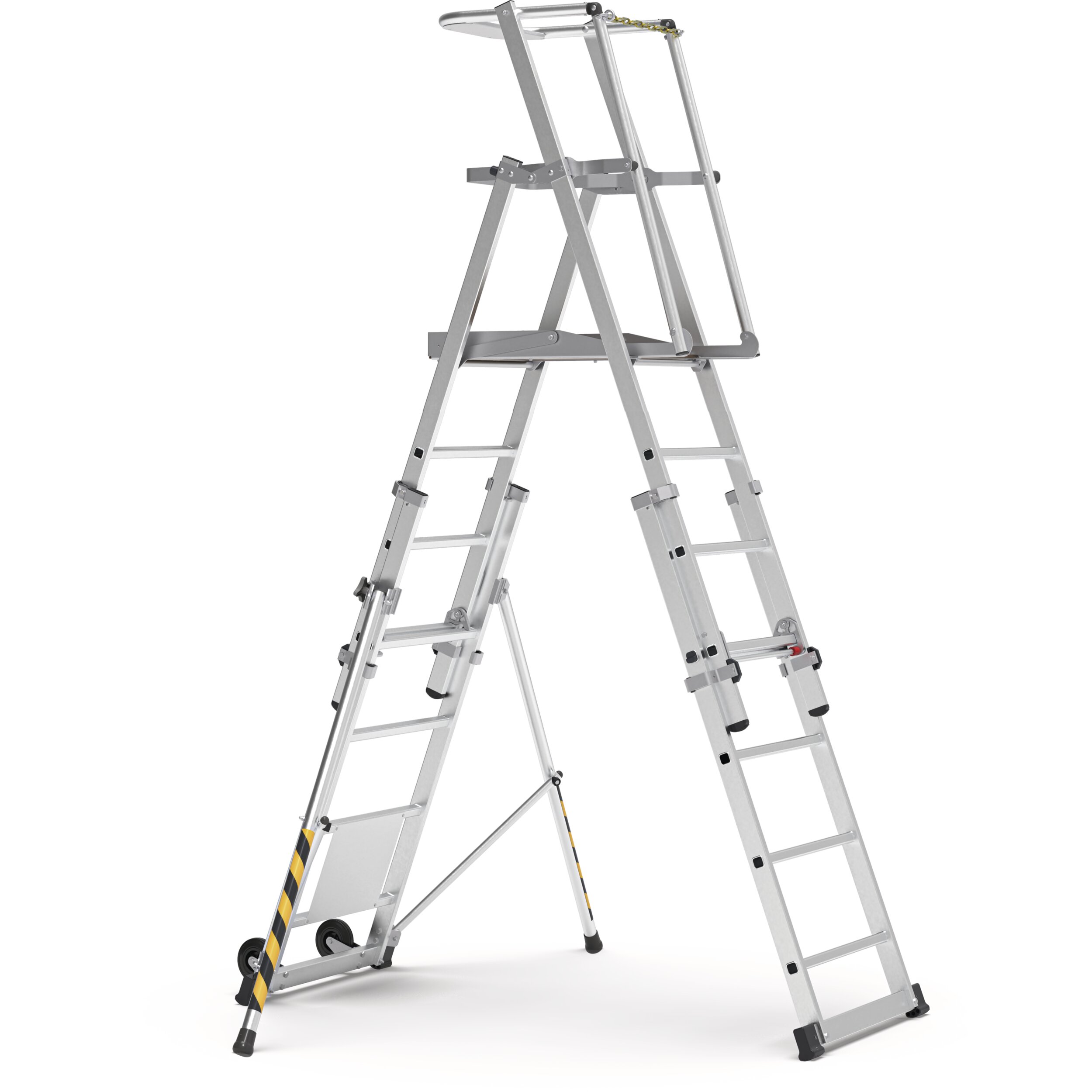

ZAP Telemaster S

Details

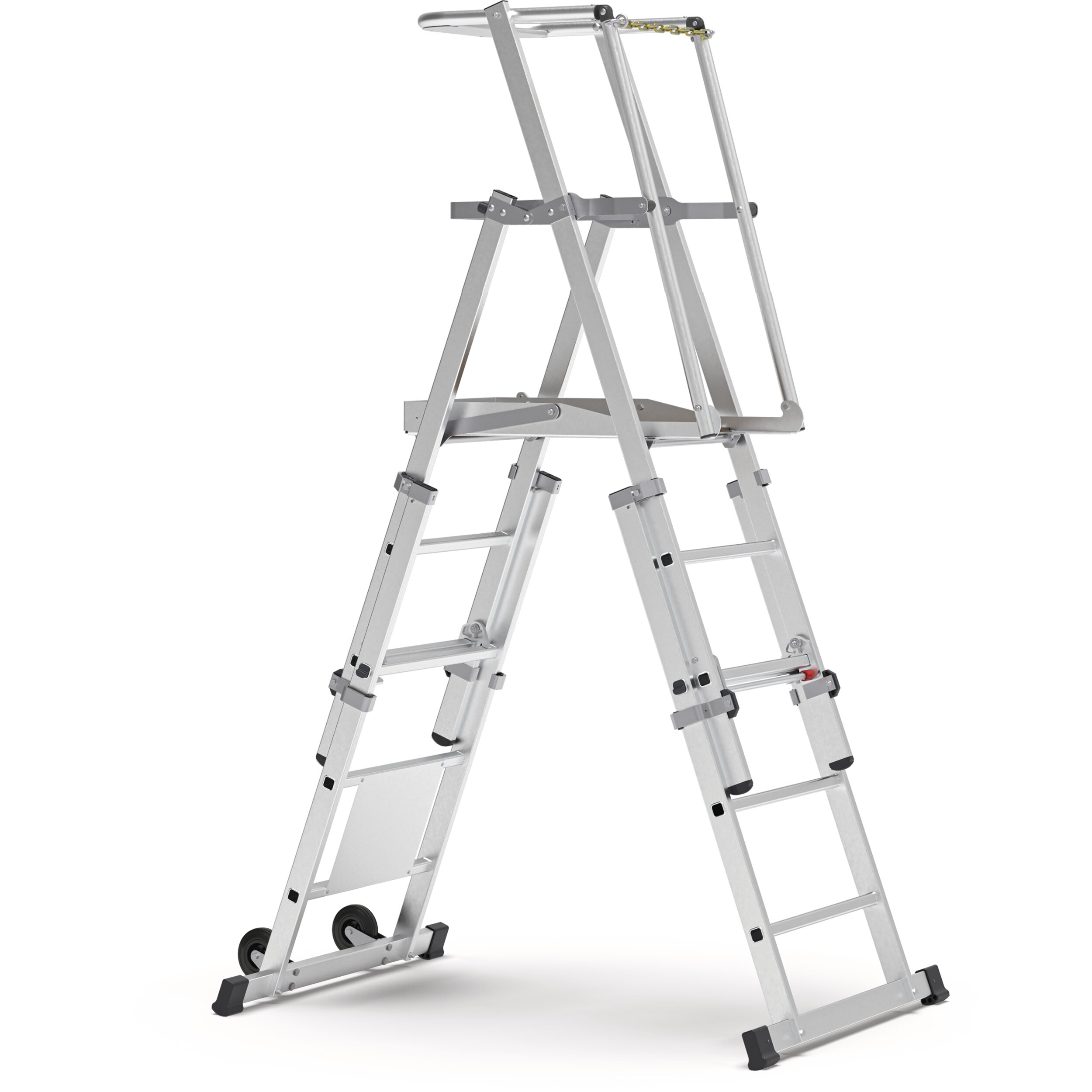

Secure and flexible: height adjustable platform with all-round railing for stability, easy to adjust with compact closed dimensions.

  • Height-adjustable platform with large standing surface and all-round railings for safe and comfortable footing.

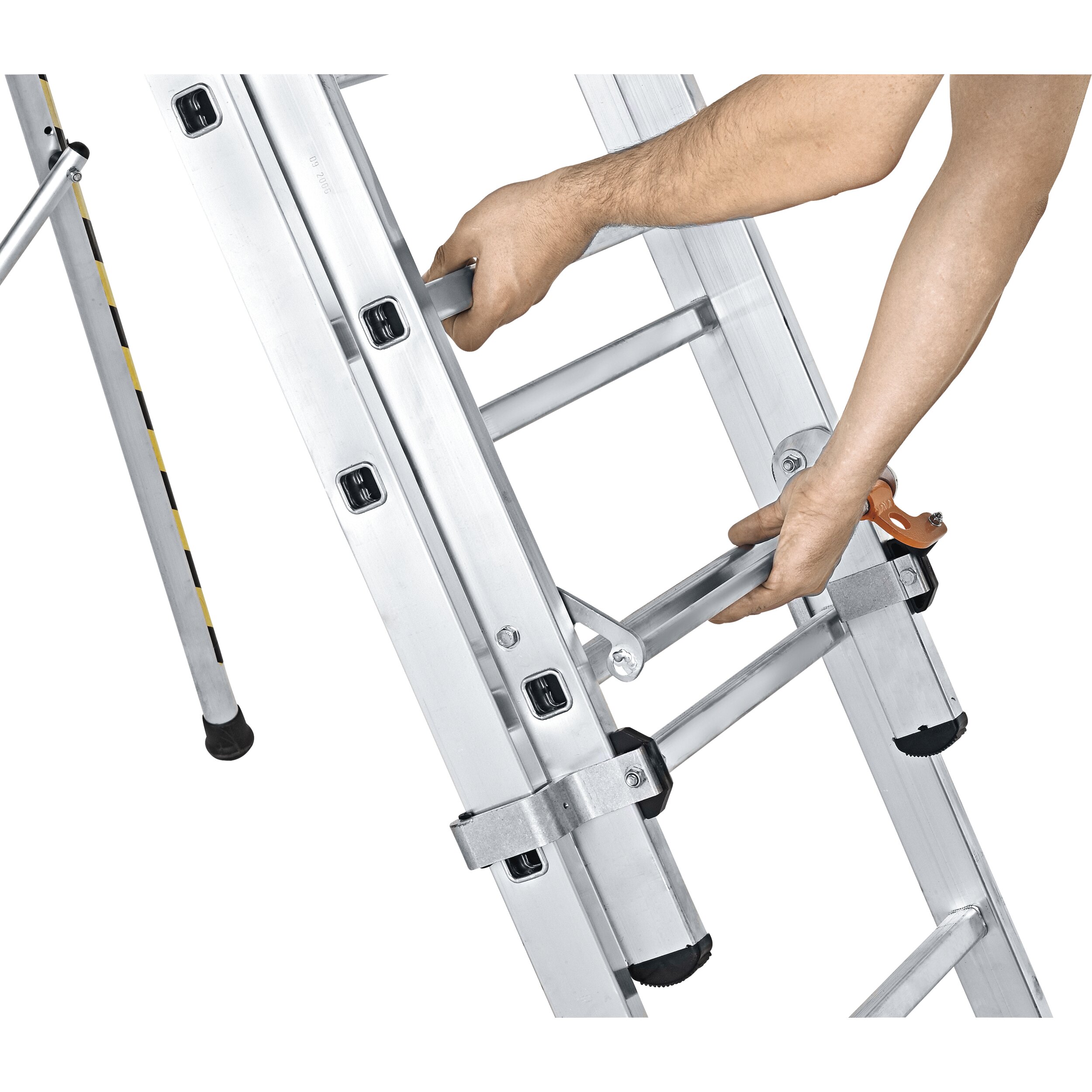

  • Simple height adjustment according to the push-up ladder principle, thus different heights can be obtained with only one platform ladder.
  • Very easy to erect - handrails and guardrails unfold automatically during erection.
  • Can be used on stairs and folded to a very compact size for transport and storage.
  • The two rear wheels make it easy to move.

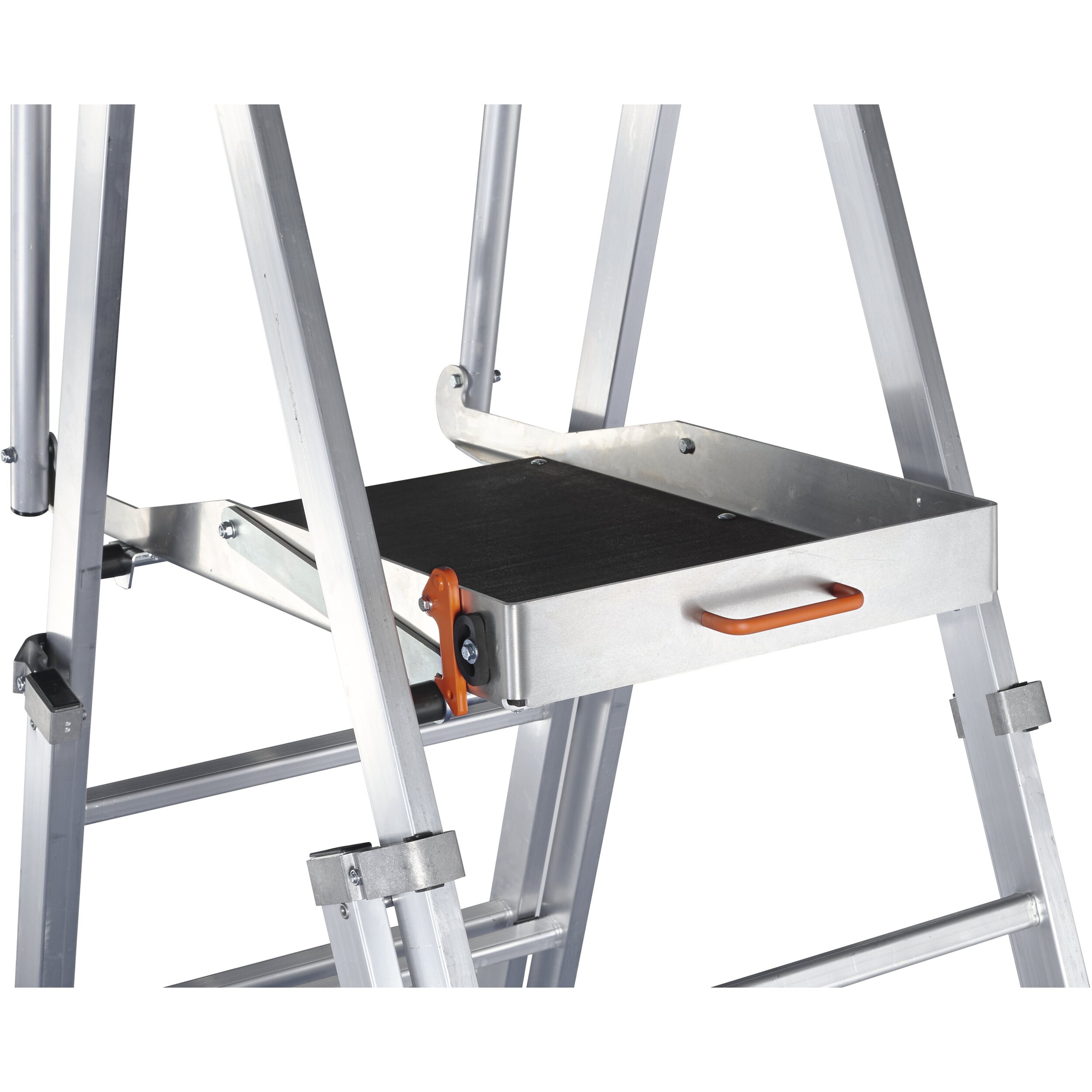

  • Large standing surface, 665 × 440 mm, made of 7-ply adhesive-bonded plywood board, with guardrail and knee bar, ensures maximum work safety and comfortable standing.
  • Complies with new European standard DIN EN 131-7.
  • Can be easily moved even when fully set up thanks to pair of wheels.
  • Compact dimensions when folded, therefore easy to transport and store.

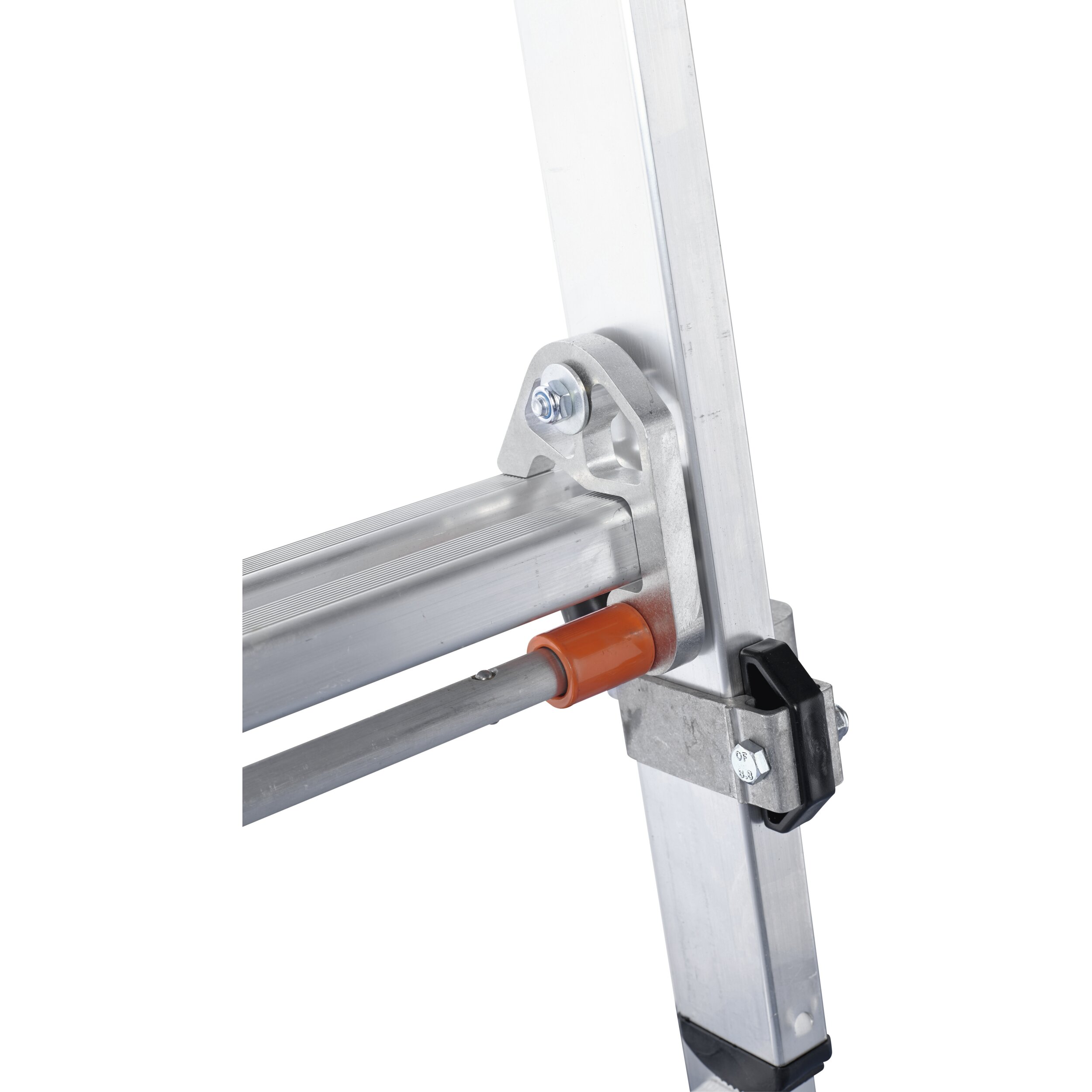

  • High strength, non-twist rung/stile connections.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping.
  • Can be used on steps/stairs.
  • Order No. 41325 without stabiliser.
  • Required number of ballast weights when used outdoors: 4x (order no. 41331).

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 665 mm
Load capacity max. 150 kg
Guardrail height 1 m
Platform material 7-layer laminated plywood
Platform width 440 mm
Tread depth 30 mm
Platform height Missing translation

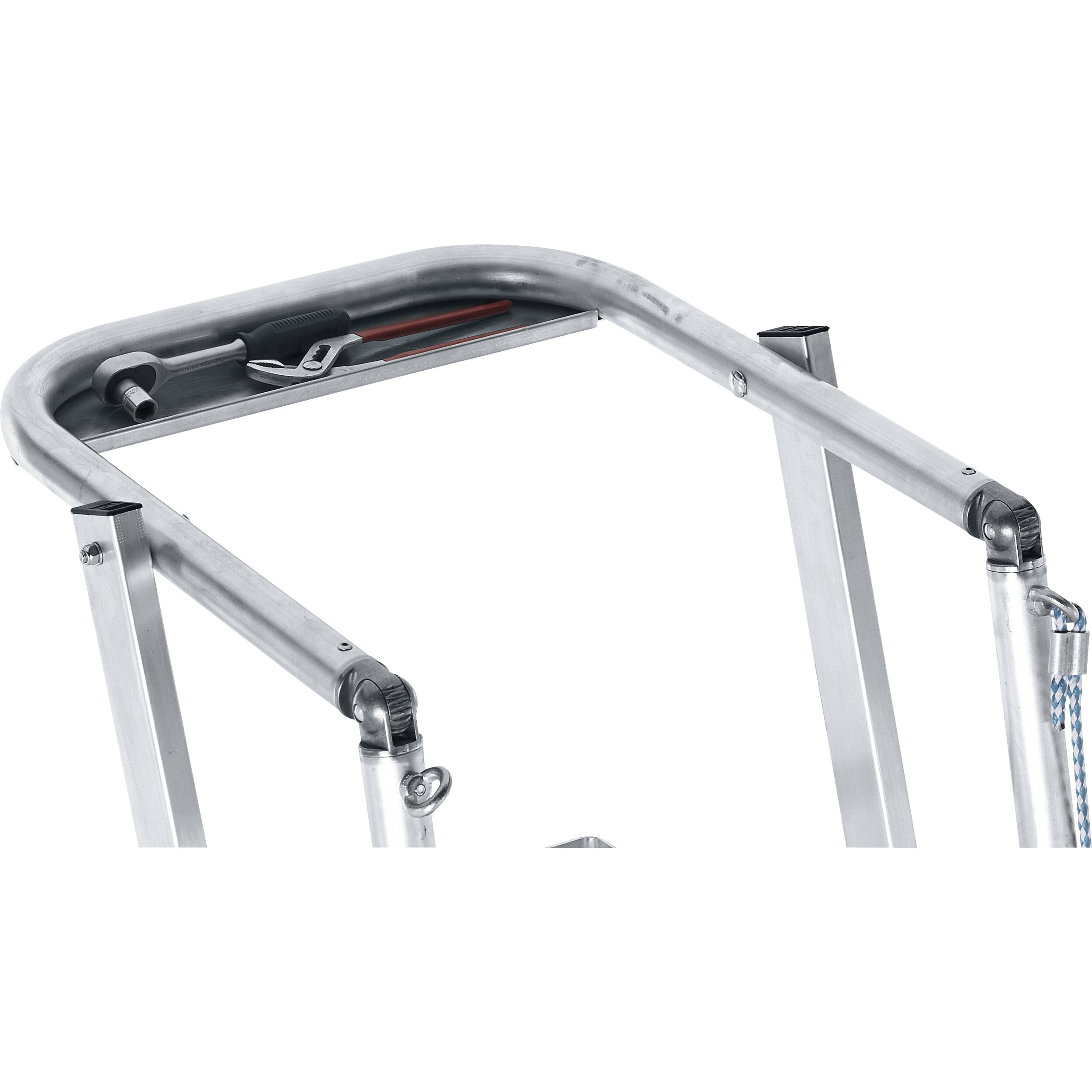

Storage tray aluminium
Product type Flanged telescopic platform ladder

Variants

Order number Dimensions, folded Footpoint, stabiliser rod extended L x W Footpoint, stabiliser rod retracted L x W Height including railing No. of rungs incl. platform Platform height Transport dimensions Weight Width Width, extended Width, retracted Working height closed length extended length
41325 0,4 m × 2,16 m × 1,02 m 1,45m × 1 m 1,45m × 1 m max. 2,37 m 5 0,81m / 1,08m / 1,34m 2.160 mm × 1.020 mm × 400 mm 28 kg 2,16 m 1 m 1 m 3,34 m 1,45 m 1,45 m
41326 0,4 m × 2,44 m × 0,81 m 1,8m × 2,25 m 1,8m × 0,81 m max. 2,86 m 7 1,05m / 1,3m / 1,6m / 1,83m 2.440 mm × 820 mm × 400 mm 34 kg 2,44 m 2,25 m 0,81 m 3,83 m 1,8 m 1,8 m
41327 0,4 m × 2,72 m × 0,81 m 2,2m × 2,55 m 2,2m × 0,81 m max. 3,38 m 9 1,31m / 1,6m / 1,8m / 2,1m / 2,35m 2.720 mm × 820 mm × 400 mm 38,5 kg 2,72 m 2,55 m 0,81 m 4,35 m 2,2 m 2,2 m
41328 0,4 m × 3,28 m × 0,81 m 2,8m × 2,5 m 2,8m × 0,81 m max. 4,17 m 12 1,83m / 2,12m / 2,38m / 2,65m / 2,9m / 3,15m 3.280 mm × 820 mm × 400 mm 50 kg 3,28 m 2,5 m 0,81 m 5,15 m 2,8 m 2,8 m
