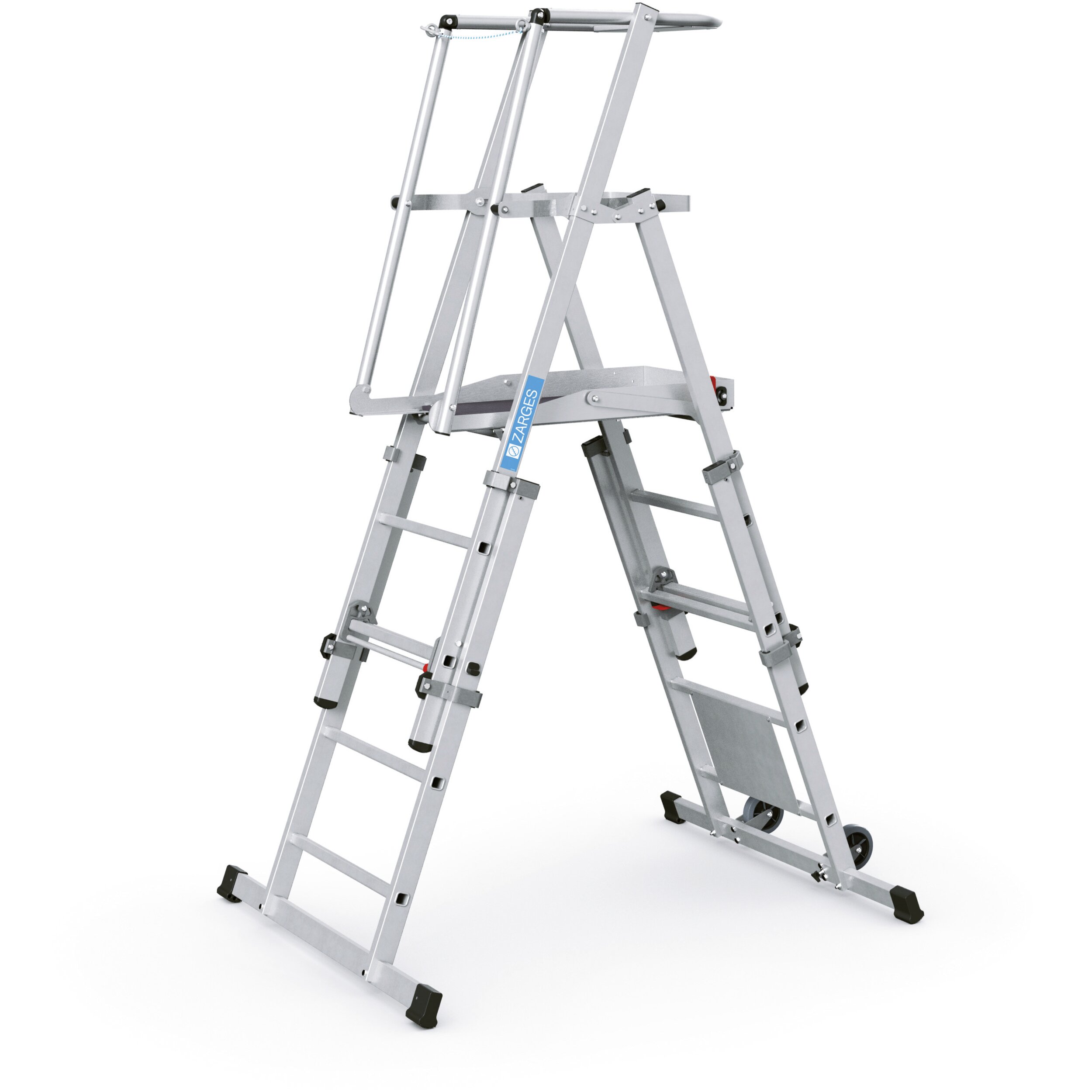

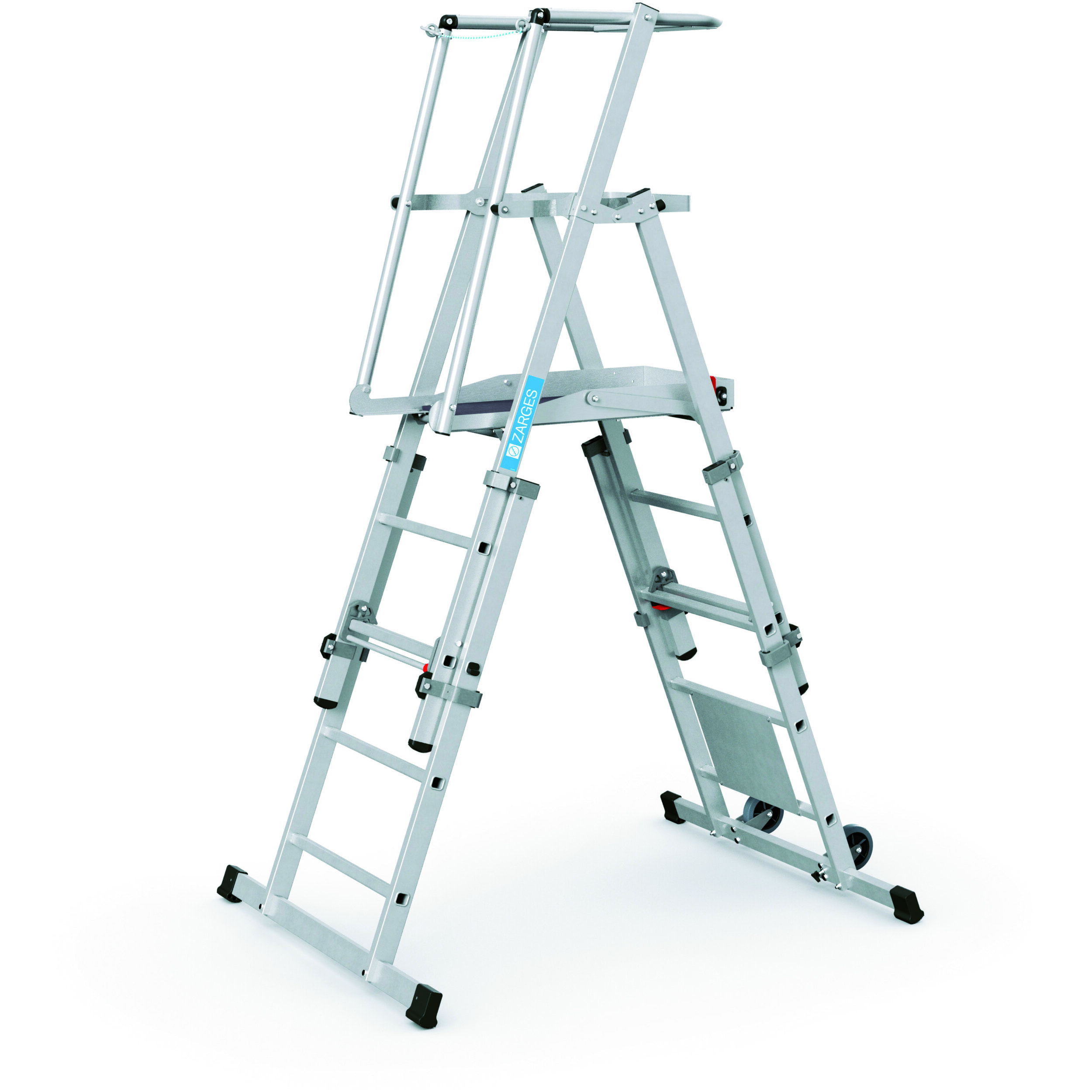

ZAP Telemaster S

SKU: 41325

Details

Secure and flexible: height adjustable platform with all-round railing for stability, easy to adjust with compact closed dimensions.

  • Height-adjustable platform with large standing surface and all-round railings for safe and comfortable footing.
  • Simple height adjustment according to the push-up ladder principle, thus different heights can be obtained with only one platform ladder.
  • Very easy to erect - handrails and guardrails unfold automatically during erection.
  • Can be used on stairs and folded to a very compact size for transport and storage.
  • The two rear wheels make it easy to move.
  • Large standing surface, 665 × 440 mm, made of 7-ply adhesive-bonded plywood board, with guardrail and knee bar, ensures maximum work safety and comfortable standing.
  • Complies with new European standard DIN EN 131-7.
  • Can be easily moved even when fully set up thanks to pair of wheels.
  • Compact dimensions when folded, therefore easy to transport and store.
  • High strength, non-twist rung/stile connections.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping.
  • Can be used on steps/stairs.
  • Order No. 41325 without stabiliser.
  • Required number of ballast weights when used outdoors: 4x (order no. 41331).

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 665 mm
Length 0.4 m
Load capacity max. 150 kg
Guardrail height 1 m
Platform material 7-layer laminated plywood
Platform width 440 mm
Footpoint, stabiliser rod extended L x W 1,45m × 1 m
Footpoint, stabiliser rod retracted L x W 1,45m × 1 m
Tread depth 30 mm
Dimensions, folded 0,4 m × 2,16 m × 1,02 m
Transport dimensions 2.160 mm × 1.020 mm × 400 mm
Height including railing max. 2.37 m
Platform height 0,81m / 1,08m / 1,34m
Working height 3.34 m
extended length 1.45 m
closed length 1.45 m
Storage tray aluminium
No. of rungs incl. platform 5
Product type Flanged telescopic platform ladder
Weight 28 kg
Width, extended 1 m
Width, retracted 1 m
Width 2.16 m

Variants

Order number Footpoint, stabiliser rod extended L x W Footpoint, stabiliser rod retracted L x W Height including railing No. of rungs incl. platform Platform height Transport dimensions Weight Width Width, extended Width, retracted Working height closed length extended length
41325 1,45m × 1 m 1,45m × 1 m max. 2,37 m 5 0,81m / 1,08m / 1,34m 2.160 mm × 1.020 mm × 400 mm 28 kg 2,16 m 1 m 1 m 3,34 m 1,45 m 1,45 m
41326 1,8m × 2,25 m 1,8m × 0,81 m max. 2,86 m 7 1,05m / 1,3m / 1,6m / 1,83m 2.440 mm × 820 mm × 400 mm 34 kg 2,44 m 2,25 m 0,81 m 3,83 m 1,8 m 1,8 m
41327 2,2m × 2,55 m 2,2m × 0,81 m max. 3,38 m 9 1,31m / 1,6m / 1,8m / 2,1m / 2,35m 2.720 mm × 820 mm × 400 mm 38,5 kg 2,72 m 2,55 m 0,81 m 4,35 m 2,2 m 2,2 m
41328 2,8m × 2,5 m 2,8m × 0,81 m max. 4,17 m 12 1,83m / 2,12m / 2,38m / 2,65m / 2,9m / 3,15m 3.280 mm × 820 mm × 400 mm 50 kg 3,28 m 2,5 m 0,81 m 5,15 m 2,8 m 2,8 m
