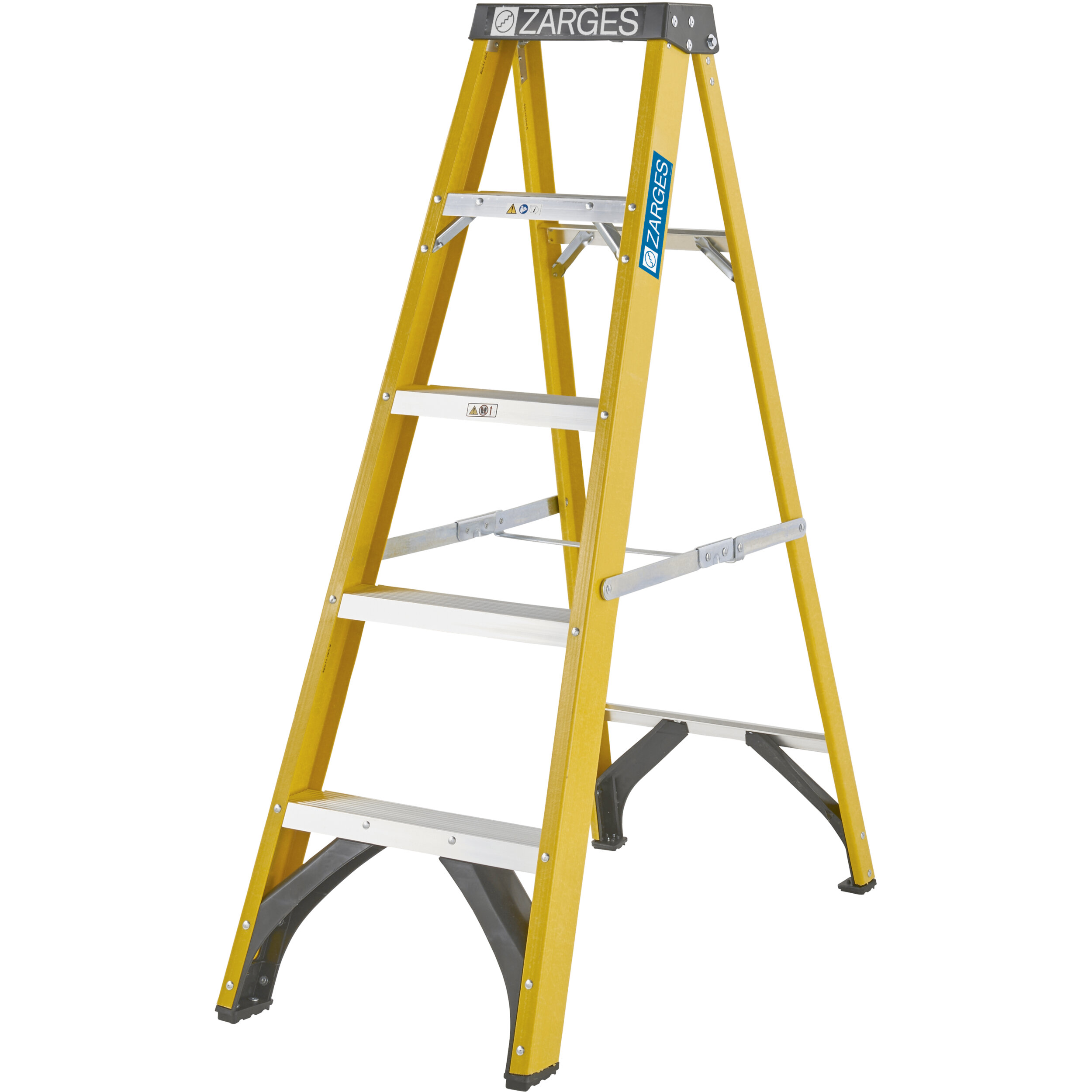

GRP Swingback Step

Details

Ideal for use near electrical hazards.

  • High level of protection provided for working on electrical installations thanks to insulated stiles made from glass-fire-reinforced plastic.

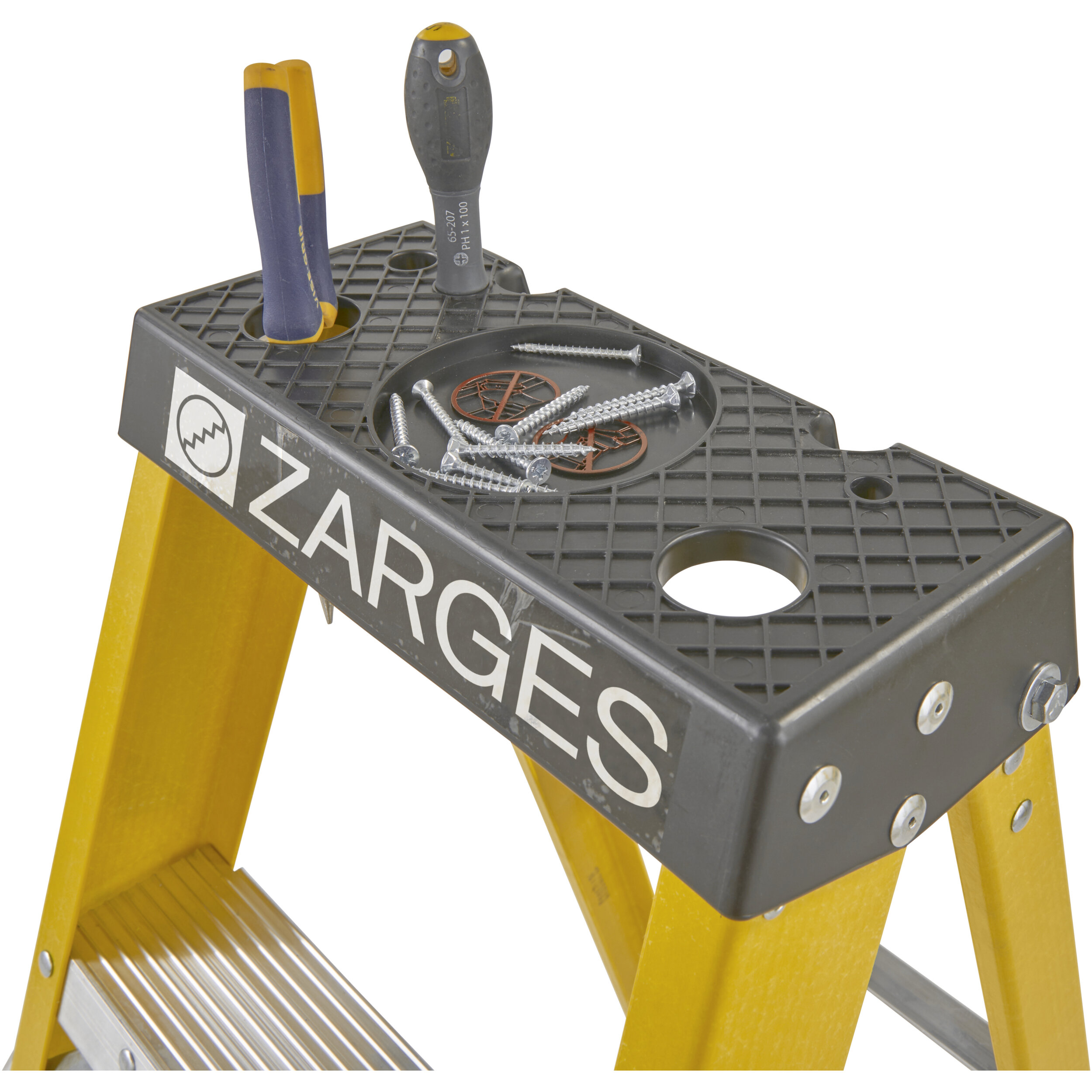

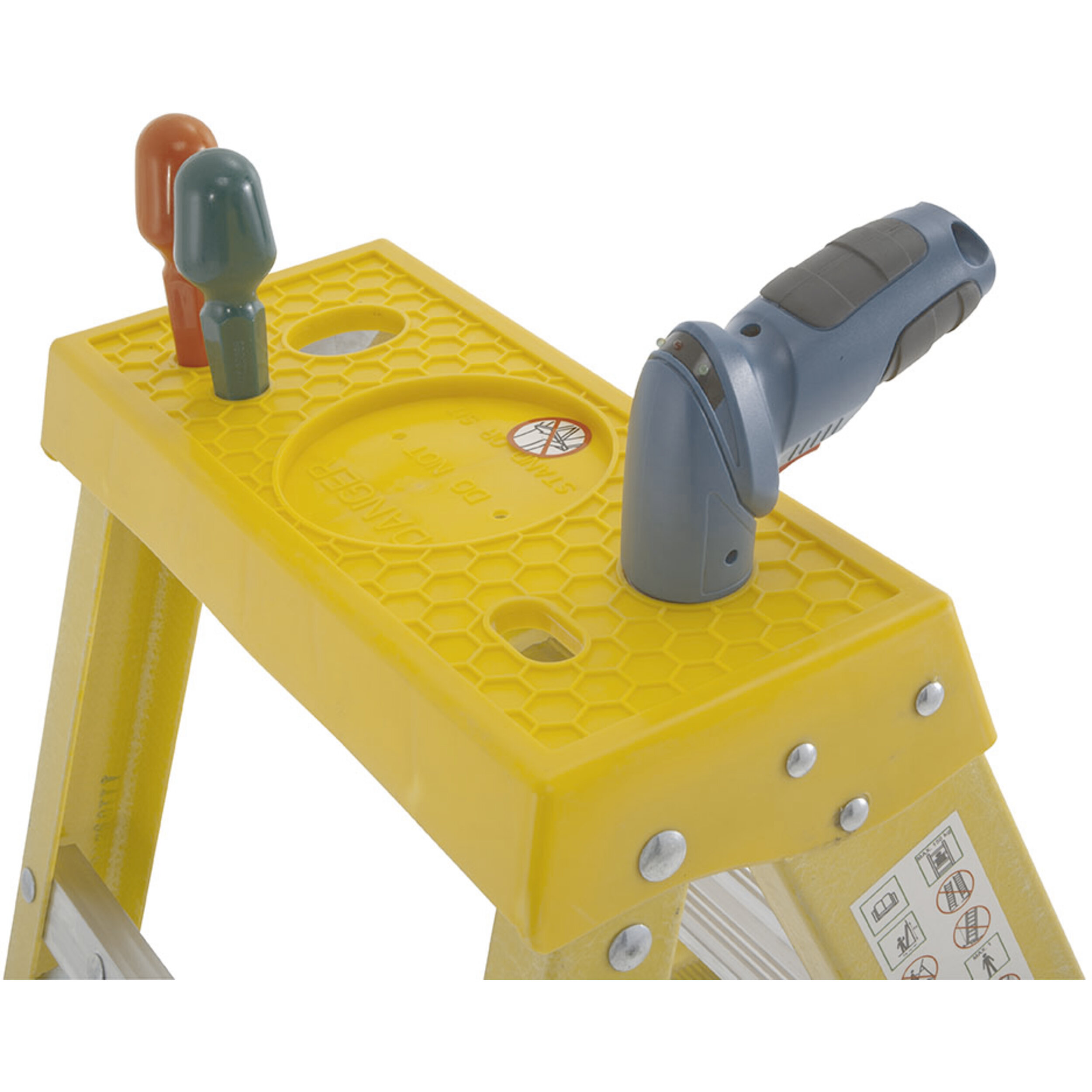

  • Practical storage tray with plenty of space for tools and small parts.
  • Rigid locking bar on both sides.
  • Double-riveted connection between rung and stile.
  • Non-slip plastic end caps.

More Information

More Information
Anti-splay mechanism Rigid locking bar
Connection between stiles and rungs/stiles riveted
Load max. 150 kg
Material Aluminium / plastic
Storage tray Plastic
Type of rungs/treads serrated
Stile depth 80 mm
Stile depth 48 mm

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Vertical ladder height Weight
300514 0,85 m × 0,48 m 4 0,48 m 1,2 m 1,05 m 6,1 kg
300515 1,05 m × 0,52 m 5 0,52 m 1,5 m 1,33 m 7,5 kg
300516 1,25 m × 0,55 m 6 0,55 m 1,8 m 1,6 m 8,7 kg
300517 1,45 m × 0,59 m 7 0,59 m 2,1 m 1,87 m 10,5 kg
300518 1,64 m × 0,63 m 8 0,63 m 2,4 m 2,15 m 11,6 kg
300520 1,84 m × 0,7 m 10 0,7 m 2,73 m 2,71 m 14,9 kg
