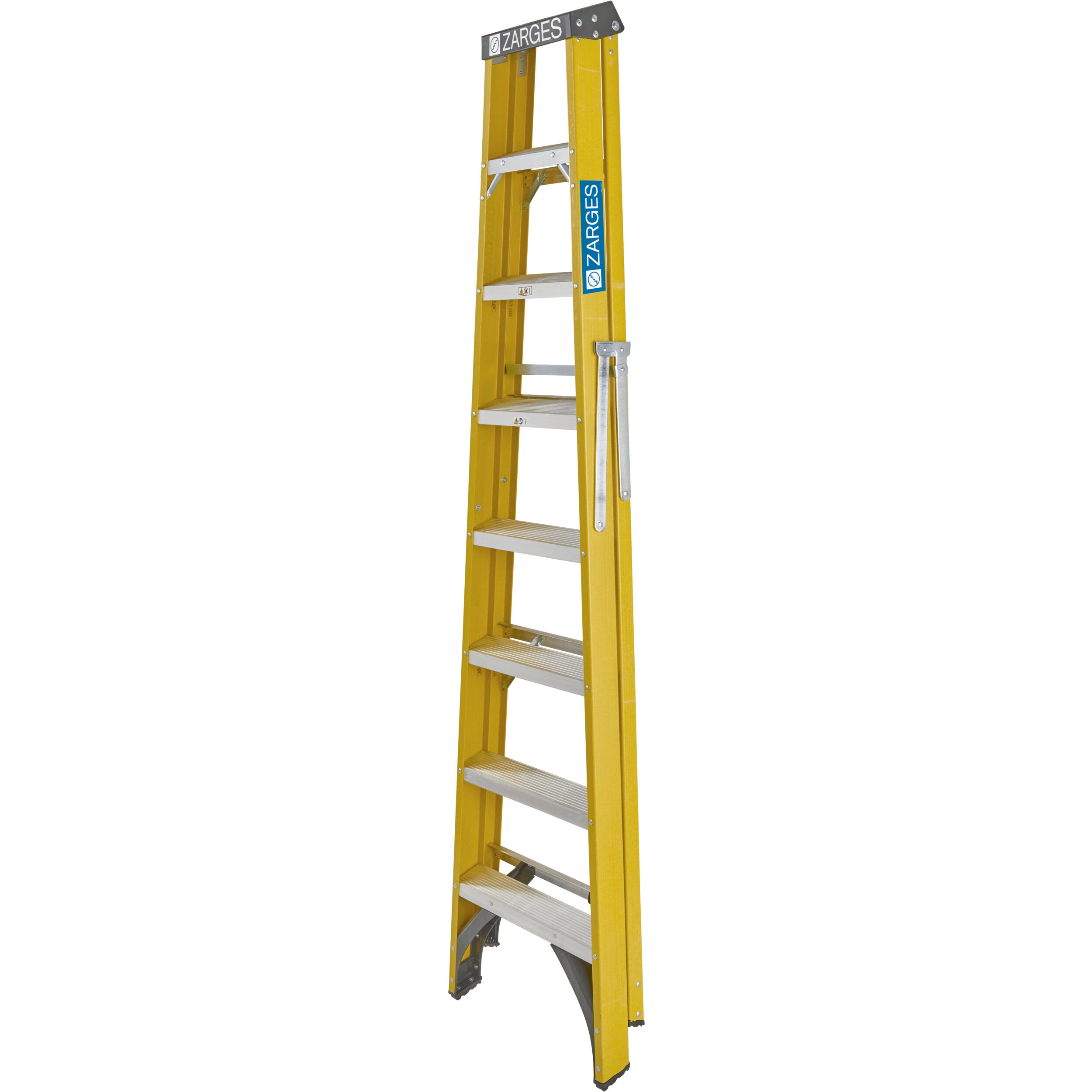

GRP Swingback Step

SKU: 300518

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents
main product photo

Details

Ideal for use near electrical hazards.

  • High level of protection provided for working on electrical installations thanks to insulated stiles made from glass-fire-reinforced plastic.
  • Practical storage tray with plenty of space for tools and small parts.
  • Rigid locking bar on both sides.
  • Double-riveted connection between rung and stile.
  • Non-slip plastic end caps.

More Information

More Information
Material Aluminium / plastic
Warranty 10 years
Load capacity max. 150 kg
Anti-splay mechanism Rigid locking bar
Base 1,64 m × 0,63 m
Connection between stiles and rungs/stiles riveted
Vertical ladder height 2.15 m
Stile depth steps/back stay 80mm / 48mm
Overall length 2.4 m
Storage tray Plastic
Number of rungs, incl. platform 8
Type of rungs/treads serrated
Weight 11.6 kg
Overall base width 0.63 m
Stile depth 80 mm
Stile depth 48 mm
length-area-base-td-met 1.64 m
width-area-base-td-met 0.63 m

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Vertical ladder height
300514 0,85 m × 0,48 m 4 0,48 m 1,2 m 1,05 m
300515 1,05 m × 0,52 m 5 0,52 m 1,5 m 1,33 m
300516 1,25 m × 0,55 m 6 0,55 m 1,8 m 1,6 m
300517 1,45 m × 0,59 m 7 0,59 m 2,1 m 1,87 m
300518 1,64 m × 0,63 m 8 0,63 m 2,4 m 2,15 m
300520 1,84 m × 0,7 m 10 0,7 m 2,73 m 2,71 m
