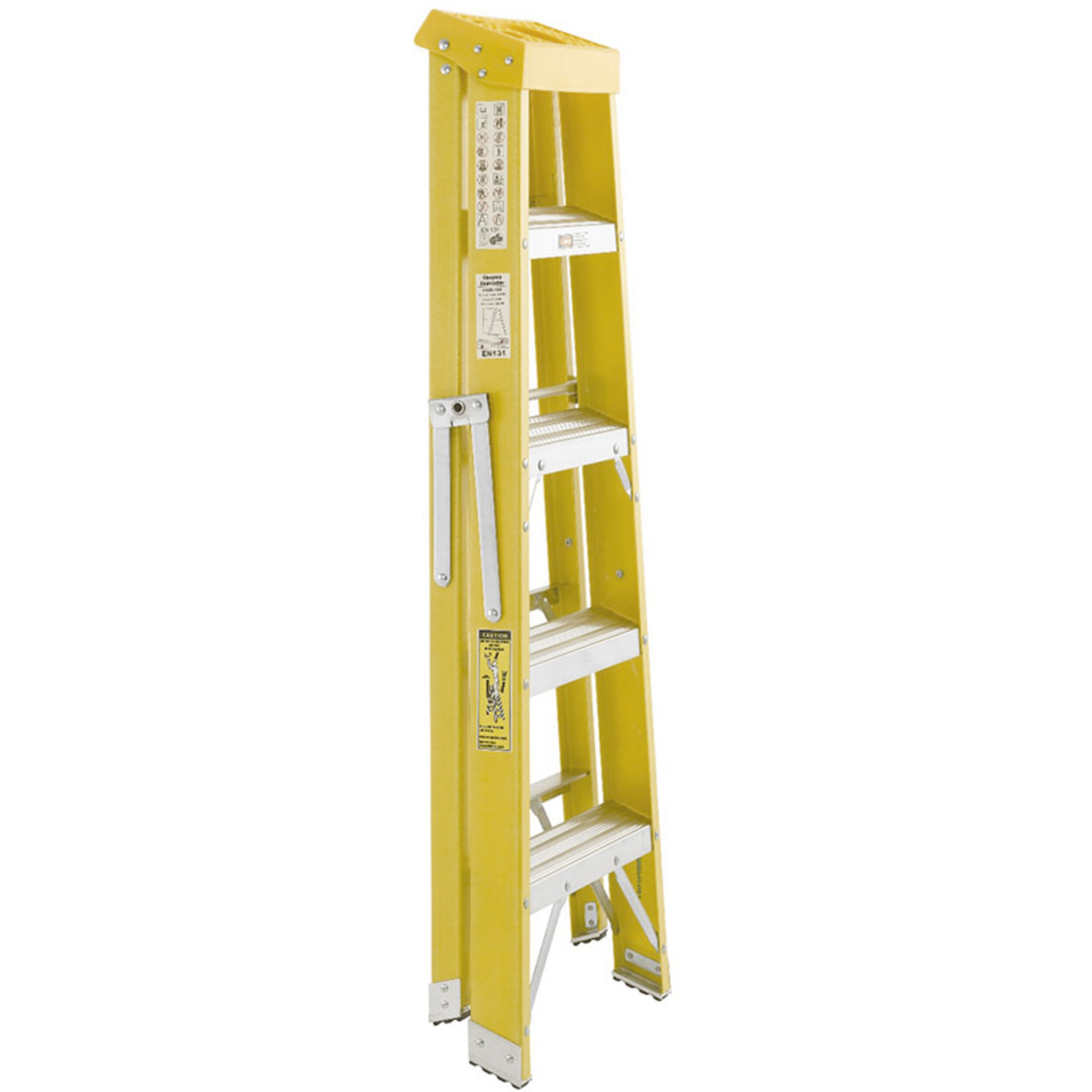

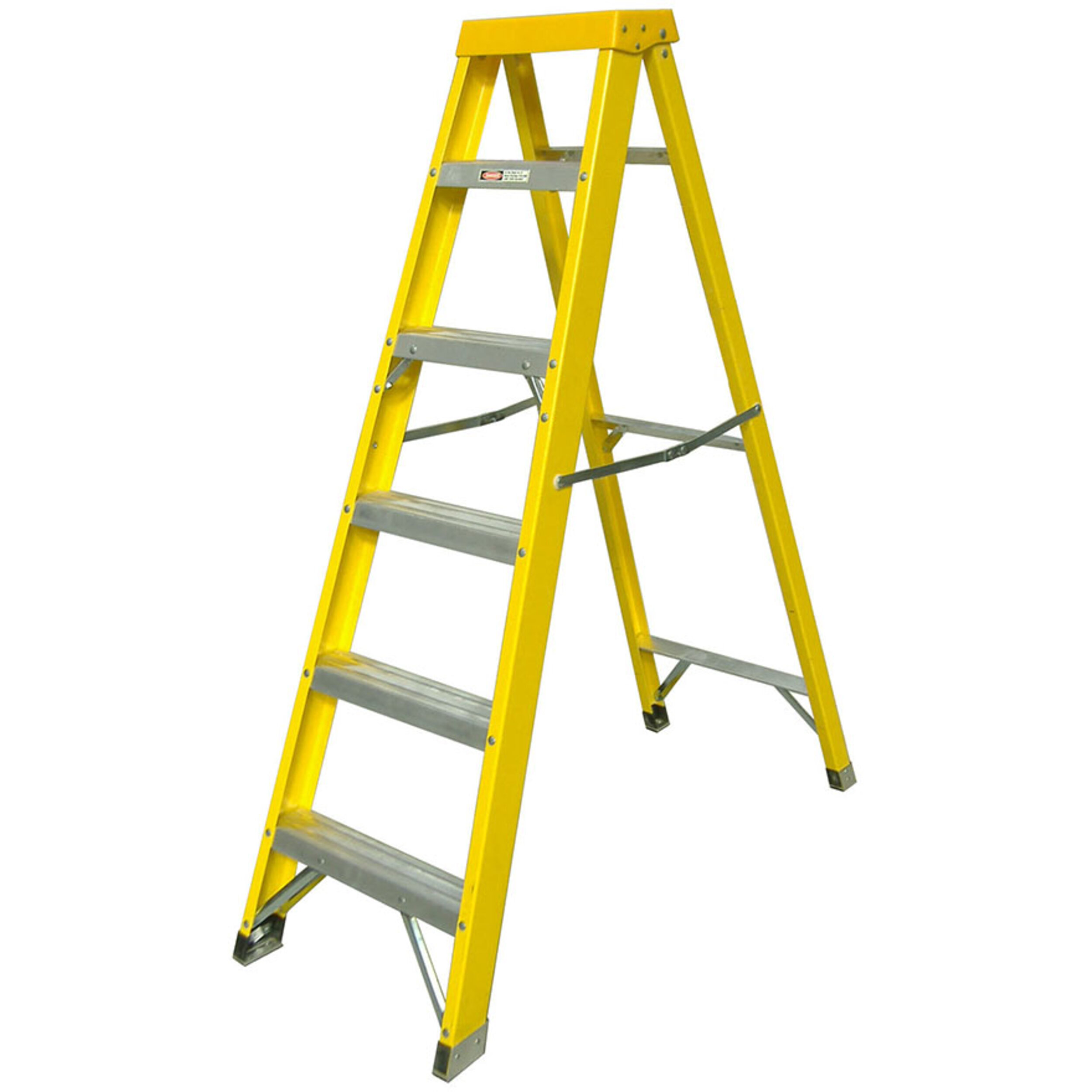

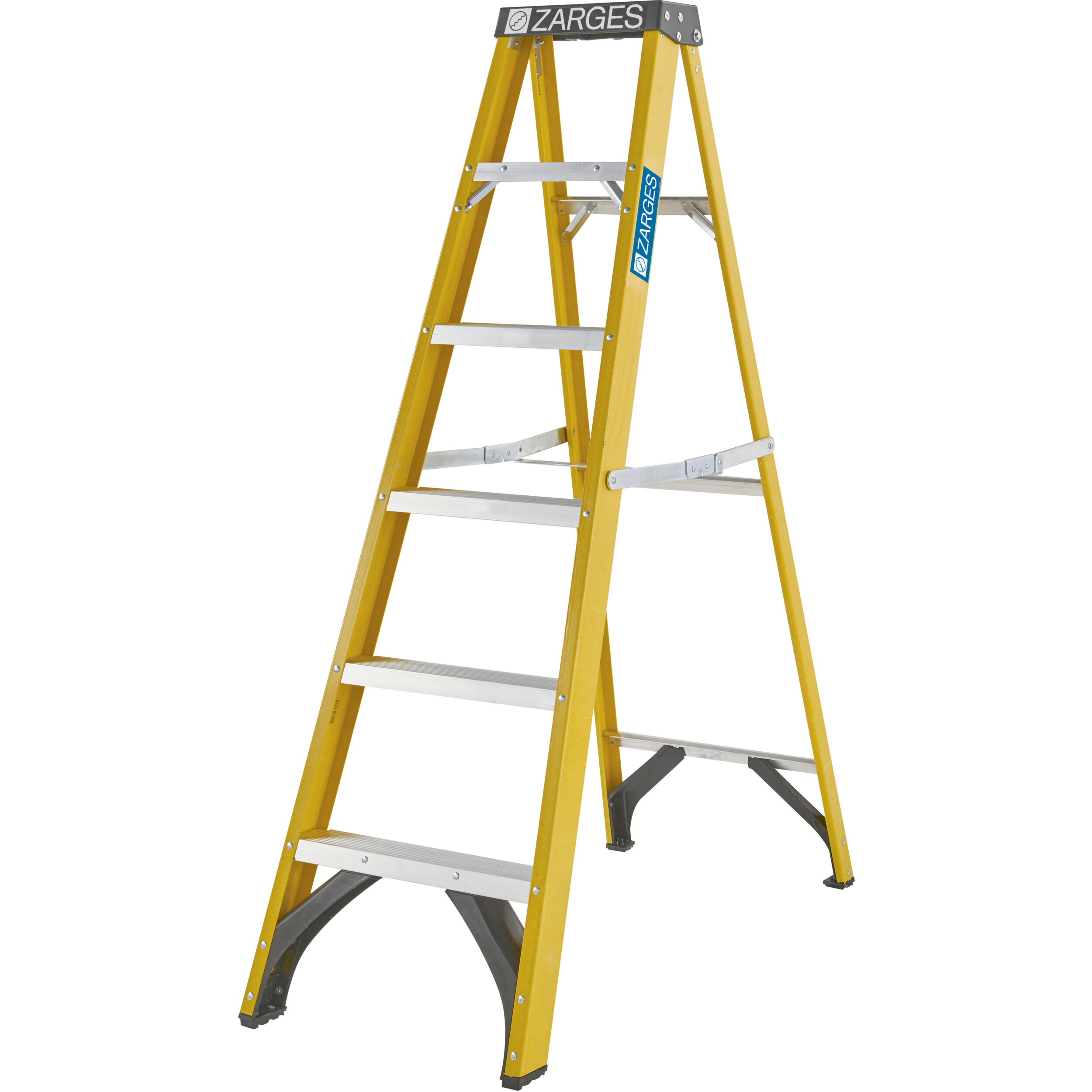

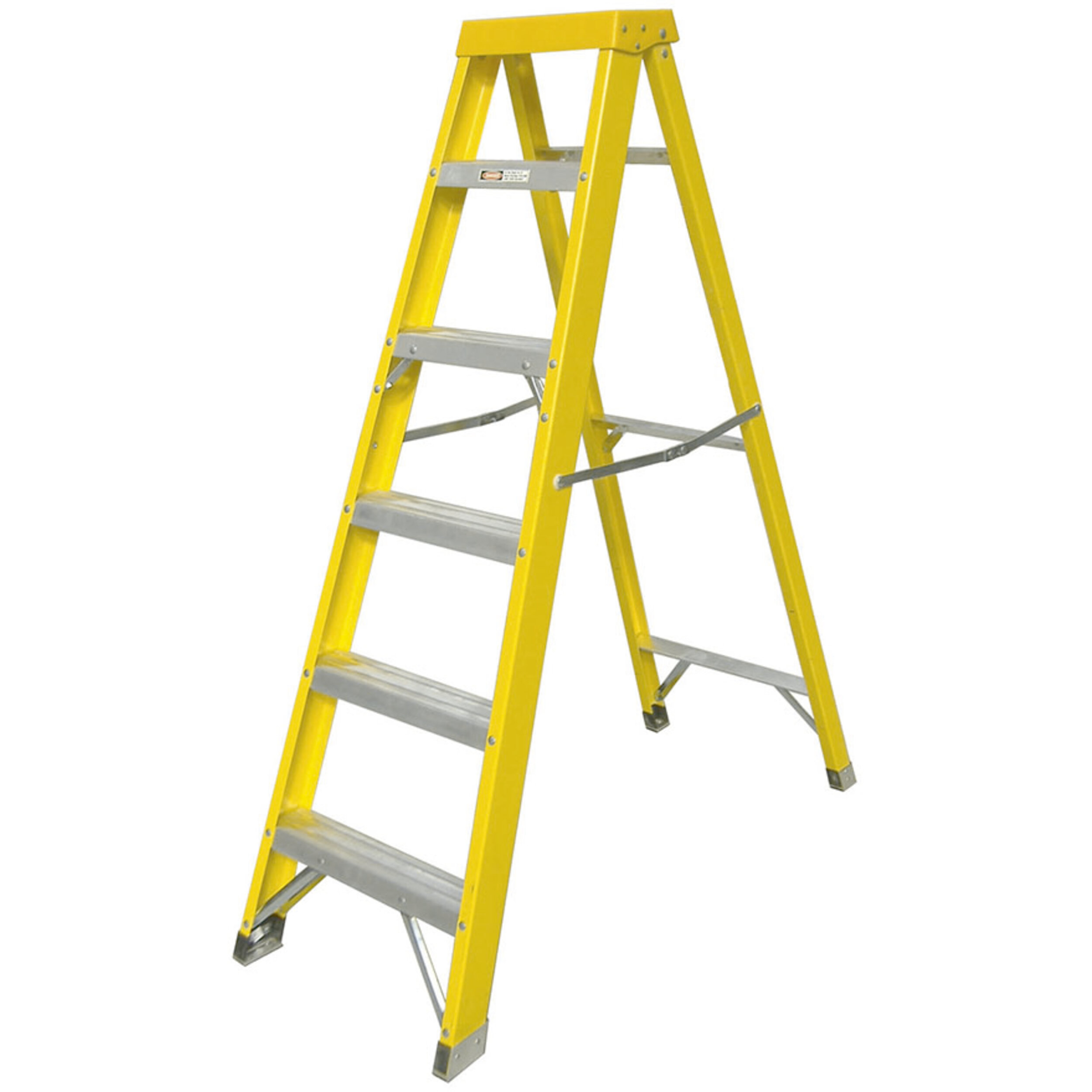

GRP Swingback Step

SKU: 300516

Details

Constructed from strong and resilient fibreglass, the ZARGES fibreglass Swingback Stepladder is long-lasting and capable of withstanding heavy use. Ideal for use near electrical hazards.

  • Non-conductive fibreglass stiles ideal for working around electricity.
  • Integral tool tray for holding tools and equipment.
  • Semi-tubular rivets provide rigid fixings.
  • H-spreaders offer single-handed operation and add to the strength of the ladder.
  • Generous 298mm tread pitch gives excellent working heights.
  • Heavy-duty slip-resistant tread profile for added strength and security.
  • Heavy-duty bracing at the foot for extra support.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti-splay mechanism Rigid locking bar
Storage tray Plastic
Connection between stiles and rungs/stiles riveted
Type of rungs/treads serrated
Vertical distance between each rung/tread 298 mm
Tread depth 80 mm
Warranty 10 years
Transport dimensions approx. 1.840 mm × approx. 540 mm × approx. 160 mm
Stile depth steps/back stay 80mm / 48mm
Standards EN 131 professional
Weight 8.7 kg
Stile depth 80 mm
Base 1,22 m × 0,54 m
Stile depth 48 mm
Load capacity max. 150 kg
Vertical ladder height 1.67 m
Number of rungs, incl. platform 6
Overall base width 0.54 m
Overall length 1.84 m
Material Aluminium / plastic
length-area-base-td-met 1.25 m
width-area-base-td-met 0.55 m
Number of rungs / treads 6

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Transport dimensions Vertical ladder height Weight
300514 0,85 m × 0,47 m 4 0,47 m 1,24 m approx. 1.240 mm × approx. 470 mm × approx. 160 mm 1,12 m 6,69 kg
300515 1,04 m × 0,51 m 5 0,51 m 1,54 m approx. 1.540 mm × approx. 510 mm × approx. 160 mm 1,39 m 7,6 kg
300516 1,22 m × 0,54 m 6 0,54 m 1,84 m approx. 1.840 mm × approx. 540 mm × approx. 160 mm 1,67 m 8,7 kg
300518 1,6 m × 0,62 m 8 0,62 m 2,42 m approx. 2.420 mm × approx. 620 mm × approx. 160 mm 2,23 m 11,51 kg
300520 1,97 m × 0,69 m 10 0,69 m 3,02 m approx. 3.020 mm × approx. 690 mm × approx. 160 mm 2,79 m 16,46 kg
