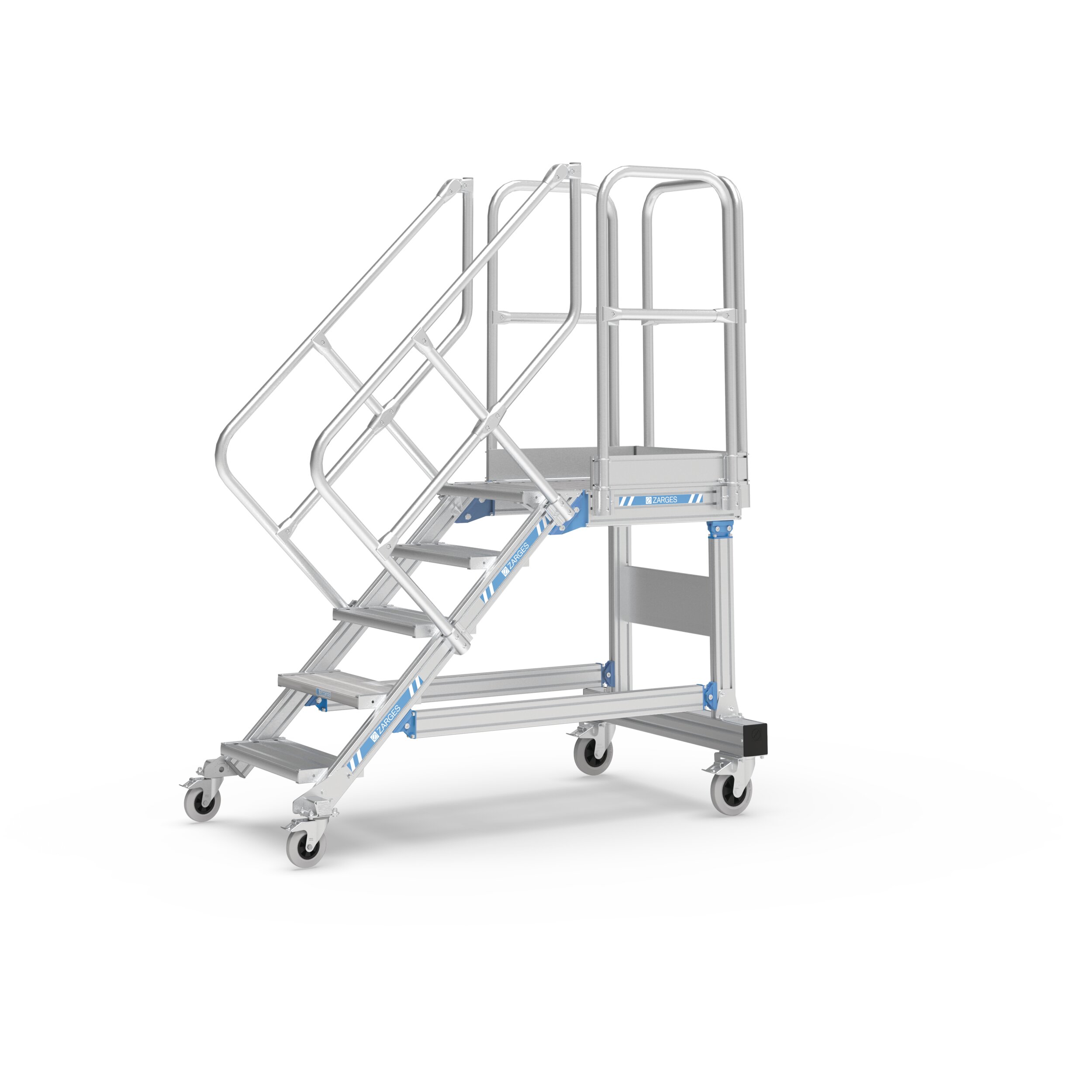

Mobile access steps with platform

SKU: 40255726

Details

Mobile access or work platforms with easy-going steps. Ideal for work over long periods, even with tools and frequent changes of working position. Large-area platform with guardrail for safe and ergonomic working at heights.

  • Different angles of inclination: 45° for comfortable access, 60° for confined spaces.
  • Serrated aluminium (R10) step and platform surfaces as standard. Steel gratings (R12) and perforated steel plates (R13) are also available for higher non-slip performance.
  • Cantilever platform available for bridging obstacles.
  • An antistatic version of the chassis is also available.
  • Customised guardrail configuration on the platform, with optional swing door or pole barrier.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Individually adjustable platform lengths.
  • Narrow chassis: the chassis width is reduced to a minimum through additional ballasting.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Warranty 10 years
Order number 40255726
Tread width 800 mm
Vertical height 1750 mm
Inclination 60 °
Number of treads 7
Overall span 1707 mm
Chassis width 1220 mm

Variants

Order number Chassis width Inclination Number of treads Overall span Tread width Vertical height
40255764 1020 mm 45 ° 5 1698 mm 600 mm 1070 mm
40255766 1620 mm 45 ° 7 2128 mm 600 mm 1500 mm
40255768 1620 mm 45 ° 9 2558 mm 600 mm 1930 mm
40255770 1220 mm 45 ° 11 3017 mm 600 mm 2360 mm
40255772 1220 mm 45 ° 12 3447 mm 600 mm 2790 mm
40255774 1220 mm 45 ° 14 3877 mm 600 mm 3220 mm
40255776 1220 mm 45 ° 16 4307 mm 600 mm 3650 mm
40255778 1420 mm 45 ° 18 4737 mm 600 mm 4080 mm
40255780 1420 mm 45 ° 20 5167 mm 600 mm 4510 mm
40255784 1020 mm 45 ° 5 1698 mm 800 mm 1070 mm
40255786 1220 mm 45 ° 7 2128 mm 800 mm 1500 mm
40255788 1220 mm 45 ° 9 2558 mm 800 mm 1930 mm
40255790 1220 mm 45 ° 11 3017 mm 800 mm 2360 mm
40255792 1220 mm 45 ° 12 3447 mm 800 mm 2790 mm
40255794 1420 mm 45 ° 14 3877 mm 800 mm 3220 mm
40255796 1420 mm 45 ° 16 4307 mm 800 mm 3650 mm
40255798 1420 mm 45 ° 18 4737 mm 800 mm 4080 mm
40255800 1620 mm 45 ° 20 5167 mm 800 mm 4510 mm
40255804 1420 mm 45 ° 5 1698 mm 1000 mm 1070 mm
40255806 1420 mm 45 ° 7 2128 mm 1000 mm 1500 mm
40255808 1420 mm 45 ° 9 2558 mm 1000 mm 1930 mm
40255810 1420 mm 45 ° 11 3017 mm 1000 mm 2360 mm
40255812 1420 mm 45 ° 12 3447 mm 1000 mm 2790 mm
40255814 1420 mm 45 ° 14 3877 mm 1000 mm 3220 mm
40255816 1420 mm 45 ° 16 4307 mm 1000 mm 3650 mm
40255818 1420 mm 45 ° 18 4737 mm 1000 mm 4080 mm
40255820 1620 mm 45 ° 20 5167 mm 1000 mm 4510 mm
40255704 1220 mm 60 ° 5 1453 mm 600 mm 1250 mm
40255706 1420 mm 60 ° 7 1707 mm 600 mm 1750 mm
40255708 1820 mm 60 ° 9 1996 mm 600 mm 2250 mm
40255710 1620 mm 60 ° 11 2285 mm 600 mm 2750 mm
40255712 1620 mm 60 ° 12 2607 mm 600 mm 3250 mm
40255714 1620 mm 60 ° 14 2896 mm 600 mm 3750 mm
40255716 1620 mm 60 ° 17 3185 mm 600 mm 4250 mm
40255724 1220 mm 60 ° 5 1453 mm 800 mm 1250 mm
40255726 1220 mm 60 ° 7 1707 mm 800 mm 1750 mm
40255728 1620 mm 60 ° 9 1996 mm 800 mm 2250 mm
40255730 1420 mm 60 ° 11 2285 mm 800 mm 2750 mm
40255732 1420 mm 60 ° 12 2607 mm 800 mm 3250 mm
40255734 1420 mm 60 ° 14 2896 mm 800 mm 3750 mm
40255736 1620 mm 60 ° 17 3185 mm 800 mm 4250 mm
40255744 1420 mm 60 ° 5 1453 mm 1000 mm 1250 mm
40255746 1420 mm 60 ° 7 1707 mm 1000 mm 1750 mm
40255748 1420 mm 60 ° 9 1996 mm 1000 mm 2250 mm
40255750 1420 mm 60 ° 11 2285 mm 1000 mm 2750 mm
40255752 1420 mm 60 ° 12 2607 mm 1000 mm 3250 mm
40255754 1420 mm 60 ° 14 2720 mm 1000 mm 3750 mm
40255756 1620 mm 60 ° 17 3207 mm 1000 mm 4250 mm
