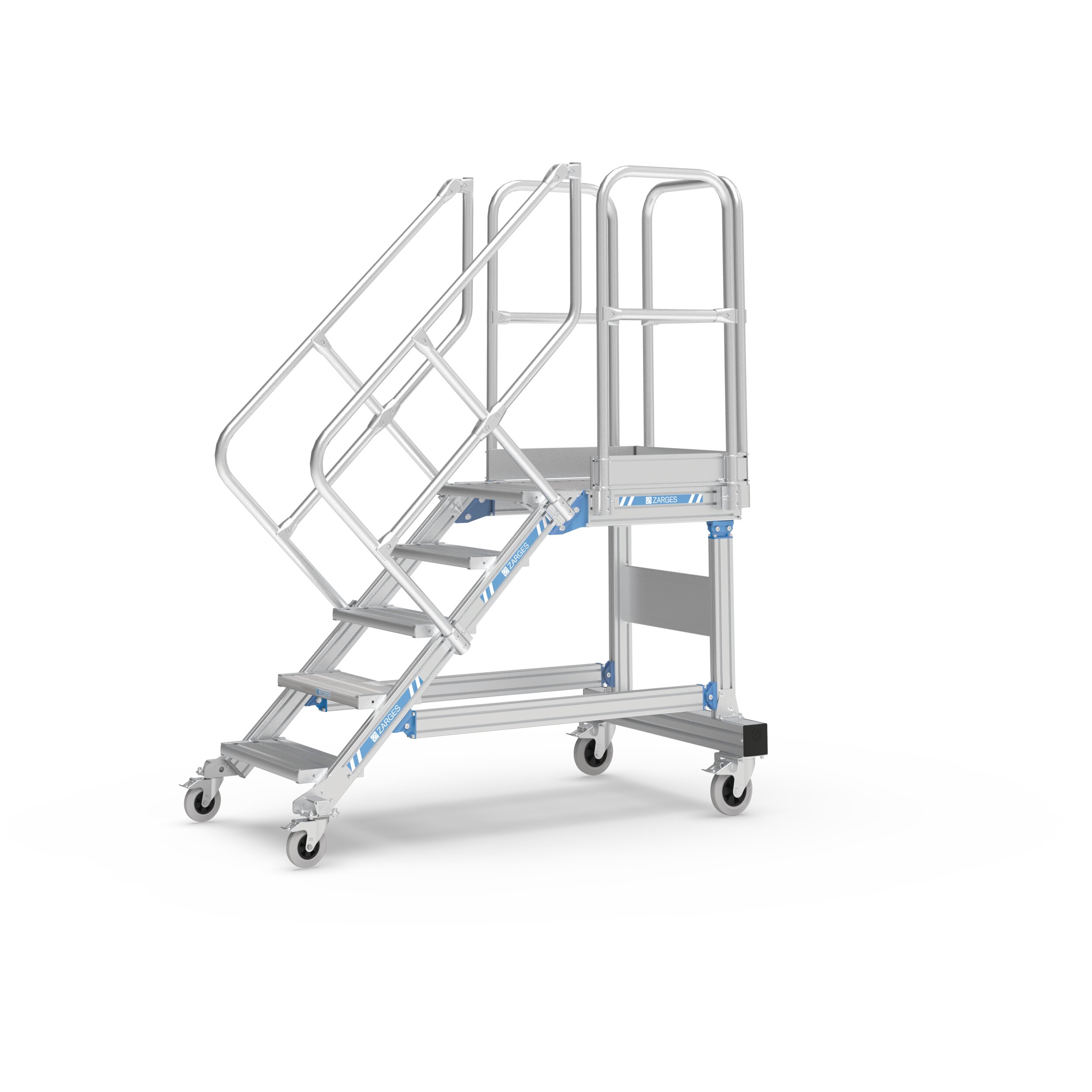

Mobile access steps with platform

SKU: 40255800

Details

Mobile access or work platforms with easy-going steps. Ideal for work over long periods, even with tools and frequent changes of working position. Large-area platform with guardrail for safe and ergonomic working at heights.

  • Different angles of inclination: 45° for comfortable access, 60° for confined spaces.
  • Serrated aluminium (R10) step and platform surfaces as standard. Steel gratings (R12) and perforated steel plates (R13) are also available for higher non-slip performance.
  • Cantilever platform available for bridging obstacles.
  • An antistatic version of the chassis is also available.
  • Customised guardrail configuration on the platform, with optional swing door or pole barrier.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Individually adjustable platform lengths.
  • Narrow chassis: the chassis width is reduced to a minimum through additional ballasting.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Warranty 10 years
Order number 40255800
Tread width 800 mm
Vertical height 4510 mm
Inclination 45 °
Number of treads 20
Overall span 5167 mm
Chassis width 1620 mm

Variants

Order number Chassis width Inclination Number of treads Overall span Tread width Vertical height
40255764 1020 mm 45 ° 5 1698 mm 600 mm 1070 mm
40255766 1620 mm 45 ° 7 2128 mm 600 mm 1500 mm
40255768 1620 mm 45 ° 9 2558 mm 600 mm 1930 mm
40255770 1220 mm 45 ° 11 3017 mm 600 mm 2360 mm
40255772 1220 mm 45 ° 12 3447 mm 600 mm 2790 mm
40255774 1220 mm 45 ° 14 3877 mm 600 mm 3220 mm
40255776 1220 mm 45 ° 16 4307 mm 600 mm 3650 mm
40255778 1420 mm 45 ° 18 4737 mm 600 mm 4080 mm
40255780 1420 mm 45 ° 20 5167 mm 600 mm 4510 mm
40255784 1020 mm 45 ° 5 1698 mm 800 mm 1070 mm
40255786 1220 mm 45 ° 7 2128 mm 800 mm 1500 mm
40255788 1220 mm 45 ° 9 2558 mm 800 mm 1930 mm
40255790 1220 mm 45 ° 11 3017 mm 800 mm 2360 mm
40255792 1220 mm 45 ° 12 3447 mm 800 mm 2790 mm
40255794 1420 mm 45 ° 14 3877 mm 800 mm 3220 mm
40255796 1420 mm 45 ° 16 4307 mm 800 mm 3650 mm
40255798 1420 mm 45 ° 18 4737 mm 800 mm 4080 mm
40255800 1620 mm 45 ° 20 5167 mm 800 mm 4510 mm
40255804 1420 mm 45 ° 5 1698 mm 1000 mm 1070 mm
40255806 1420 mm 45 ° 7 2128 mm 1000 mm 1500 mm
40255808 1420 mm 45 ° 9 2558 mm 1000 mm 1930 mm
40255810 1420 mm 45 ° 11 3017 mm 1000 mm 2360 mm
40255812 1420 mm 45 ° 12 3447 mm 1000 mm 2790 mm
40255814 1420 mm 45 ° 14 3877 mm 1000 mm 3220 mm
40255816 1420 mm 45 ° 16 4307 mm 1000 mm 3650 mm
40255818 1420 mm 45 ° 18 4737 mm 1000 mm 4080 mm
40255820 1620 mm 45 ° 20 5167 mm 1000 mm 4510 mm
40255704 1220 mm 60 ° 5 1453 mm 600 mm 1250 mm
40255706 1420 mm 60 ° 7 1707 mm 600 mm 1750 mm
40255708 1820 mm 60 ° 9 1996 mm 600 mm 2250 mm
40255710 1620 mm 60 ° 11 2285 mm 600 mm 2750 mm
40255712 1620 mm 60 ° 12 2607 mm 600 mm 3250 mm
40255714 1620 mm 60 ° 14 2896 mm 600 mm 3750 mm
40255716 1620 mm 60 ° 17 3185 mm 600 mm 4250 mm
40255724 1220 mm 60 ° 5 1453 mm 800 mm 1250 mm
40255726 1220 mm 60 ° 7 1707 mm 800 mm 1750 mm
40255728 1620 mm 60 ° 9 1996 mm 800 mm 2250 mm
40255730 1420 mm 60 ° 11 2285 mm 800 mm 2750 mm
40255732 1420 mm 60 ° 12 2607 mm 800 mm 3250 mm
40255734 1420 mm 60 ° 14 2896 mm 800 mm 3750 mm
40255736 1620 mm 60 ° 17 3185 mm 800 mm 4250 mm
40255744 1420 mm 60 ° 5 1453 mm 1000 mm 1250 mm
40255746 1420 mm 60 ° 7 1707 mm 1000 mm 1750 mm
40255748 1420 mm 60 ° 9 1996 mm 1000 mm 2250 mm
40255750 1420 mm 60 ° 11 2285 mm 1000 mm 2750 mm
40255752 1420 mm 60 ° 12 2607 mm 1000 mm 3250 mm
40255754 1420 mm 60 ° 14 2720 mm 1000 mm 3750 mm
40255756 1620 mm 60 ° 17 3207 mm 1000 mm 4250 mm
