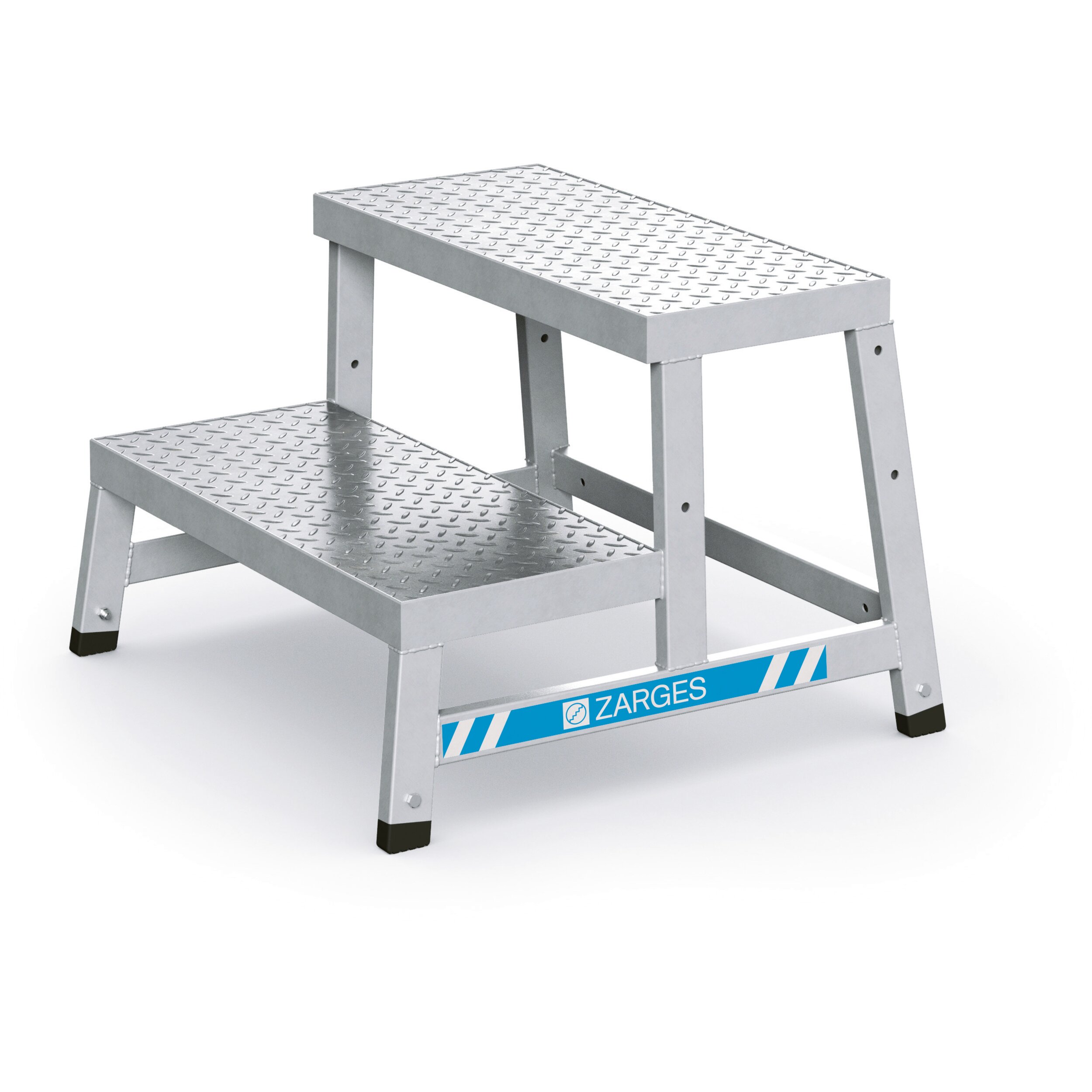

AMA P

Details

The modular solution for flexible or stationary application: extendible from a step stool to a complete work platform in various heights.

  • Modular design for changing or expanding configurations at any time – as mobile or stationary walkways.
  • Lightweight for quick and easy handling.
  • Extremely robust, torsion-resistant, corrosion-proof aluminium alloy structure.
  • Comfortable, safe steps (555 x 250 mm) made from serrated aluminium sheet.
  • Two-step basic module with up to three add-on steps, suitable for mobile applications.
  • Wide range of accessories for stationary or mobile applications.
  • Add-on modules in four different heights.

Hints and special features

  • Complies with EN 14 183

More Information

More Information
Pitch rung/tread 200 mm
Platform width 555 mm
Producttype Modular work platform
Type rung/tread serrated
Load max. 150 kg
Tread depth 250 mm
Connection Stile-Rung welded
Coating natural
Length as work platform 250 mm
Material Aluminium

Variants

Order number Module combination Module, individual Overall platform depth Platform height Total max. weight Transport dimensions Weight Working height
40261 A Module A 0.3 m 0.2 m 2.9 kg 580 mm × 290 mm × 200 mm 2.9 kg 2.2 m
40260 B Module B 0.55 m 0.4 m 4.8 kg 620 mm × 550 mm × 400 mm 4.8 kg 2.4 m
40262 B + C Module C 0.8 m 0.4 m 8.7 kg 610 mm × 280 mm × 380 mm 3.9 kg 2.4 m
40263 B + D Module D 0.8 m 0.6 m 9.2 kg 630 mm × 290 mm × 590 mm 4.4 kg 2.6 m
40264 B + D + E Module E 1.05 m 0.8 m 14 kg 660 mm × 290 mm × 790 mm 4.8 kg 2.8 m
40265 B + D + E + F Module F 1.3 m 0.99 m 19.5 kg 690 mm × 290 mm × 980 mm 5.5 kg 2.99 m
