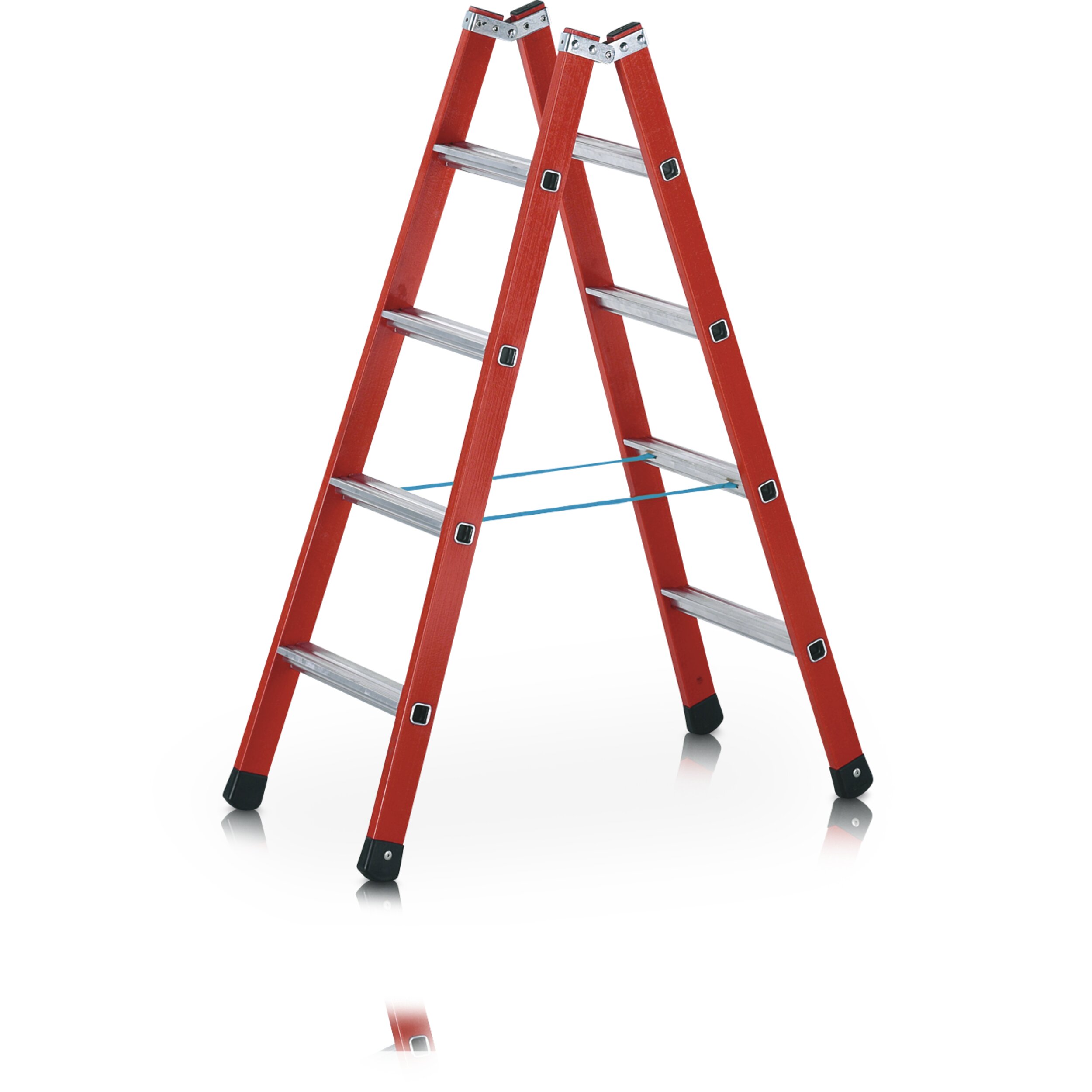

EFAmix B

Details

The ideal, particularly lightweight solution for work in electrical and chemical environments.

  • Stand safely on 60 mm deep rungs made from non-slip aluminium alloy.
  • High level of protection provided for working on electrical installations thanks to insulated stiles made from glass-fibre-reinforced plastic.
  • Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478 or VDE 0682 Section 6.5 Category 1/30 KV.
  • High-strength perlon belts prevent splay.
  • High strength, non-twist rung/stile connections.
  • Strong steel hinge.
  • Replaceable 2-component plastic end caps ensure positioning without the risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Missing translation
Pitch rung/tread 265 mm
Type rung/tread serrated
Connection Stile-Rung flanged
Tread depth 60 mm
Anti splay Belt strap
Load max. 150 kg
Material Aluminium / plastic
Number ladderparts 2

Variants

Order number Base Number of rungs Number of rungs Overall base width Overall length Transport dimensions Vertical ladder height Weight Working height
41165 0,96 m × 0,48 m 4 2 × 4 0.47 m 1.34 m 1.344 mm × 480 mm × 162 mm 1.29 m 7.8 kg 2.6 m
41166 1,13 m × 0,51 m 5 2 × 5 0.5 m 1.62 m 1.625 mm × 510 mm × 162 mm 1.55 m 9.6 kg 2.85 m
41167 1,31 m × 0,54 m 6 2 × 6 0.53 m 1.9 m 1.904 mm × 540 mm × 162 mm 1.82 m 11.4 kg 3.1 m
41168 1,81 m × 0,6 m 8 2 × 8 0.59 m 2.46 m 2.464 mm × 600 mm × 162 mm 2.33 m 14.8 kg 3.65 m
41169 2,17 m × 0,66 m 10 2 × 10 0.65 m 3.02 m 3.024 mm × 660 mm × 162 mm 2.86 m 18.8 kg 4.15 m
41170 2,55 m × 0,72 m 12 2 × 12 0.71 m 3.58 m 3.584 mm × 720 mm × 162 mm 3.38 m 22.5 kg 4.7 m
