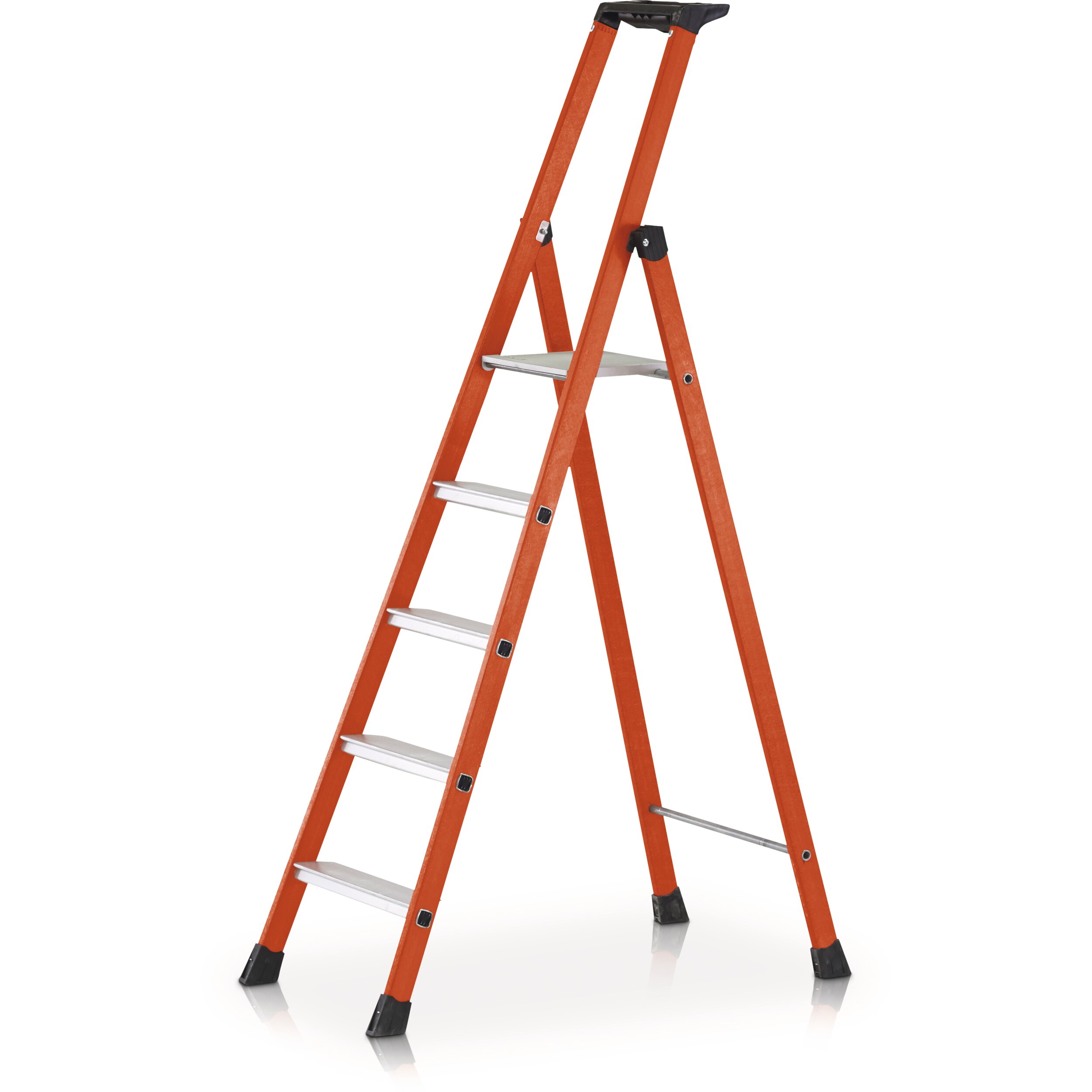

EFAmix S

Details

The special ladders for all applications in electrical environments.

  • Aluminium alloy treads, 80 mm deep, with non-slip serrated surface.
  • Can be used for work on electrical installations, thanks to insulating stiles made from glass-fibre-reinforced plastic.
  • Safety platform (250 x 250 mm).
  • Safe storage of accessories and tools in an aluminium storage tray.
  • Only 88 mm wide when folded.
  • Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478.
  • Treads made from extruded aluminium section.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Pitch rung/tread 230 mm
Tray Plastic
Platform width 250 mm
Producttype GRP composite stepladder with treads
Type rung/tread serrated
Load max. 150 kg
Tread depth 80 mm
Connection Stile-Rung flanged
Anti splay Belt strap
Length as work platform 250 mm
Material Aluminium / plastic

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
40431 0,75 m × 0,52 m 3 0.52 m 1.4 m 0.68 m 1.390 mm × approx. 520 mm × 100 mm 6 kg 2.7 m
40432 0,91 m × 0,55 m 4 0.55 m 1.65 m 0.91 m 1.640 mm × approx. 550 mm × 100 mm 7 kg 2.9 m
40433 1,07 m × 0,57 m 5 0.57 m 1.9 m 1.14 m 1.890 mm × approx. 570 mm × 100 mm 8 kg 3.15 m
40434 1,24 m × 0,6 m 6 0.6 m 2.15 m 1.37 m 2.140 mm × approx. 600 mm × 100 mm 9 kg 3.35 m
40435 1,4 m × 0,62 m 7 0.62 m 2.4 m 1.6 m 2.390 mm × approx. 620 mm × 100 mm 10 kg 3.6 m
