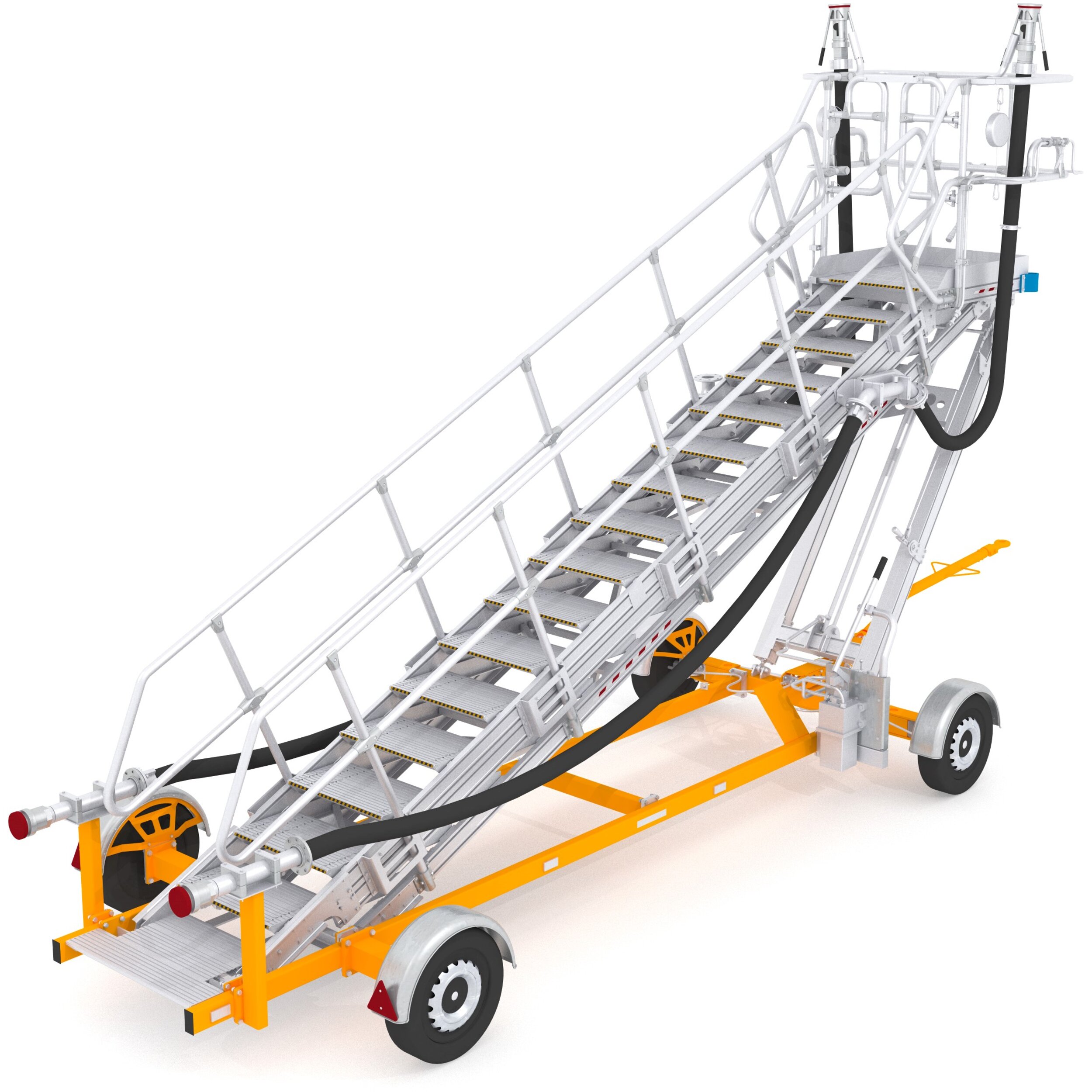

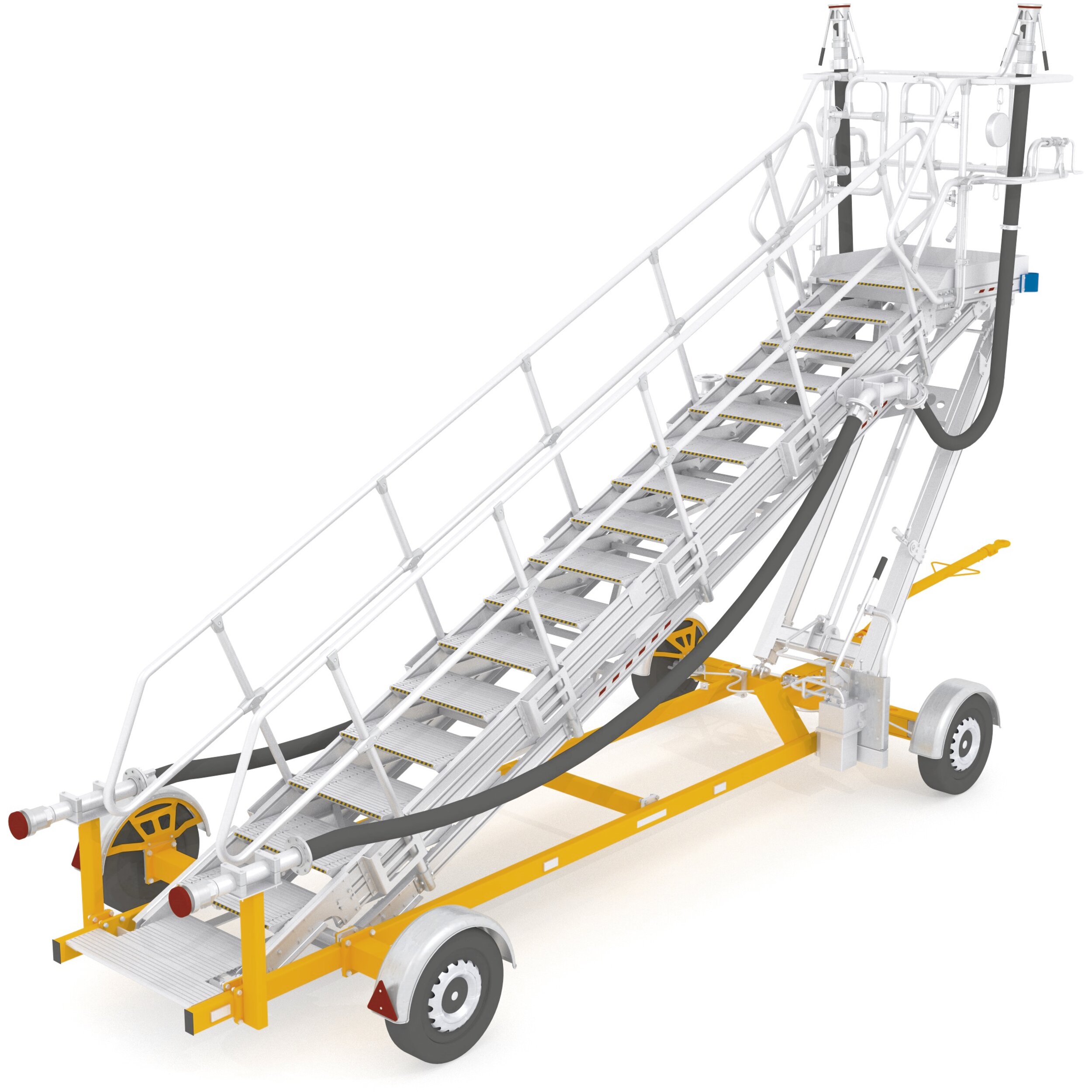

Fuelling platform with height adjustable between 2.50 and 4.25 metres.

SKU: epim24096

Details

The fuelling platform equipped with hydraulic height adjustment offers you flexible access to fuelling stations at various heights.

  • Hydraulic height adjustment between 2.50 and 4.25 metres.
  • This product can be ordered with towing eye or ball coupling on its tow bar depending on the towing vehicle used.
  • A platform (918 x 830 mm) optimised for secure footing offers enough space for refuelling to be performed ergonomically.
  • The treads and platform are fitted with R13 anti-slip safety panels that allow water to drain easily, offering an extremely high level of safety.
  • The 530 mm pneumatic tyres in combination with a tow bar allow for towing speeds of up to 30 km/h.
  • Our platforms comply with the European standards EN 12312-5 and EN 1915-1.

Hints and special features

  • No fuelling equipment is included for this product variant. However, the same product is also available with fuelling equipment.
  • Standards used:DIN EN 1915 - General requirementsPart 1 - Basic safety requirementsPart 2 - Stability and strength requirementsDIN EN 12312 - Aircraft ground support equipmentPart 5 - Aircraft fuelling equipmentPart 8 - Maintenance stairs and platforms
