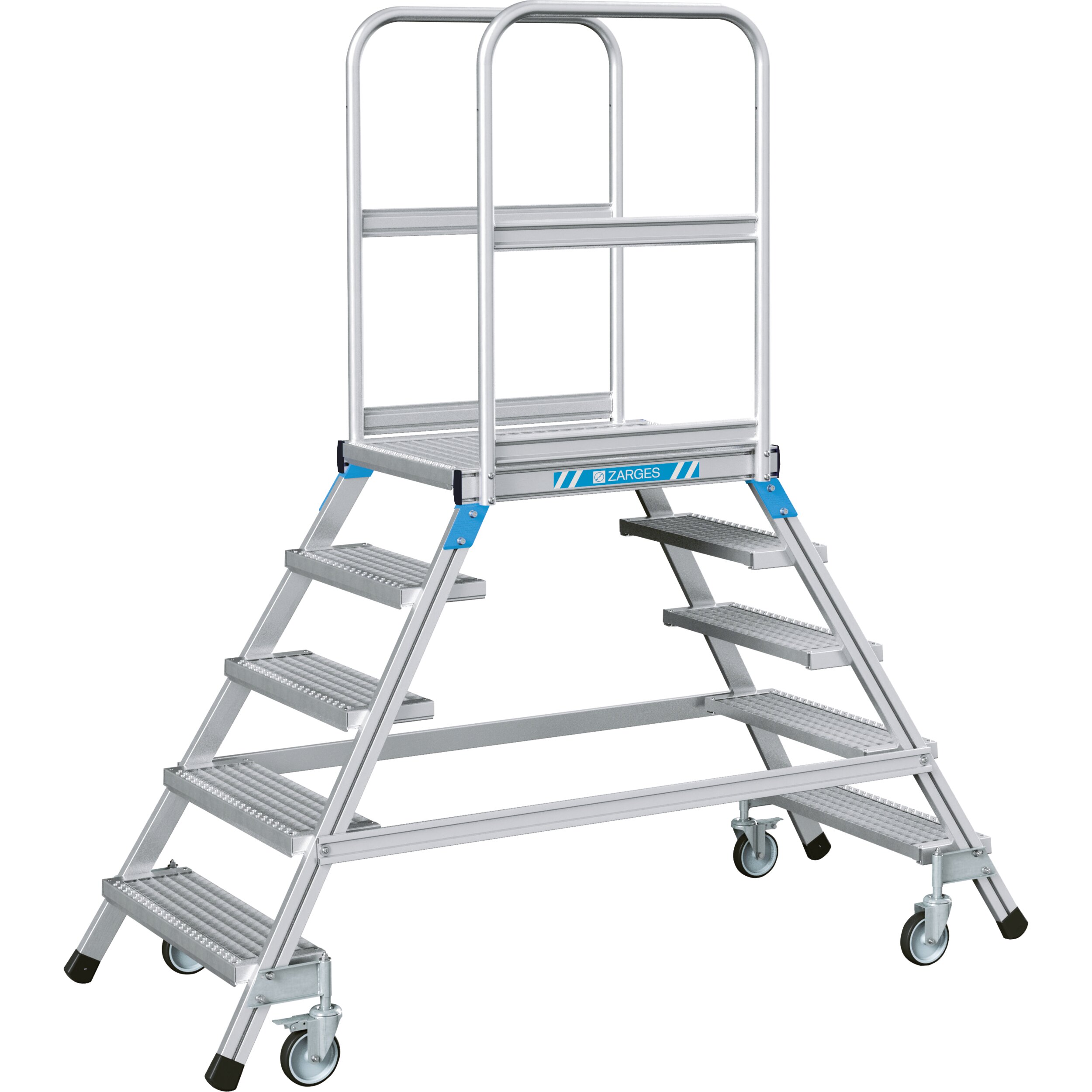

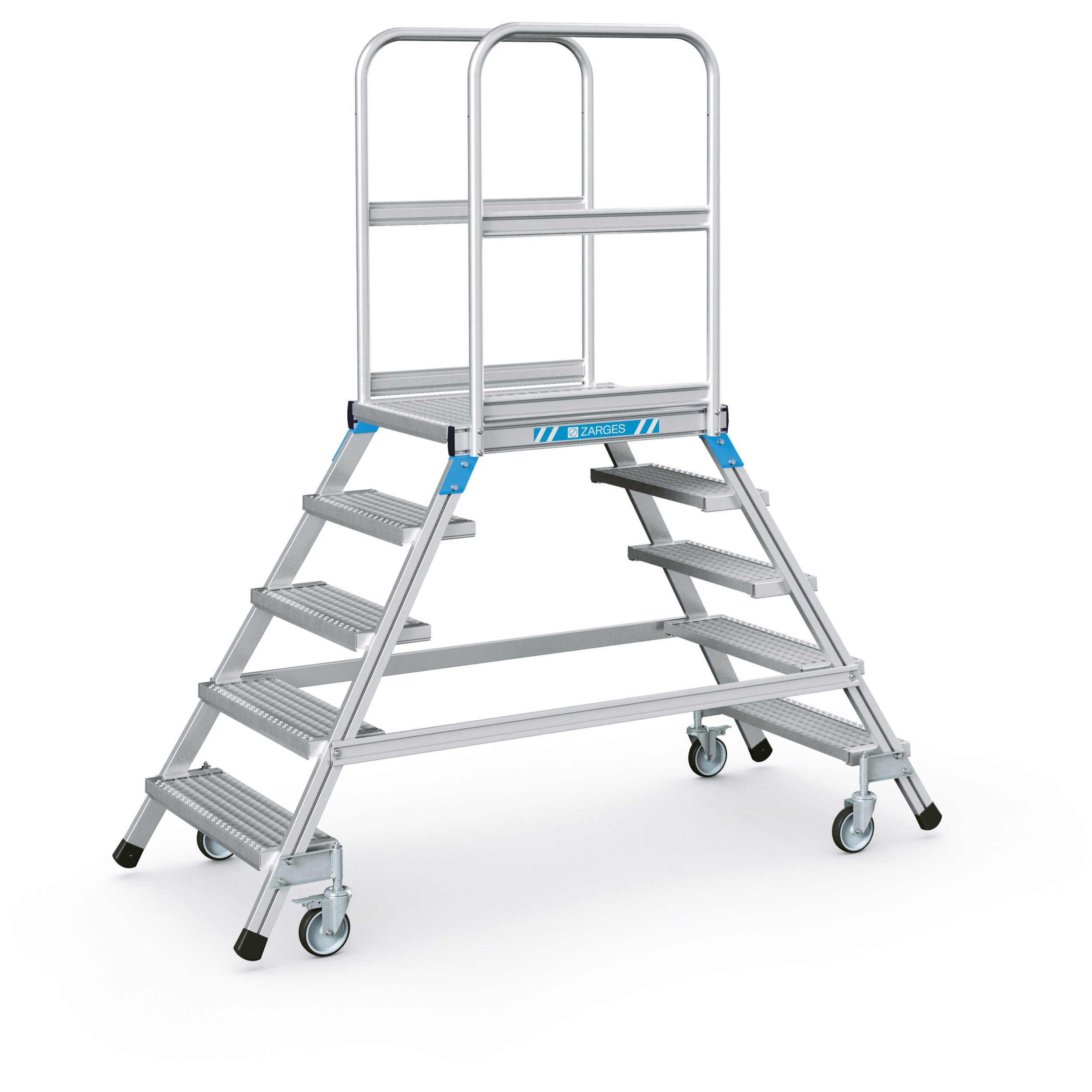

Mobile access steps with platform, double-sided access, with steel open-grid treads and platform

Details

The flexible solution for wet-room applications, with open-grid treads for improved non-slip performance.

  • Quick and easy assembly thanks to the new connecting elements.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.

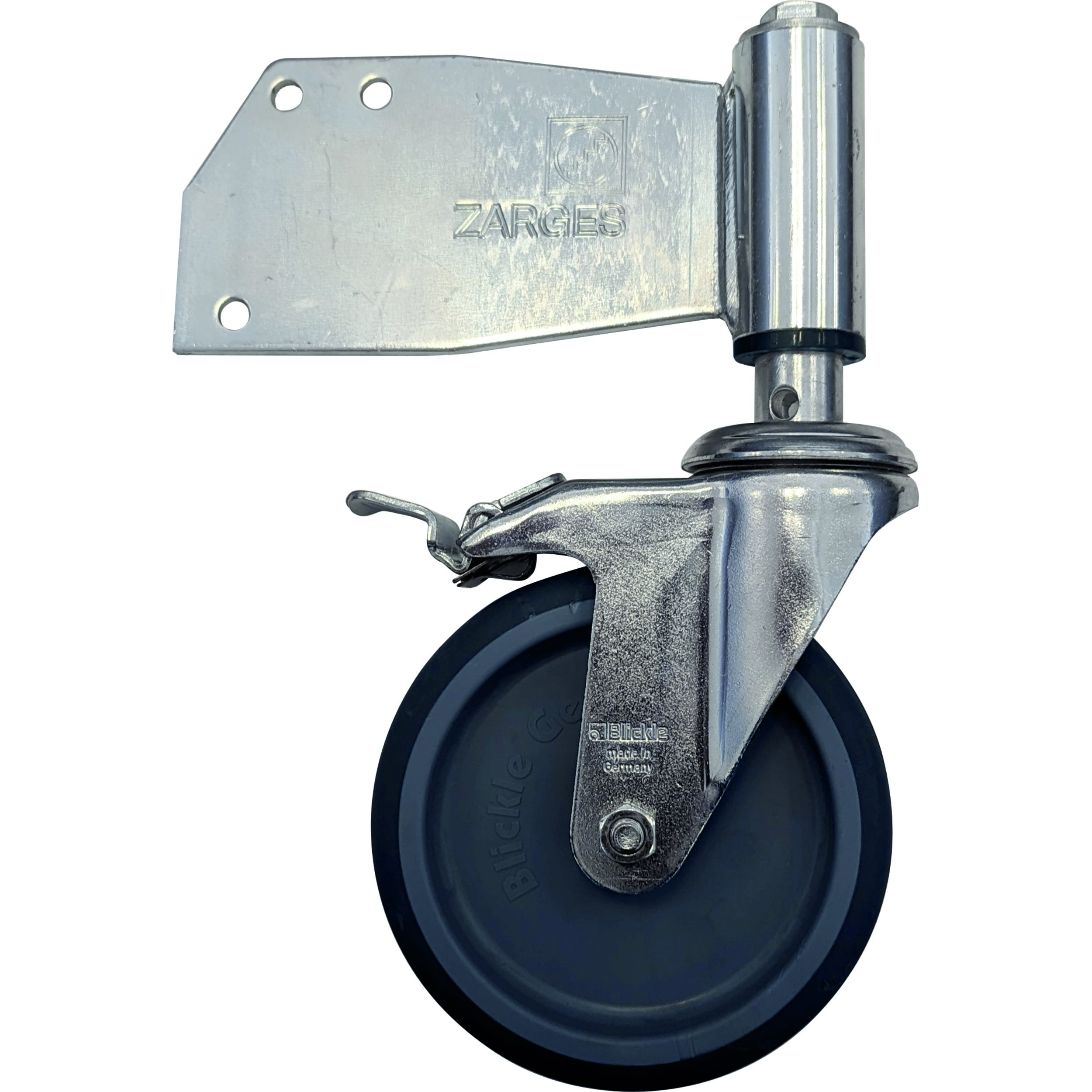

  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).

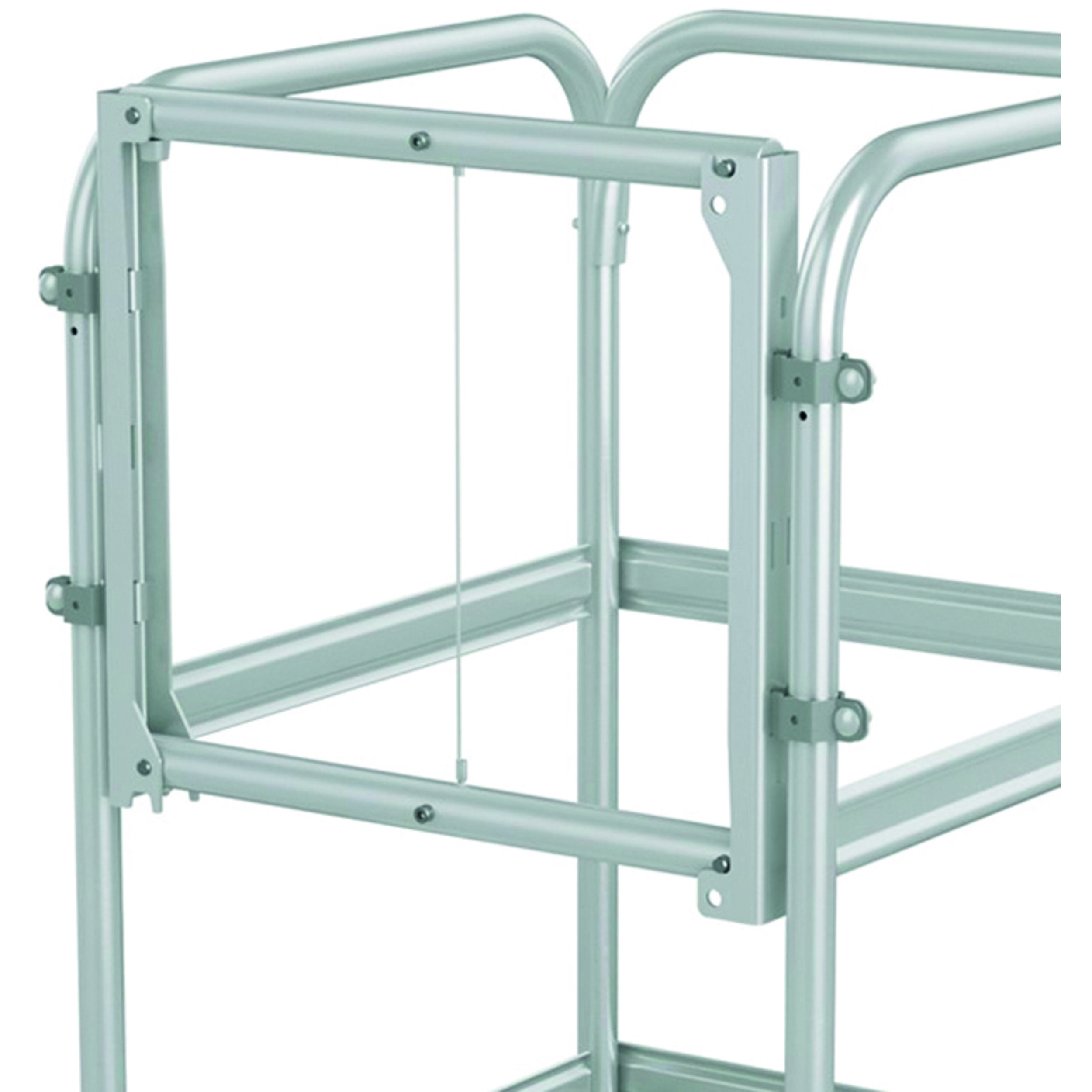

  • Maximum safety through double-sided platform railing at a height of 1.00 m.
  • Maximum loading capacity 150 kg.

Hints and special features

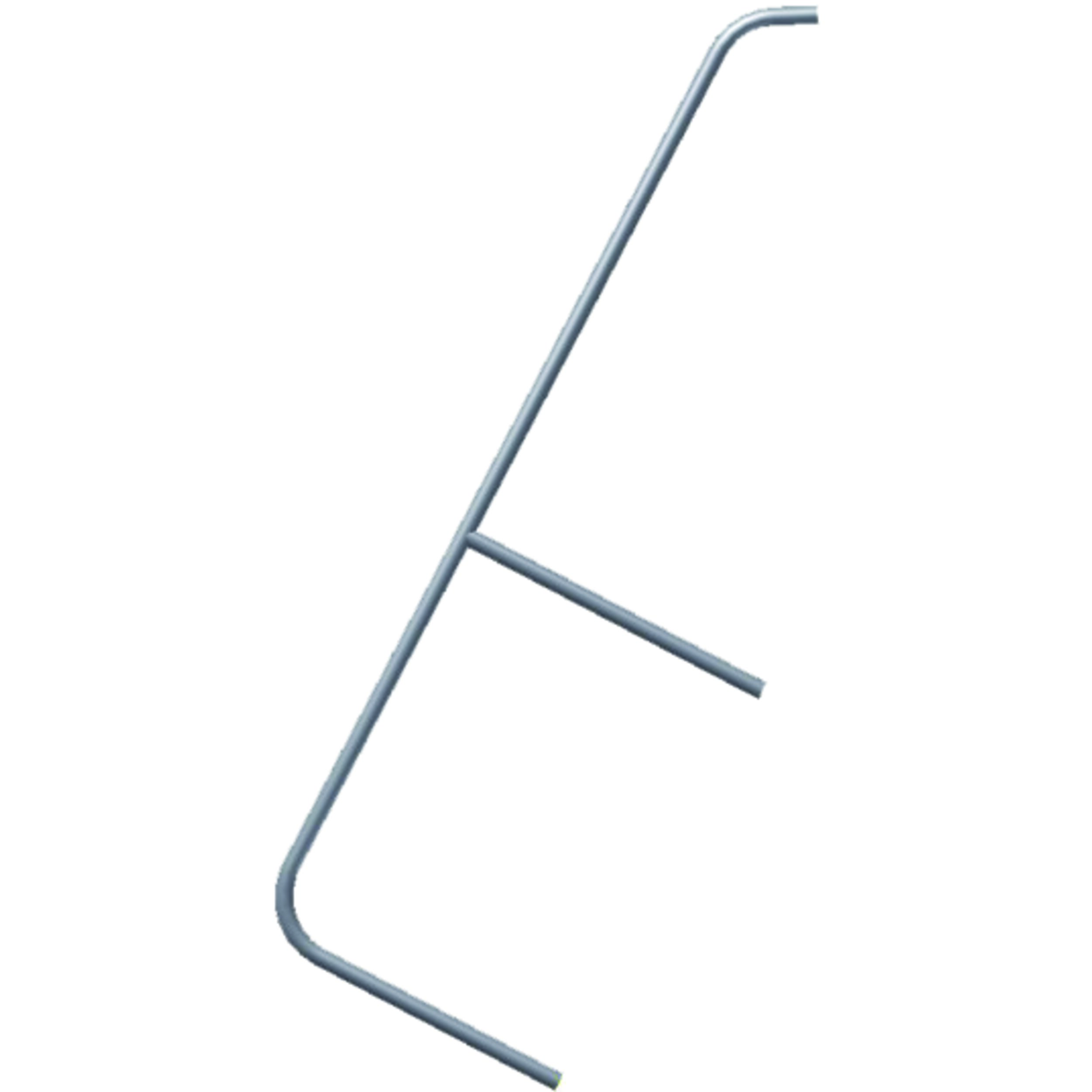

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • Complies with EN 131-7

More Information

More Information
Pitch rung/tread 240 mm
Platform width 600 mm
Type rung/tread serrated
Coating natural
Connection Stile-Rung welded
Tread depth 200 mm
Load max. 150 kg
Material Aluminium
Length as work platform 800 mm

Variants

Order number Base Number of rungs, incl. platform Number of treads Platform height Transport dimensions Weight Working height
41962 0,82 m × 1,79 m 2 × 4 4 0.96 m 1.960 mm × 830 mm × 300 mm 59.2 kg 2.95 m
41963 0,87 m × 2,06 m 2 × 5 5 1.2 m 1.850 mm × 890 mm × 460 mm 70.1 kg 3.2 m
41964 0,93 m × 2,34 m 2 × 6 6 1.44 m 2.140 mm × 930 mm × 380 mm 80.7 kg 3.45 m
41965 0,98 m × 2,62 m 2 × 7 7 1.68 m 2.400 mm × 990 mm × 410 mm 92 kg 3.7 m
