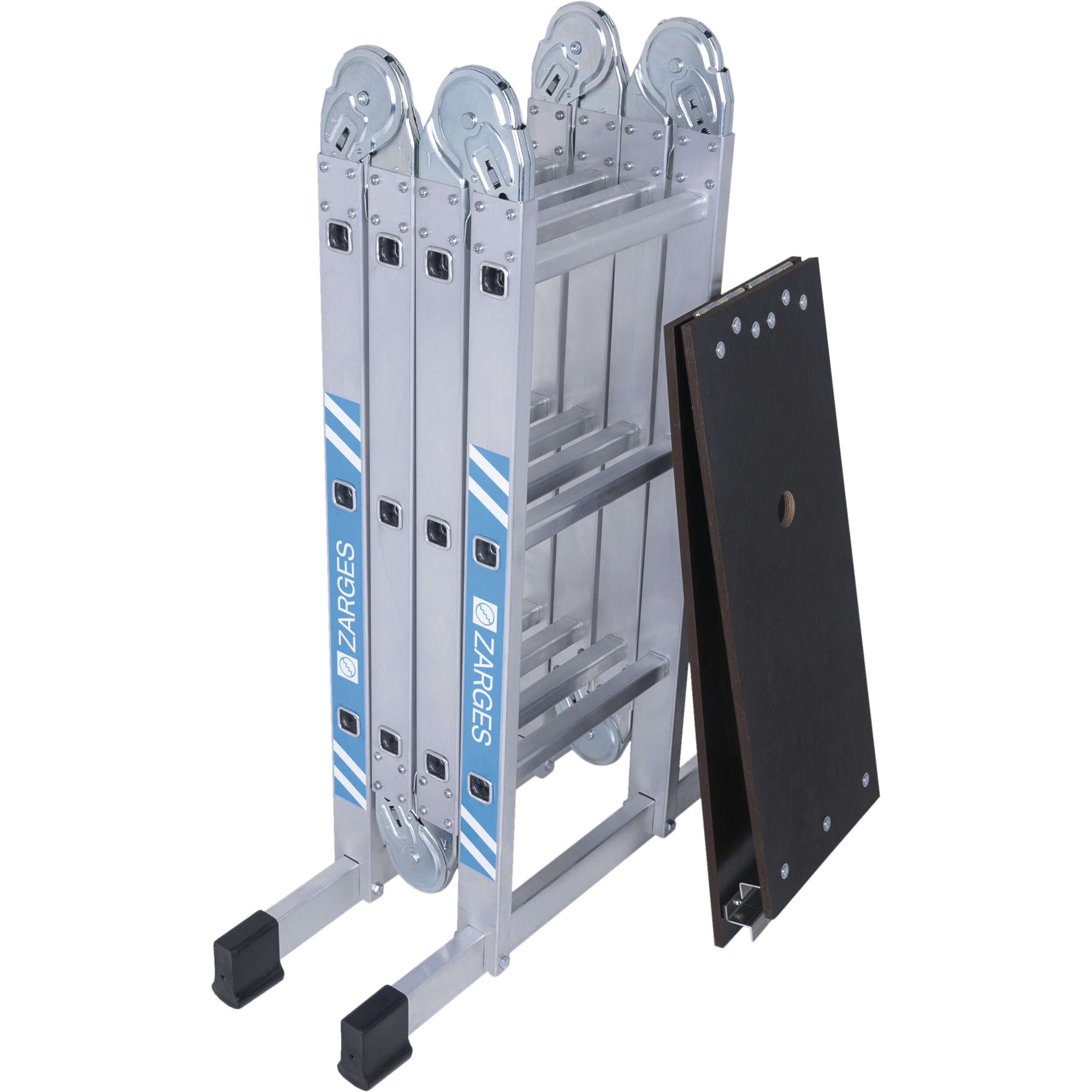

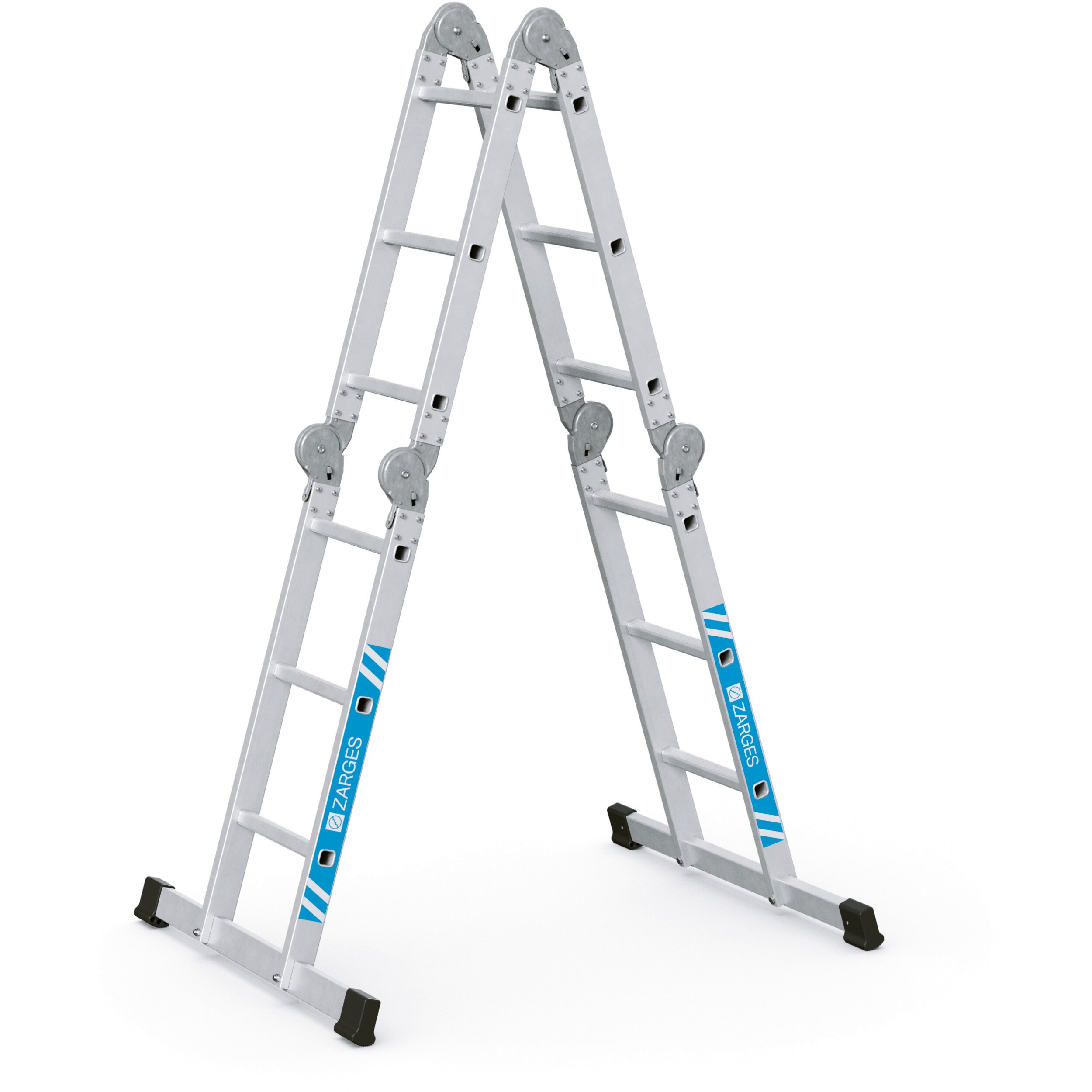

Multitec M

Details

The compact version for a wide range of uses and with a good price/performance ratio.

  • Can be used as a single ladder, a stepladder with double-sided access or as a practical work platform.
  • External width of ladder body: 350 mm.
  • Order Nos. 42381 - 42383 are equipped with two horizontal stabiliser bars, Order No. 42384 with one horizontal stabiliser bar.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

Hints and special features

  • Order No. 42384 may not be used as a work platform or a single ladder with wall support.

More Information

More Information
Pitch rung/tread 265 mm
Producttype Flanged multipurpose ladder, 4-section
Width 0.75 m
Type rung/tread serrated
Ext. width 350 mm
Tread depth 30 mm
Connection Stile-Rung flanged
Coating natural
Load max. 150 kg
Material Aluminium

Variants

Order number Dimensions, folded Height as work platform Length Length as lean-to ladder Length as stepladder Length as work platform Number of rungs Number of rungs Overall base width Stile depth Transport dimensions Vertical ladder height Weight Width Working height
42383 1,02 m × 0,75 m × 0,26 m 0.99 m 1.02 m 3.62 m 1.85 m 1.55 m 3 4 × 3 0.75 m 59 mm 1.030 mm × 360 mm × 270 mm 1.75 m 12.5 kg 0.75 m 4.45 m
42381 1,22 m × 0,8 m × 0,26 m 0.99 m 1.22 m 4.19 m 2.13 m 2.11 m 3 2 × 3 + 2 × 4 0.8 m 59 mm 1.230 mm × 350 mm × 270 mm 2 m 14 kg 0.8 m 5 m
42384 1,3 m × 0,9 m × 0,26 m 1.3 m 4.74 m 2.41 m 4 4 × 4 0.9 m 59 mm 1.310 mm × 360 mm × 270 mm 2.3 m 15.5 kg 0.9 m 5.5 m
42382 1,5 m × 0,9 m × 0,26 m 0.99 m 1.5 m 4.74 m 2.41 m 2.67 m 3 2 × 3 + 2 × 5 0.9 m 61 mm 1.510 mm × 350 mm × 270 mm 2.3 m 15.5 kg 0.9 m 5.5 m
