Platform steps

Details

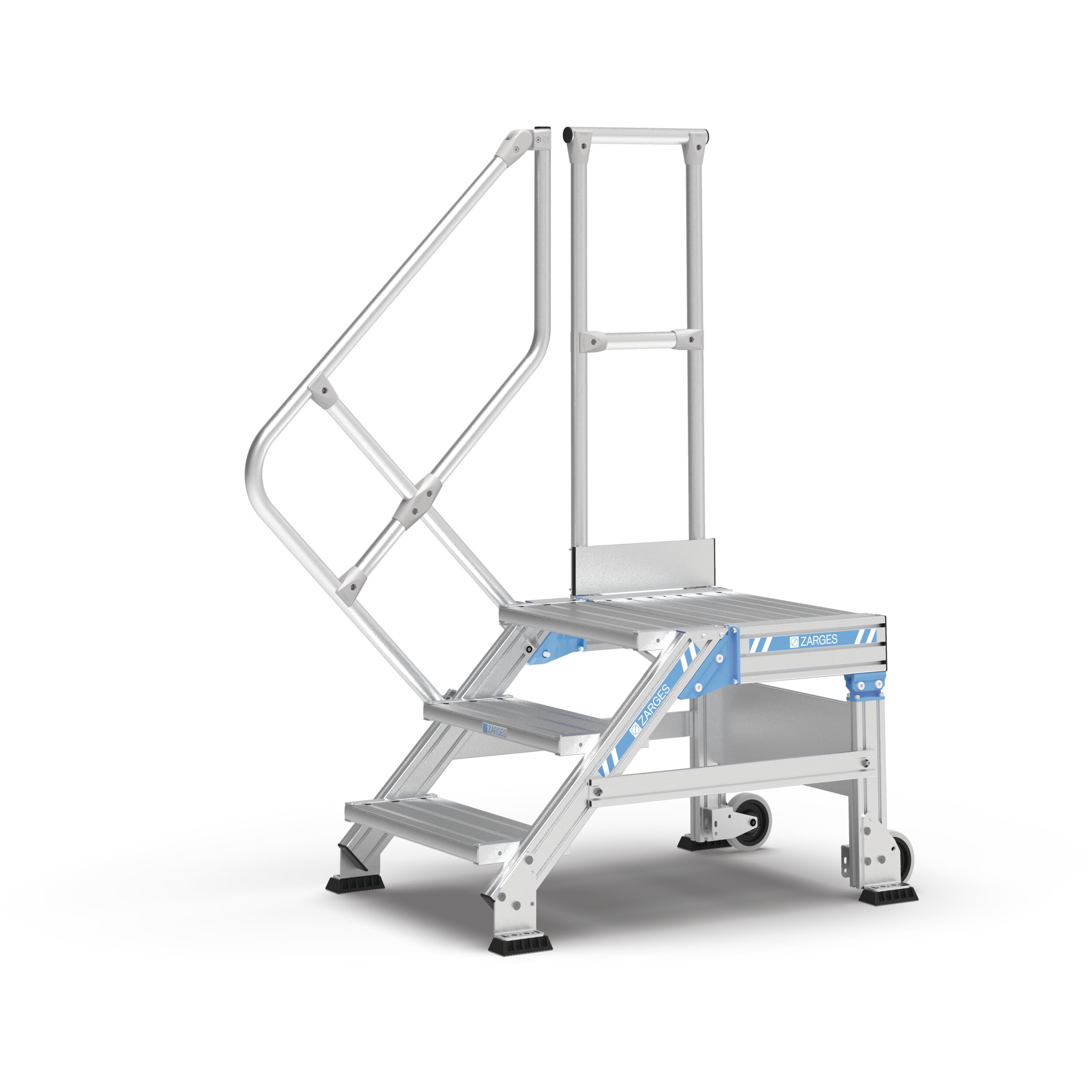

Compact work platform with easy-going steps. Choice of stationary or mobile version (for moving quickly to another working position). Ideal for work over long periods, even with tools.

  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Individually adjustable platform lengths.
  • Chassis available in a non-static version as an option.
  • Configurable up to a vertical height of 1,500 mm (from 1,000 mm with horizontal stabiliser bar for safe standing).
  • Assembly elements: Support section assembly elements selectable without wheel or as a stationary work platform with floor brackets.
  • Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Tread width 600 mm
Inclination 45 °

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40855520 45 ° 2 870 mm 600 mm 400 mm
40855521 45 ° 3 1070 mm 600 mm 600 mm
40855522 45 ° 4 1270 mm 600 mm 800 mm
40855523 45 ° 5 1470 mm 600 mm 990 mm
40855524 45 ° 2 870 mm 800 mm 400 mm
40855525 45 ° 3 1070 mm 800 mm 600 mm
40855526 45 ° 4 1270 mm 800 mm 800 mm
40855527 45 ° 5 1470 mm 800 mm 990 mm
40855528 45 ° 2 870 mm 1000 mm 400 mm
40855529 45 ° 3 1070 mm 1000 mm 600 mm
40855530 45 ° 4 1270 mm 1000 mm 800 mm
40855531 45 ° 5 1470 mm 1000 mm 990 mm
40855540 60 ° 2 770 mm 600 mm 500 mm
40855541 60 ° 3 915 mm 600 mm 750 mm
40855542 60 ° 4 1060 mm 600 mm 990 mm
40855544 60 ° 2 770 mm 800 mm 500 mm
40855545 60 ° 3 915 mm 800 mm 750 mm
40855546 60 ° 4 1060 mm 800 mm 990 mm
40855548 60 ° 2 770 mm 1000 mm 500 mm
40855549 60 ° 3 915 mm 1000 mm 750 mm
40855550 60 ° 4 1060 mm 1000 mm 990 mm
