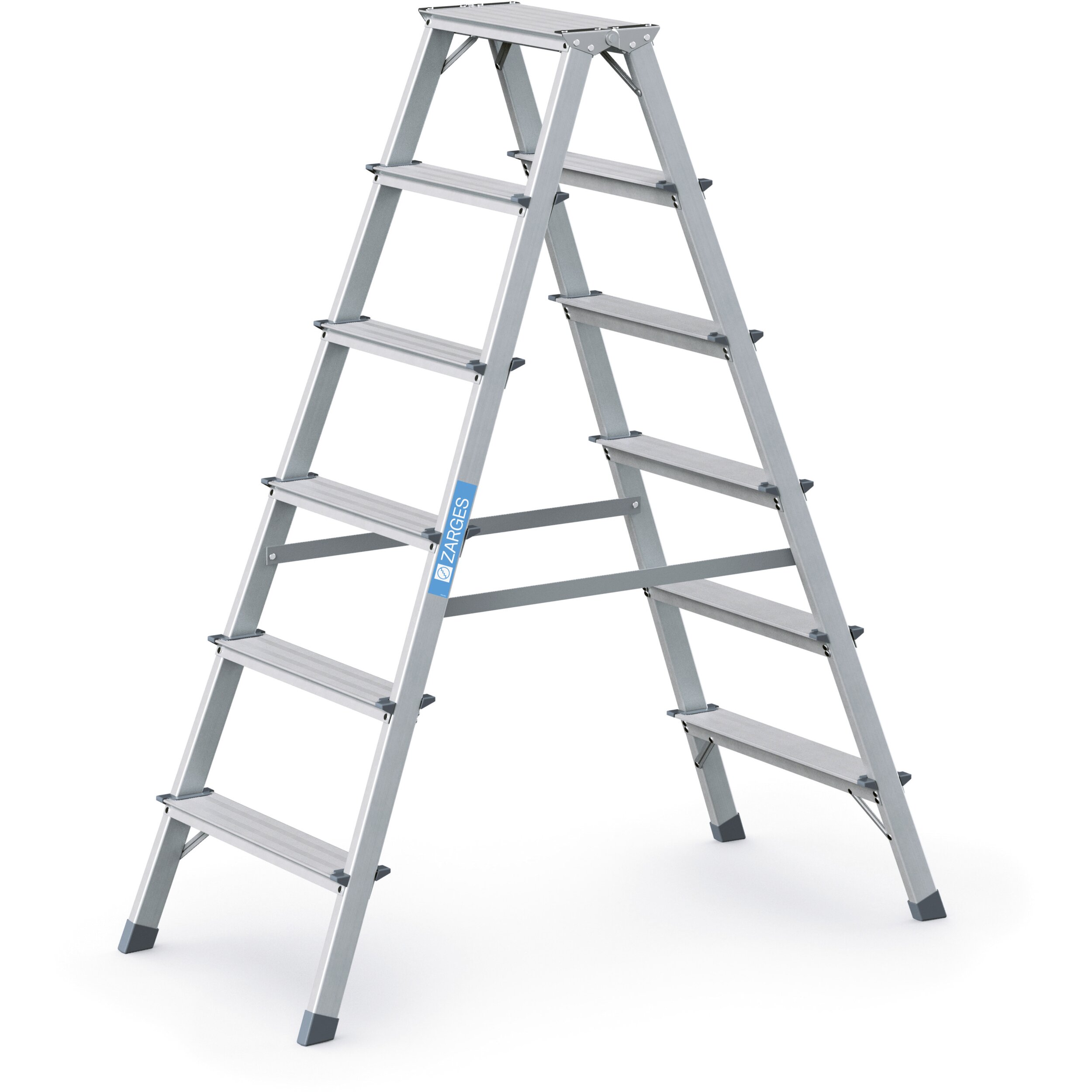

Scana B

Details

Flexible working and pleasant to handle due to the anodised stiles.

  • Tread depth 80 mm.
  • Abrasion-resistant, anodised stiles.
  • High-strength perlon belts prevent splay.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Pitch rung/tread 216 mm
Producttype Riveted stepladder with treads
Type rung/tread serrated
Number ladderparts 2
Load max. 150 kg
Tread depth 80 mm
Connection Stile-Rung riveted
Anti splay Belt strap
Coating anodised
Material Aluminium

Variants

Order number Base Number of treads Number of treads Overall base width Overall length Transport dimensions Vertical ladder height Weight Working height
44203 0,59 m × 0,43 m 3 2 × 3 0.43 m 0.71 m 710 mm × 430 mm × 160 mm 0.66 m 3 kg 2.2 m
44204 0,76 m × 0,45 m 4 2 × 4 0.45 m 0.94 m 940 mm × 460 mm × 160 mm 0.87 m 3.8 kg 2.45 m
44205 0,91 m × 0,48 m 5 2 × 5 0.48 m 1.17 m 1.170 mm × 480 mm × 160 mm 1.09 m 4.8 kg 2.65 m
44206 1,1 m × 0,5 m 6 2 × 6 0.5 m 1.4 m 1.400 mm × 500 mm × 160 mm 1.3 m 5.8 kg 2.85 m
44207 1,28 m × 0,52 m 7 2 × 7 0.52 m 1.66 m 1.630 mm × 530 mm × 160 mm 1.52 m 6.8 kg 3.1 m
