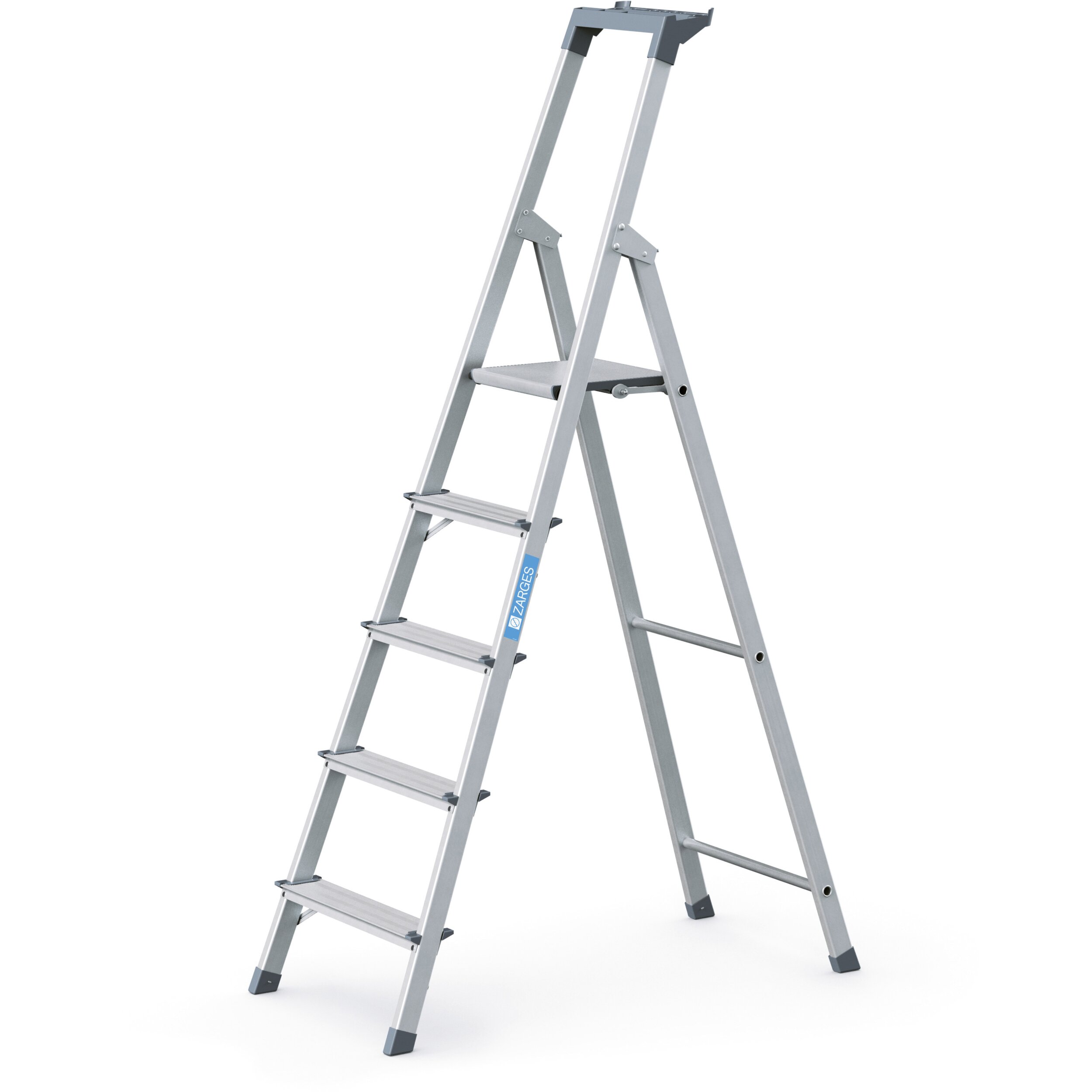

Scana S

Details

High degree of comfort while working due to abrasion-resistant, anodised stiles and large storage tray.

  • Tread depth 80 mm.
  • Abrasion-resistant, anodised stiles.
  • Large platform with anti-slip ribbing.
  • Practical tray with plenty of space for tools and small items.
  • High-strength Perlon belts prevent splay from 6 rungs.
  • The extruded aluminium sections give the platform optimum stability.
  • Two extruded section bridge raisers.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti splay Belt strap
Coating anodised
Connection Stile-Rung riveted
Tread depth 80 mm
Length as work platform 250 mm
Load max. 150 kg
Material Aluminium
Tray Plastic
Pitch rung/tread 216 mm
Producttype Riveted stepladder with treads
Type rung/tread serrated
Platform width 250 mm
Stile depth 40 mm
Stile depth 40 mm

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
44153 0,67 m × 0,41 m 3 0.41 m 1.36 m 0.59 m 1.370 mm × 410 mm × 110 mm 1.2 m 3 kg 2.6 m
44154 0,82 m × 0,43 m 4 0.43 m 1.59 m 0.81 m 1.600 mm × 440 mm × 110 mm 1.42 m 3.6 kg 2.8 m
44155 0,96 m × 0,46 m 5 0.46 m 1.82 m 1.03 m 1.830 mm × 460 mm × 110 mm 1.64 m 4.2 kg 3 m
44156 1,1 m × 0,48 m 6 0.48 m 2.05 m 1.24 m 2.060 mm × 490 mm × 110 mm 1.85 m 4.9 kg 3.25 m
44157 1,25 m × 0,51 m 7 0.51 m 2.29 m 1.47 m 2.290 mm × 510 mm × 110 mm 2.08 m 5.7 kg 3.5 m
44158 1,7 m × 0,53 m 8 0.53 m 2.52 m 1.7 m 2.520 mm × 530 mm × 110 mm 2.31 m 7.1 kg 3.7 m
