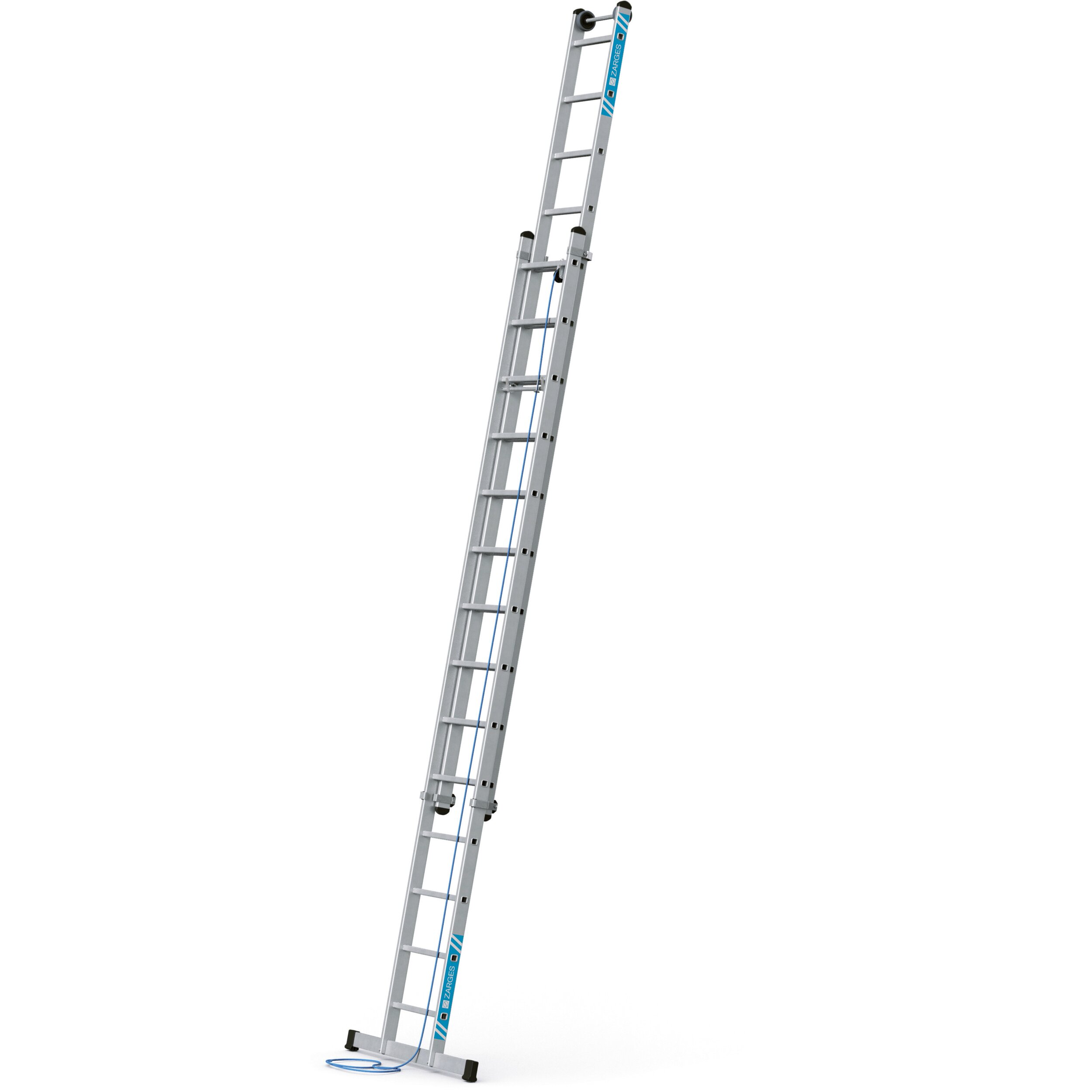

Skyline 2E

Details

Easy and convenient vertical height adjustment makes this ladder ideal for use to access very great heights.

Easy and convenient vertical height adjustment makes this ladder ideal for use to access very great heights.
Very easy and convenient rung-by-rung height adjustment in a 280 mm grid via synthetic rope and roller.
Locks securely thanks to automatic spring loaded pawls.
Top ladder section fitted with wall wheels.
Wheel assemblies with abrasion-resistant surfaces that will not damage the wall.
A high level of stability thanks to extra-wide bottom ladder (490 mm).
High strength, non-twist rung/stile connections.
Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

More Information
Material	Aluminium
Standards	EN 131 professional
Warranty	10 years
Load capacity	max. 150 kg
Coating	natural
Connection Stile-Rung	flanged
Tread depth	30 mm
Wheels	Rubber
Number ladderparts	2
Pitch rung/tread	270 mm
Producttype	Flanged rope-operated ladder with rungs, 2-section
Type rung/tread	serrated
External width of lower ladder	490 mm

Order number	Number of rungs	Number of rungs	Overall length, extended	Overall length, retracted	Stile depth	Stile depth	Transport dimensions	Weight	Working height
40206	14	2 × 14	7.21 m	4.14 m	85 mm	85mm	approx. 4.150 mm × approx. 520 mm × approx. 160 mm	22.821 kg	7.9 m
40207	16	2 × 16	8.33 m	4.7 m	98 mm	98mm	approx. 4.670 mm × approx. 520 mm × approx. 200 mm	24.723 kg	9 m
40208	18	2 × 18	9.13 m	5.2 m	98 mm	98mm	approx. 5.200 mm × approx. 520 mm × approx. 200 mm	30.929 kg	9.75 m
40209	20	2 × 20	10.25 m	5.74 m	114 mm	114mm	approx. 5.740 mm × approx. 520 mm × approx. 220 mm	33.832 kg	10.85 m
40210	24	2 × 24	12.22 m	6.9 m	114 mm	114mm	approx. 6.910 mm × approx. 520 mm × approx. 220 mm	42.641 kg	12.75 m
