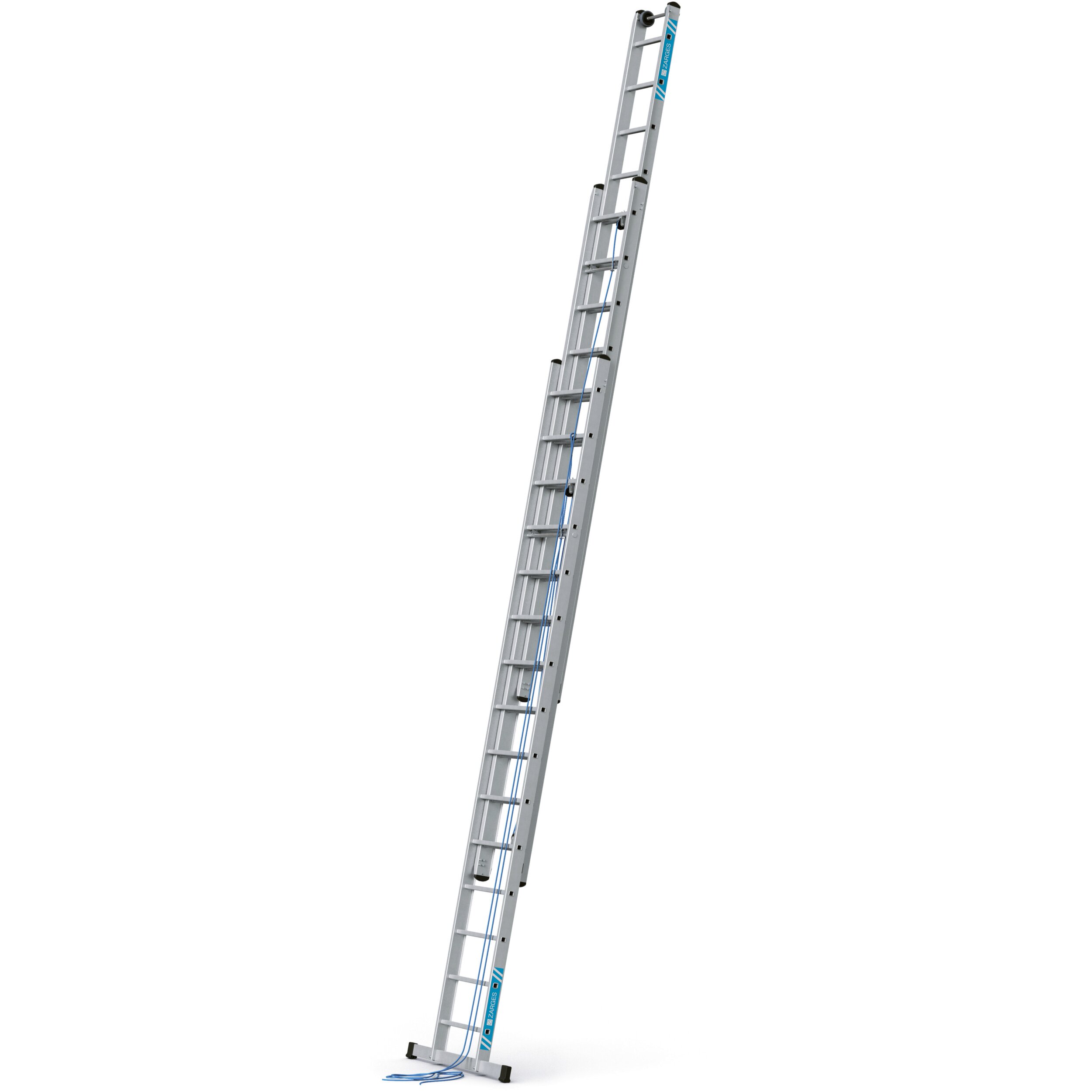

Skyline 3E

Details

When you need access to great heights: Optimised transport dimensions, working heights of up to 16.35 m with convenient height adjustment.

  • Two ropes so that centre and top sections can be adjusted separately.
  • Rung-by-rung height adjustment in a grid of 280 mm.
  • Wheel assemblies with abrasion-resistant surfaces that will not damage the wall.
  • Locks securely thanks to automatic spring loaded pawls.
  • The ladders with the Order Nos. 40448 and 40449 are equipped with 2 light alloy supports for easy erection and stabilisation. (Not to be used as free-standing ladders!)
  • Improved plastic guide.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • Rungs and stiles made from extruded aluminium sections.

Hints and special features

  • Available up to working height 16.35 m!
  • Complies with EN 131 Professional.

More Information

More Information
Wheels Rubber
Pitch rung/tread 270 mm
Ext. width 490 mm
Producttype Flanged rope-operated ladder with rungs, 3-section
Type rung/tread serrated
Number ladderparts 3
Load max. 150 kg
Tread depth 30 mm
Connection Stile-Rung flanged
Coating natural
Material Aluminium

Variants

Order number External width of lower ladder Number of rungs Number of rungs Overall length, extended Overall length, retracted Stile depth Transport dimensions Weight Working height
40446 560 mm 15 3 × 15 10.55 m 4.4 m 86mm / 98mm 4.420 mm × 565 mm × 228 mm 45 kg 11.15 m
40447 560 mm 18 3 × 18 12.55 m 5.25 m 86mm / 98mm 5.260 mm × 565 mm × 228 mm 53 kg 13.1 m
40448 590 mm 20 3 × 20 14.2 m 5.8 m 98mm / 98mm 5.820 mm × 718 mm × 242 mm 68 kg 14.7 m
40449 590 mm 22 3 × 22 15.9 m 6.4 m 98mm / 98mm 6.420 mm × 718 mm × 242 mm 74 kg 16.35 m
