Splay prevention (belt strap)

help-icon Help with option selection

How do I find the right spare part?

To select the right spare part, you need the exact length of the part you require for your ladder. This guide shows you how to measure the length of your spare part in order to select the right one.

  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.

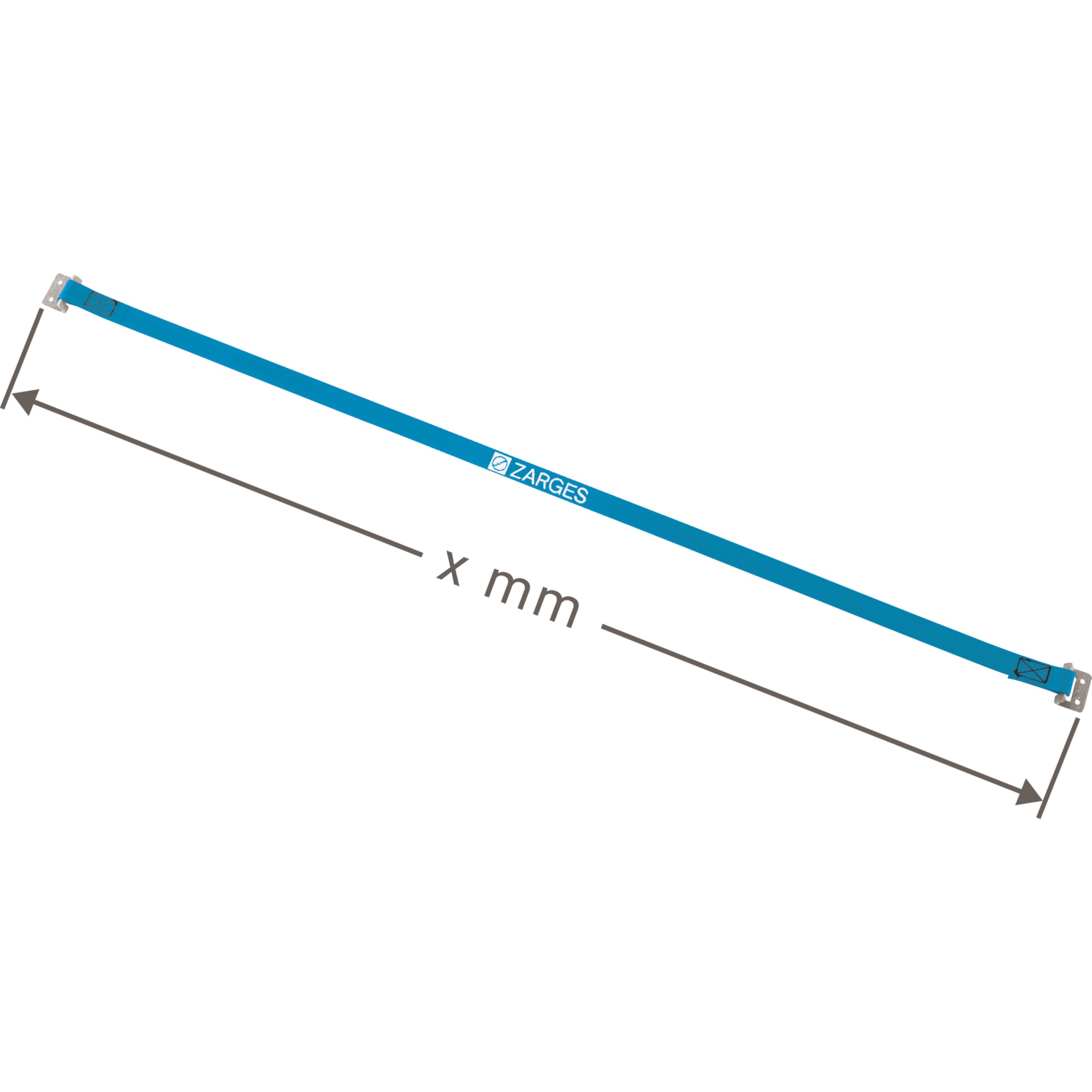

  1. Die Länge der Spreizsicherung ergibt sich aus dem Abstand zwischen den Bohrungen bzw dem äußeren Ende der Laschen.
  2. Messen sie z.B. mit einem Zollstock den Abstand zwischen den Mittelpunkten der Bohrungen bzw. den Laschen an den beiden Enden der Spreizsicherung
  3. Wähen sie die passende Größe der Spreizsicherung aus
  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.

Do you need help with your selection?

Contact our spare parts experts in customer service!

Details

  • With eye bolt.

More Information

More Information
Warranty Missing translation

Variants

Order number Length
827589 1200 mm
827590 1365 mm
827591 1680 mm
