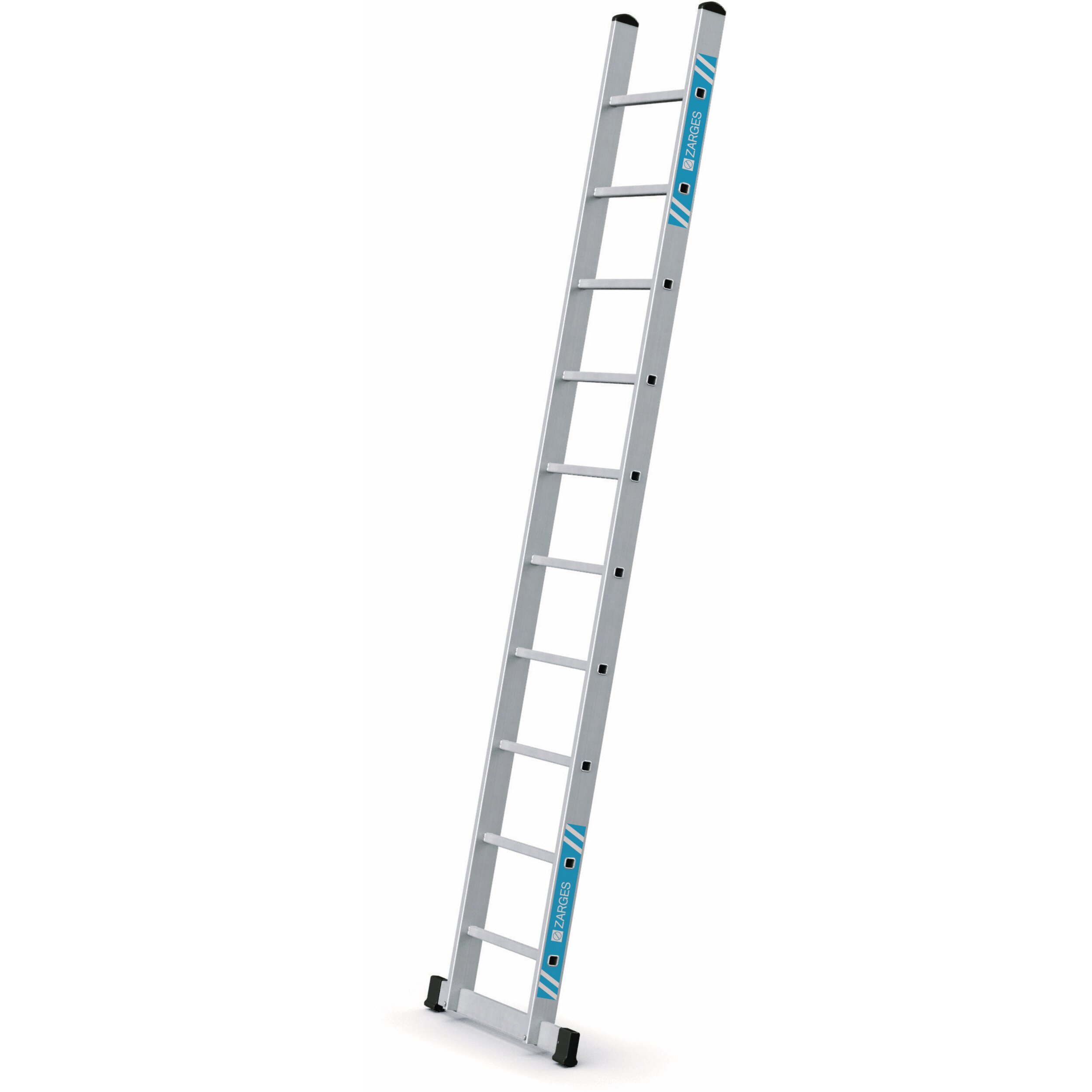

main product photo

Details

The flexible solution for a wide variety of uses: extra-wide ladder is comfortable to use and safe to stand on.

  • The flexible solution for a wide variety of uses: extra-wide ladder is comfortable to use and safe to stand on.
  • Very light but still extremely stable.
  • Also available as a shelf-ladder.
  • Rung depth: 30 mm
  • Outside width: 490 mm.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.
  • Rungs and stiles made from extruded aluminium sections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Flanged single ladder with rungs
Coating natural
Connection Stile-Rung flanged
Type rung/tread serrated
Pitch rung/tread 270 mm
Tread depth 30 mm
Warranty 10 years
Standards EN 131 professional
Load capacity max. 150 kg
Material Aluminium

Variants

Order number Number of rungs Overall length Stile depth Transport dimensions Weight Wide crosspiece Working height
41511 6 1.93 m 58 mm 1.930 mm × approx. 500 mm × 60 mm 3.7 kg 2.8 m
41512 8 2.49 m 58 mm 2.480 mm × approx. 500 mm × 60 mm 4.7 kg 3.35 m
41513 10 3.05 m 58 mm 3.040 mm × approx. 500 mm × 60 mm 7.2 kg 0.8 m 3.9 m
41514 12 3.61 m 58 mm 3.600 mm × approx. 500 mm × 60 mm 8.1 kg 0.89 m 4.4 m
41515 14 4.17 m 68 mm 4.160 mm × approx. 500 mm × 65 mm 9.3 kg 0.99 m 4.95 m
41516 16 4.73 m 68 mm 4.720 mm × approx. 500 mm × 70 mm 10.5 kg 0.99 m 5.5 m
41510 18 5.29 m 73 mm 5.300 mm × approx. 500 mm × 75 mm 11.9 kg 1.09 m 6.05 m
41517 20 5.86 m 73 mm 5.850 mm × approx. 500 mm × 75 mm 13.2 kg 1.09 m 6.6 m
41518 24 6.98 m 85 mm 6.980 mm × approx. 500 mm × 85 mm 16 kg 1.2 m 7.7 m
