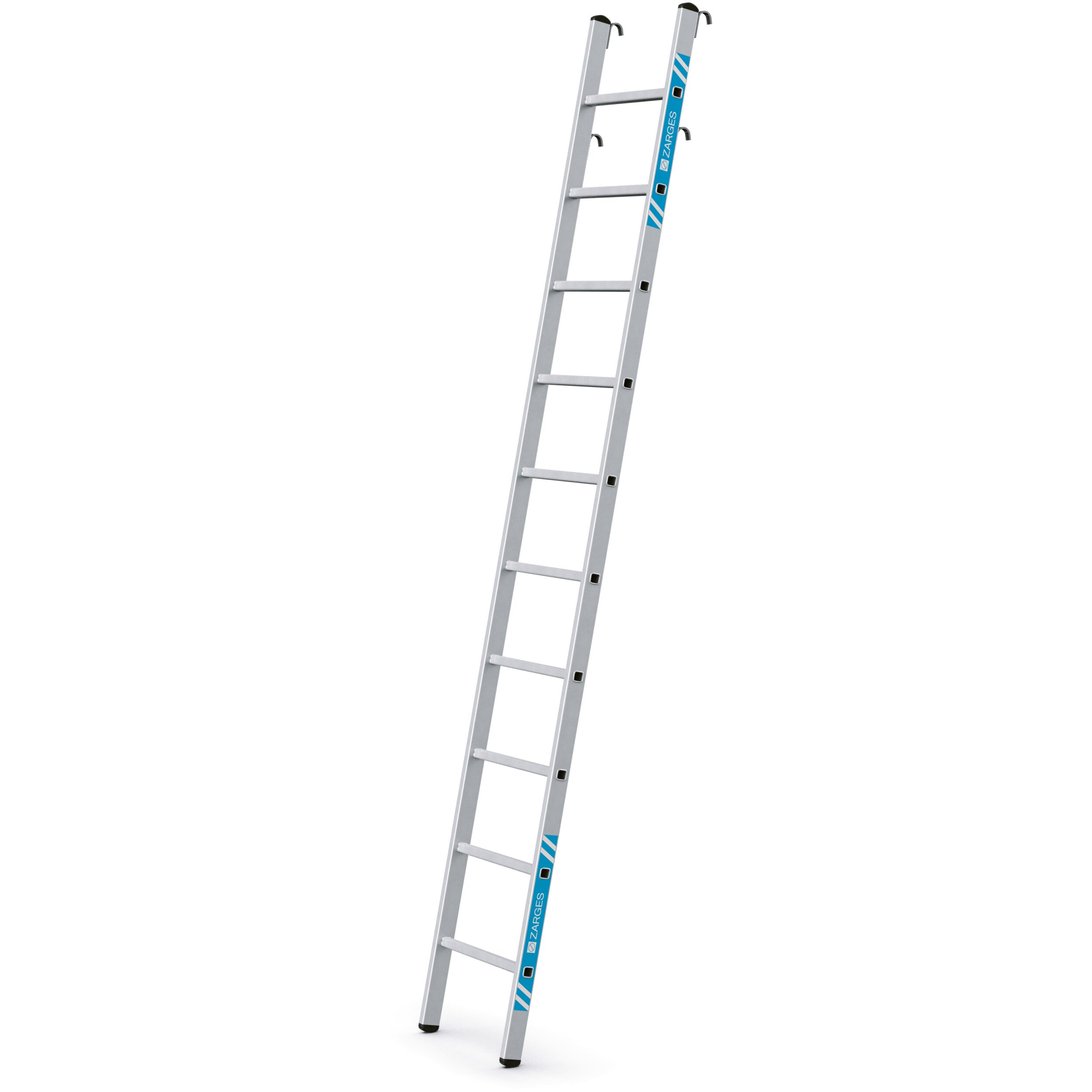

Stella LH

Details

These flexible ladders ensure safe access to shelving and can be adapted to the required height.

  • Hook-on shelf ladders have two hooks for the guide rail and additional hooks for vertical storage on the shelf.

Hints and special features

  • Please quote the distance between the floor and the top edge of the tubular rail when ordering!
  • Complies with EN 131 Professional.

More Information

More Information
Pitch rung/tread 270 mm
Ext. width 490 mm
Producttype Flanged hook-on shelf ladder with rungs
Type rung/tread serrated
Load max. 150 kg
Tread depth 30 mm
Connection Stile-Rung flanged
Coating natural
Material Aluminium

Variants

Order number Height hook on vertical Max height hook on vertical Min height hook on vertical Number of treads Working height
1041511 =1,33m-=1,86 m = 1.86 m = 1.33 m 6 2.8 m
1041512 =1,87m-=2,41 m = 2.41 m = 1.87 m 8 3.35 m
1041513 =2,42m-=2,95 m = 2.95 m = 2.42 m 10 3.9 m
1041514 =2,96m-=3,49 m = 3.49 m = 2.96 m 12 4.4 m
1041515 =3,5m-=4,03 m = 4.03 m = 3.5 m 14 4.95 m
