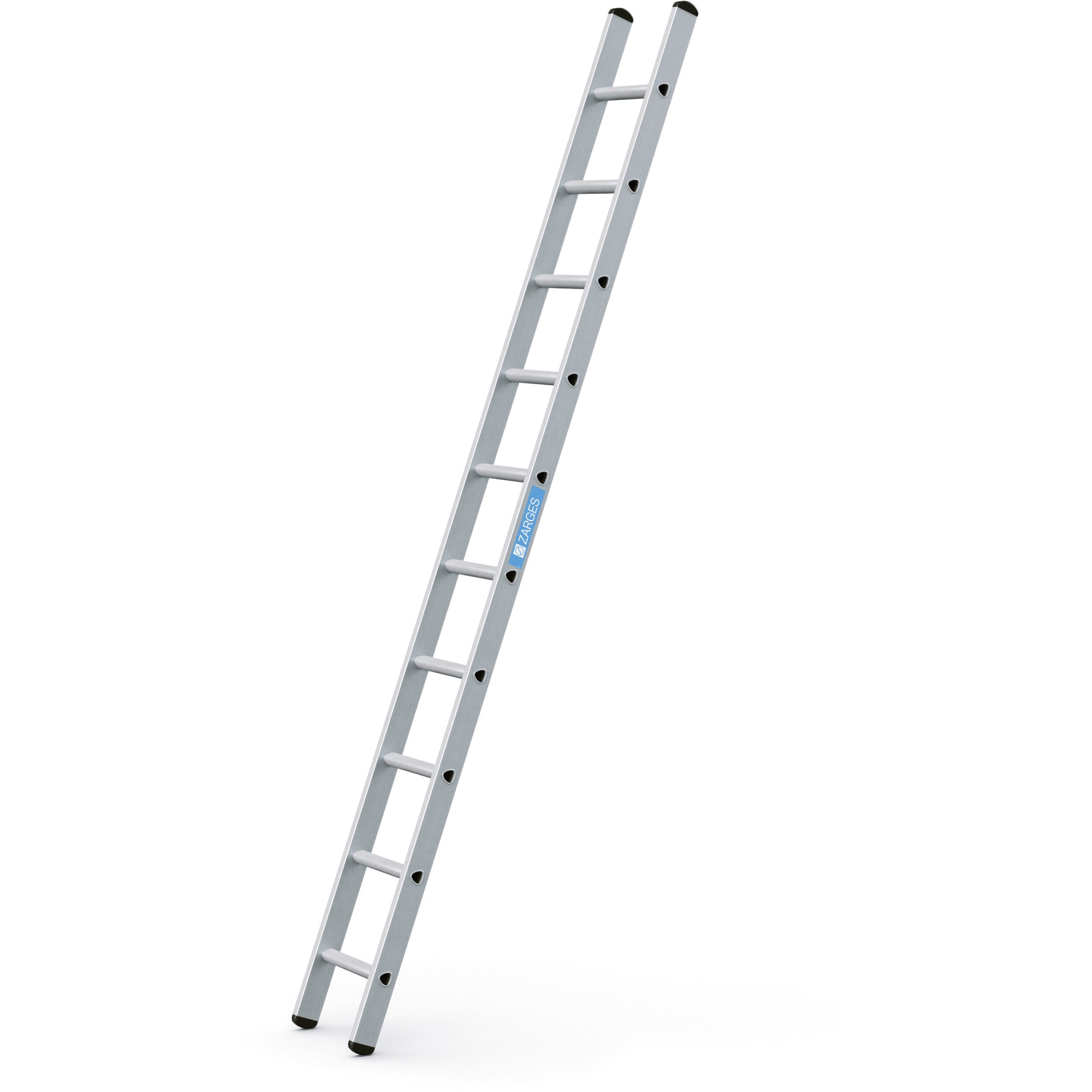

main product photo

Details

The inexpensive alternative for safe ascent and quick and flexible application.

  • The inexpensive alternative for safe ascent and quick and flexible application.
  • Robust extruded-section triangular rungs with step horizontal in working position.
  • Outside width: 350 mm.
  • Special rung design creates a broad step area.
  • Stiles made from extruded aluminium sections for maximum stability.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Flanged single ladder with rungs
Coating natural
Connection Stile-Rung flanged
Type rung/tread serrated
Pitch rung/tread 265 mm
Tread depth 38 mm
Warranty 10 years
Standards EN 131 professional
Load capacity max. 150 kg
Material Aluminium

Variants

Order number Number of rungs Overall length Stile depth Transport dimensions Weight Wide crosspiece Working height
44808 8 2.42 m 58 mm 2.420 mm × 360 mm × 60 mm 4.3 kg 3.3 m
44810 10 2.98 m 58 mm 2.980 mm × 360 mm × 60 mm 5.3 kg 3.85 m
44812 12 3.54 m 68 mm 3.540 mm × 360 mm × 70 mm 7.9 kg 0.79 m 4.4 m
44814 14 4.11 m 73 mm 4.110 mm × 360 mm × 75 mm 9.2 kg 0.79 m 4.9 m
44816 16 4.67 m 73 mm 4.660 mm × 360 mm × 75 mm 10.1 kg 0.89 m 5.45 m
44818 18 5.23 m 73 mm 5.220 mm × 360 mm × 75 mm 11.2 kg 0.89 m 6 m
44819 20 5.9 m 73 mm 5.780 mm × 360 mm × 75 mm 12.4 kg 0.99 m 6.55 m
