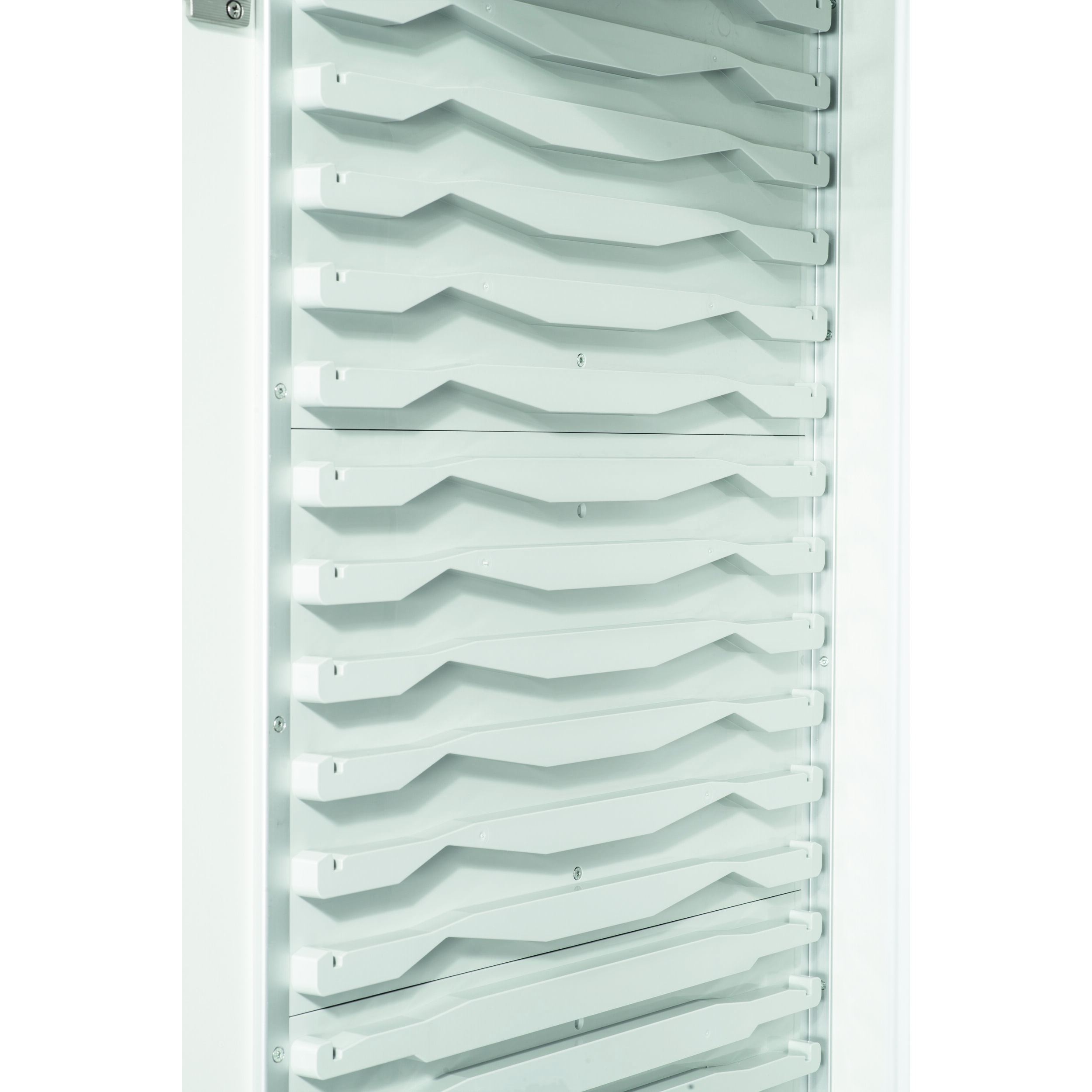

Support wall for tall cupboard with tilt function
- ABS, grey-white.
- Designed for safety stop system.
- Injection moulding.
- One version, identical on left / right.
- Load capacity up to 20 kg per insert level.
- Hygienic border between support wall and cupboard body.
- Installation with and without holding/angle strip.
- Minimal assembly and disassembly work required if secured with holding and angle strips.
- With 6 ribs/support beads per segment.
- Tilt function to approx. 25°.
364 mm × 319 mm
564 mm × 319 mm
